SD FM DIPOLO 87 ANTENA SIRIO DIPOLO AVIACION 87- 194 MHZ

 !! ANTENA DIPOLO PARA RADIO COMERCIAL Y AVIACION !!

DP100 FM DIPOLO 87  ANTENA SIRIO PARA RADIO COMERCIAL Y AVIACION 87- 194 MHZ
Base station antenna, Mono-band


Unity-gain, Horizontal or Vertical polarization
Directional (if Horizontal) or Omnidirectional (if Vertical)
High power handling capability
Made of aluminium alloy 6063 T-832

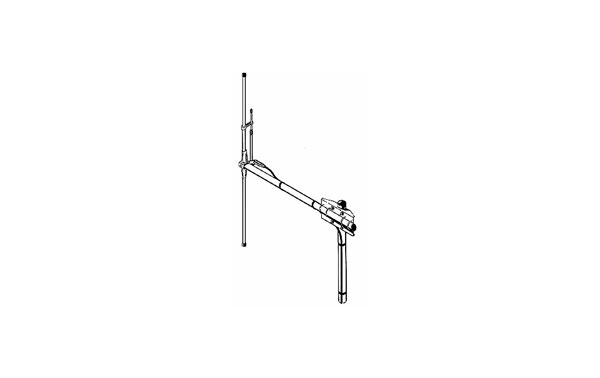

Type: 1/2? dipole
Frequency range: 87...194 MHz tunable by cutting
Impedance: 50 unbalanced
Radiation (H-plane): directional (if Horizontal) or omnidirectional (if vertical)
Radiation angle: 0°
Polarization: horizontal or vertical

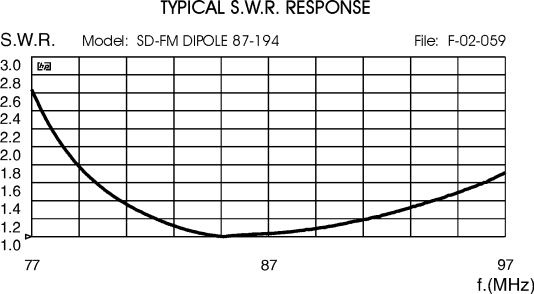

Bandwidth @ SWR 1.5: = 14.9 MHz @ 87 MHz
SWR @ res. freq.: = 1.2
Max. power: 300 Watts
Feed system / position: Gamma match / Center
Connection: UHF-female
