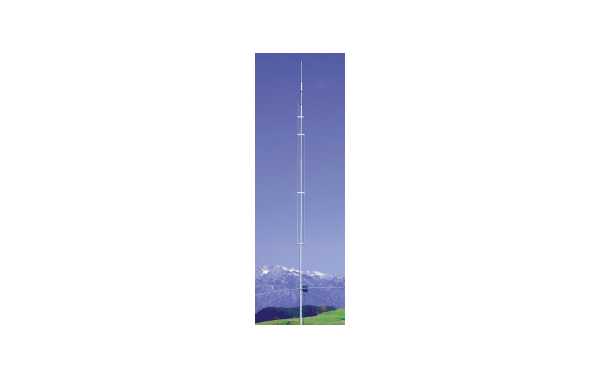

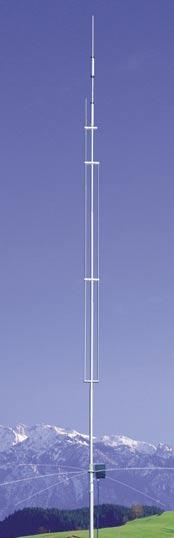

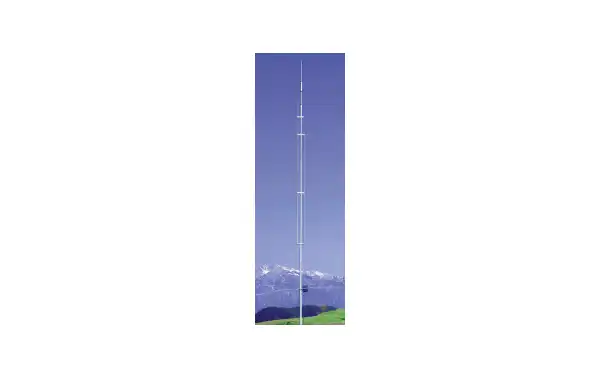

R6000 ANTENA CUSHCRAFT SIN RADIALES
 R6000 CUSHCRAFT Frequency, meters VERTICAL 6-10-12-15-17-20
SIN RADIALES
2:1 bandwidth, KHz 10m >1700
2:1 bandwidth, KHz 12m >100
2:1 bandwidth, KHz 15m >450
2:1 bandwidth, KHz 17m >100
2:1 bandwidth, KHz 20 >300
2:1 bandwidth, KHz 6m >1300
Frequency, meters 6,10,12,15,17,20
Gain, dBi 3
Height, ft(m) 19(5.8)
Horizontal rad, deg 360
Mast size range, in.(cm) 1.5-1.75(3.8-4.4)
Power, Watts output 1500
Radiation angle, deg. 16
VSWR minimum 1.2:1 typical
Weight, lb(kg) 12.5(5.6)
Wind Surface Area ft(m) sq 1.5(.14)
|
| Model |
R6000 | | 2:1 bandwidth, KHz 10m |
>1700 | | 2:1 bandwidth, KHz 12m |
>100 | | 2:1 bandwidth, KHz 15m |
>450 | | 2:1 bandwidth, KHz 17m |
>100 | | 2:1 bandwidth, KHz 20 |
>300 | | 2:1 bandwidth, KHz 6m |
>1300 | | Frequency, meters |
6,10,12,15,17,20 | | Gain, dBi |
3 | | Height, ft(m) |
19(5.8) | | Horizontal rad, deg |
360 | | Mast size range, in.(cm) |
1.5-1.75(3.8-4.4) | | Power, Watts output |
1500 | | Radiation angle, deg. |
16 | | VSWR minimum |
1.2:1 typical | | Weight, lb(kg) |
12.5(5.6) | | Wind Surface Area ft(m) sq |
1.5(.14) |
|
|
R6000 CUSHCRAFT Frequency, meters VERTICAL 6-10-12-15-17-20 SIN RADIALES
Frequency, meters 6,10,12,15,17,20
Gain, dBi 3
Height, ft(m) 19(5.8)
Horizontal rad, deg 360
Mast size range, in.(cm) 1.5-1.75(3.8-4.4)
Power, Watts output 1500
Radiation angle, deg. 16
VSWR minimum 1.2:1 typical
Weight, lb(kg) 12.5(5.6)
Wind Surface Area ft(m) sq 1.5(.14)
| | |
|
