PALSTAR LA-1K ANTENNA 1000 Watt HF AMPLIFIER

PALSTAR LA-1K ANTENNA 1000 Watt HF AMPLIFIER more Manufacturer: palstar Reference LA1K

available
4.900,50 incl. VAT
4.050,00€ w/o VAT
Delivery price from 30,25€

PALSTAR LA-1K

PALSTAR LA-1K REMOTE AUTOMATIC ANTENNA TUNER, Power 300 W. Covers 1.8 to 30 MHz

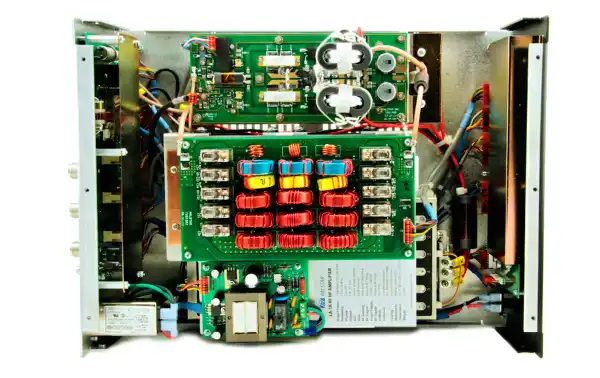

The LA-1K is a RF Sensing Dual HF LDMOS 1000 Watt amplifier. While the LA-1K will work with a wide variety of tuners and transceivers, Palstar custom-designed the LA-1K to work as the perfect match for our very popular HF-AUTO autotuner.

PALSTAR LA-1K Antenna amplifier

Kit Contents
  • 1 PALSTAR LA-1K Antenna amplifier

PALSTAR LA-1K Antenna amplifier

Features

  • Frequency Range: 1.8 to 54 MHz
  • SSB Power: Power levels up to 1000W
  • CW Mode: 1000 Watts CW ICAS
  • FM/RTTY: 500 watts
  • AM: 275 watts

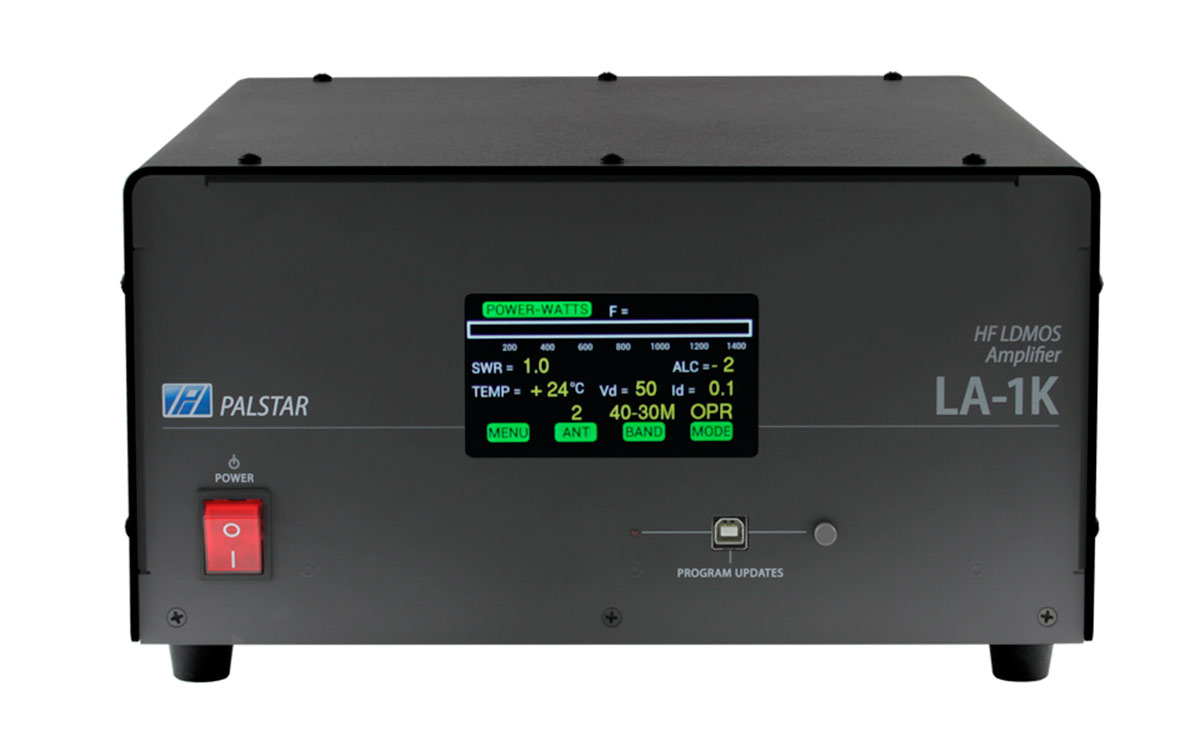

  • Display: Color TFT touch screen
  • Chassis: .090 ga. aluminium
  • Top cover: .090 ga. aluminium powder coated
  • Input Drive Level: 45W - 55W (All Bands)

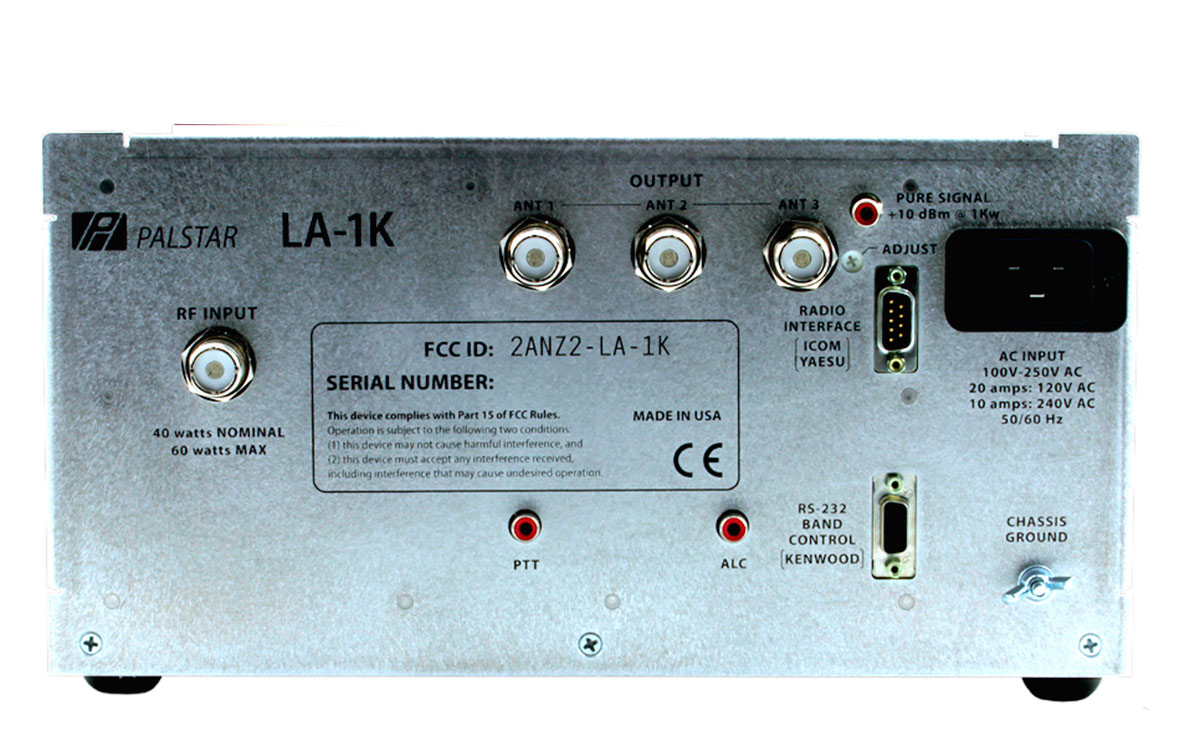

  • Output: 3 x RF SO-239 or Type N
  • Auto-Protect: SWR/Short Circuit/Over Temp
  • Cooling: Variable Speed Fans (3 speed)
  • Dimensions (approx.): 324 x 159 x 419 mm
  • Weight (approx.): 12,5 kg
