RIGEXPERT AA-35

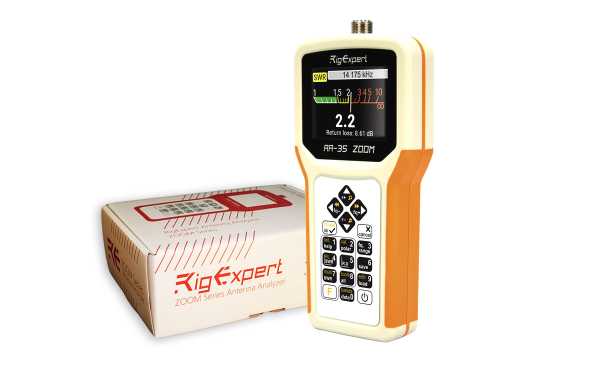

AA-35 ZOOM RIGEXPERT Antenna analyzer from 60 Khz to 35 Mhz. The AA-35 ZOOM is a self-calibrating portable analyzer designed to measure SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60 kHz to 35 MHz. , with an incredible ZOOM capacity. The following tasks are easily accomplished using this parser:
Quick check of an antenna
Tuning an antenna to resonance
Download manuals, software - Here -
kit content
- 1 AA-35
- 1 cover
- 1 USB Cable
- 2 Alkaline Batteries
Features
- Frequency range: 0.06 to 35MHz
- Frequency input: 1 kHz resolution
- Measurement for 25, 50, 75, 100 ohm systems
- SWR measurement range: 1 to 100 in numeric modes, 1 to 10 in graphic modes
- SWR display: numeric or analog indicator
- R and X range: 0-10000, -10000-10000 in numeric modes, 0-1000, -1000-1000 in graphic modes
- Non-volatile memory:
- – 10 slots for saving measurement results
- RF output :
- – Connector type: UHF (SO-239)
- – Output signal shape: square, 0.06 to 35 MHz
- – Output power: 13 dBm (into 50 ohm load)
- Feeding:
- – Two 1.5 V alkaline batteries, type AA
- – Max. 4 hours of continuous measurement, max. 2 days in standby mode when using fully charged batteries:
- – When the analyzer is connected to a PC or a DC adapter with a USB socket, it draws power from these sources
- Interface:
- – 320×240 color TFT screen
- – 6×3 keys on the waterproof keyboard
- – Multilingual menus and help screens
- – USB connection to a personal computer
- Dimensions: 103mm x 207mm x 37mm (4.1in x 8.1in x 1.4in)v
- Operating temperature: 0-40 °C (32?104 °F)
- Weight: 310 g (10.9 oz) without batteries
