RIGEXPERT AA-55
AA-55 ZOOM RIGEXPERT Antenna analyzer from 60 Khz to 55 Mhz. The analyzer is designed to measure SWR (standing wave ratio), return loss, cable loss, as well as other parameters of cable and antenna systems in the range of 60 kHz to 55 MHz. The built-in ZOOM capability makes graphical measurements are especially effective.
The built-in ZOOM capability makes graphical measurements especially effective. The following tasks are easily accomplished using this analyzer:
- Quick check of an antenna
- Tuning an antenna to resonance
- Comparison of the characteristics of an antenna before and after a specific event (rain, hurricane, etc.)
- Make coaxial stubs or measure their parameters
- Cable testing and fault location, measurement of cable losses and characteristic impedance
- Measurement of capacitance or inductance of reactive loads
Software download - see here -

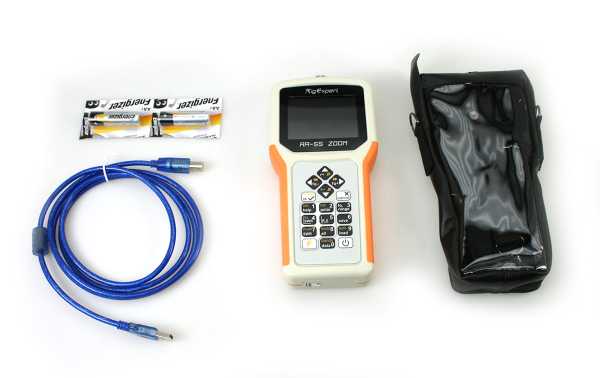

kit content
- 1 AA-55
- 1 cover
- 1 USB cable
- 2 Alkaline Batteries
Features
- Frequency range: 0.06 to 55MHz
- Frequency input: 1 kHz resolution
- Measurement for 25, 50, 75, 100, 150, 200, 300, 450 and 600 ohm systems
- SWR measurement range: 1 to 100 in numeric modes, 1 to 10 in graphic modes
- SWR display: numeric or analog indicator
- R and X range: 0-10000, -10000-10000 in numeric modes, 0-1000, -1000-1000 in graphic modes
- Display modes:
- – SWR at single or multiple frequencies
- – SWR, return loss, R, X, Z, L, C and phase angle at a single frequency
- – SWR graph, 100 points
- – Graph R, X, 100 points
- – Smith chart, 100 points
- – Return loss graph, 100 points
- – Cable tools (loss and characteristic impedance)
- Optional open short load calibration.
- Non-volatile memory:
- – 10 slots for saving measurement results
- RF output :
- – Connector type: UHF (SO-239)
- – Output signal shape: square, 0.06 to 55 MHz
- – Output power: 13 dBm (into 50 ohm load)
- Feeding:
- – Two 1.5 V alkaline batteries, type AA
- – Max. 4 hours of continuous measurement, max. 2 days in standby mode when using fully charged batteries:
- – When the analyzer is connected to a PC or a DC adapter with a USB socket, it draws power from these sources
- Interface:
- – 320×240 color TFT screen
- – 6×3 keys on the waterproof keyboard
- – Multilingual menus and help screens
- – USB connection to a personal computer
- Dimensions: 103mm x 207mm x 37mm (4.1in x 8.1in x 1.4in)v
- Operating temperature: 0?40 °C (32?104 °F)
- Weight: 310 g (10.9 oz) without batteries
