AT200 PRO II Automatic Antenna Coupler 1.8-54 Mhz with memories
The AT-200PRO II is designed for all equipment that can operate with 200 W of power. Many of these machines already have an internal automatic coupler moreManufacturer:ldgReference AT200PROII
AT200 PRO II Automatic Antenna Coupler from 1.8 to 54 Mhz with memories
AT200 PRO II Acoplador de Antena automático de 1.8 a
54 Mhz con memorias
The AT 200PRO II is designed for all the equipment that allows to operate with 200W of power. Many of these equipment already have an internal automatic coupling, but this one has a limited operating margin. The AT200P PRO II will solve this margin.
El AT 200PRO II esta pensado para todos los equipos
que permiten operar con 200W de potencia. Muchos de
estos equipos ya disponen de un acoplador automático
interno, pero este tiene un margen de operación
limitado. Con el AT200P PRO II solucionará este
margen.
This coupler supports up to 250W in SSB and CW from 1.8 to 30 Mhz and 100W in the 6M band (50 Mhz). You can use it with any type of antenna.
Kit contents
Con este acoplador se admite hasta 250W en SSB y CW
de 1.8 a 30 Mhz y 100W en la banda de 6M (50 Mhz).
Puede utilizarlo con cualquier tipo de antena.
Coupling
Contenido del kit
Acoplador
We want to emphasize that with this coupler you will have 1600 3D memories. Thanks to this characteristic, the adjustment and frequency data used are memorized and when the coupler is used again at a frequency used the setting is almost instantaneous
Features
Power range 5 to 250W (100W 50Mhz)
Setting range from 6 to 1000 Ohms 16 to 150 Ohms 6M
Frequency range from 1.8 to 54 Mhz
Privacy Policy
LED Bar Meter, Output Power and ROE
Setting time between 0.5 and 6 seconds (less than 0.1 second if it is a memory)
2 ANTENNAS

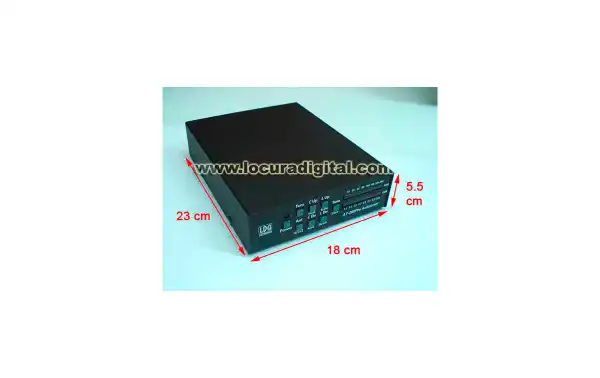

Dimensions: 23 x 18 x 5.5 cm
Consumption 750mA, during adjustment
Medidor de barra de LED ,potencia de salida y
ROE
Tiempo de ajuste entre 0.5 y 6 segundos
(menor de 0.1 segundo si es una memoria)
This coupler supports up to 250W in SSB and CW from 1.8 to 30 Mhz and 100W in the 6M band (50 Mhz). You can use it with any type of antenna.
