MAT-180-H Kenwood / Icom Automatic Tuner HF1.8-54 Mhz120 watts

MAT-180-H Kenwood / Icom Automatic HF Tuner1.8-54 Mhz120 watts The mAT-180H provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or pretty much any ant more Manufacturer: mat-tuner Reference MAT180H

available
205,69 incl. VAT
169,99€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

MAT-180H

MAT-180-H KENWOOD Automatic Tuner HF1.8-54 Mhz 120 watts
The mAT-180H provides automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or pretty much any antenna powered by coaxial cable. It will match an astonishing range of antennas and impedances, far greater than some other tuners you've considered, including the built-in tuners on many radios.
The mAT-180H is an automatic antenna tuner specially designed for modern ICOM and KENWOOD HF transceivers. You have two control cables to choose from: mAT-CI and mAT-CK. They are suitable for ICOM and KENWOOD transceivers respectively. With the corresponding control cables, tuners for the corresponding transceivers can be used. MAT-180H standard accessories only contain ICOM mAT-CI control cable, if you need mAT-CK, please buy more. MAT-180-HKENWOOD Automatic Tuner HF1.8-54 Mhz 120 watts.

English manual PDF see here

Cables needed to connect different brands of Equipment: Kenwood and Icom
Not included

MAT-CI cable

MAT-CK cable



mat-180-h kenwood /icom sintonizador automático hf1,8-54 mhz120 watios

Kit contents
  • 1 MAT-180H coupler
  • English Manual

mat-180-h kenwood /icom sintonizador automático hf1,8-54 mhz120 watios

mat-180-h kenwood /icom sintonizador automático hf1,8-54 mhz120 watios

Characteristics

  • Frequencies 1.8 to 54 MHz
  • Valid for, Kenwood; Icom
  • Impedance 5 to 1500 ohms
  • Power 0.1 to 120 watts SSB and 100 watts 50Mhz

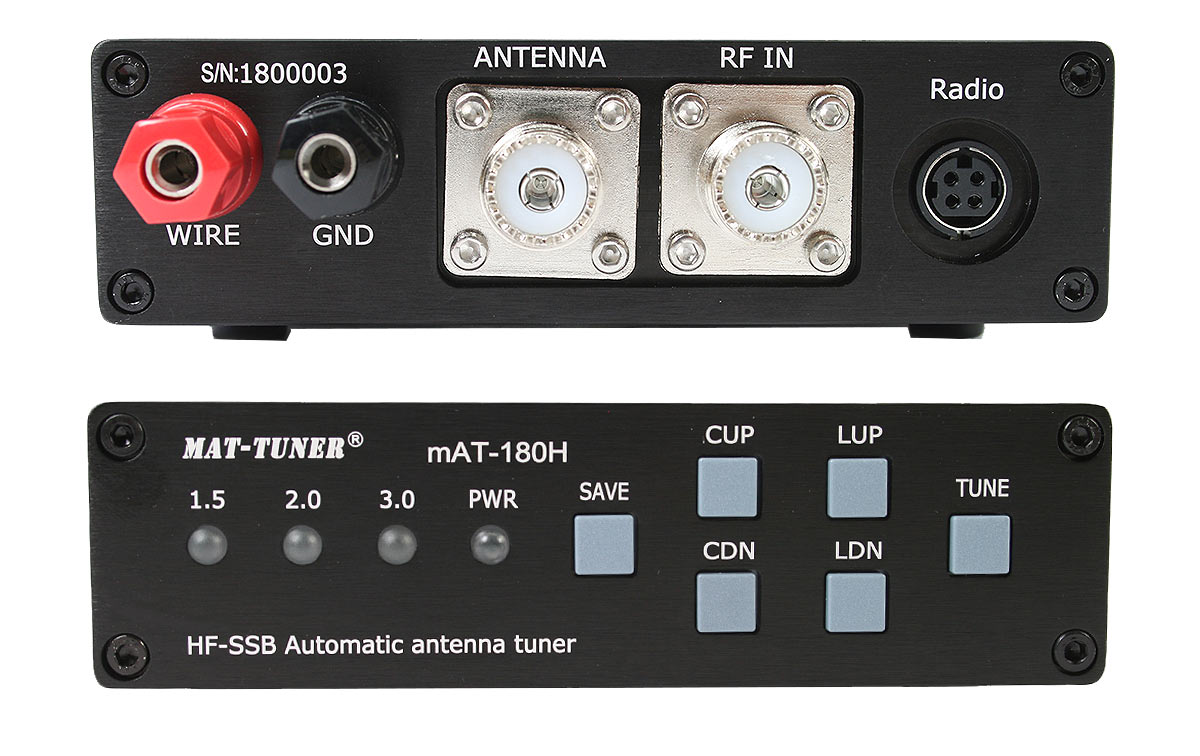

  • 2 x PL female coupler connector
  • 4-pin coupler connector
  • MATCI / MATCK compatible cables
  • Metallic box
  • Measures 20 x 13 x 4 cm
  • Weight 1 kg.

Accessories 1/1
