The MAT-30 can operate within the range of 1.8 MHz to 54MHz, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or pretty much any antenna powered by coaxial cable. It will match an astonishing range of antennas and impedances, moreManufacturer:mat-tunerReference MAT30YAESU
The MAT-30 is an automatic tuner designed for use with modern YAESU transceivers. Works with some YAESU transceivers that support a YAESU FC-30, FC-40, or FC-50 tuner; a partial list of compatible drives includes: FT-100, FT-857D, FT-897D, FT-450D, FT-891, FT-950, FT-991, FT-991A, FTDX-3000. The operation is the same as the YAESU tuner method, which is simple and convenient.
The mAT-30 can operate within the range of 1.8 MHz to 54MHz, at power levels up to 120 watts. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an astonishing range of antennas and impedances, far greater than some other tuners I have considered, including the tuners built into many radios. The mAT-30 has 16,000 frequency memories. When tuning at or near a previously tuned frequency, the mAT-30 uses "Memory Tune" to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner performs a complete tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this way, the mAT-30 "learns" as it is used, adapting to bands and frequencies as it goes.
Currently the mAT-30 is not compatible with the FT-817/818. If you operate them, you can choose another tuner - mAT-10, which is specially designed for QRP transceivers and is perfectly compatible with FT-817/818 and other QRP devices.
The mAT-30 connects to the transceiver via its CAT/LINEAR connector to control the tuning cycle, the Tune button on the transceiver controls the tuner. The CAT/LINEAR connector also powers the tuner, so no external power supply is required. Tuning is done when the TUNE button on the front of the transceiver is pressed and held for one second. English Manual PDF see here
kit content

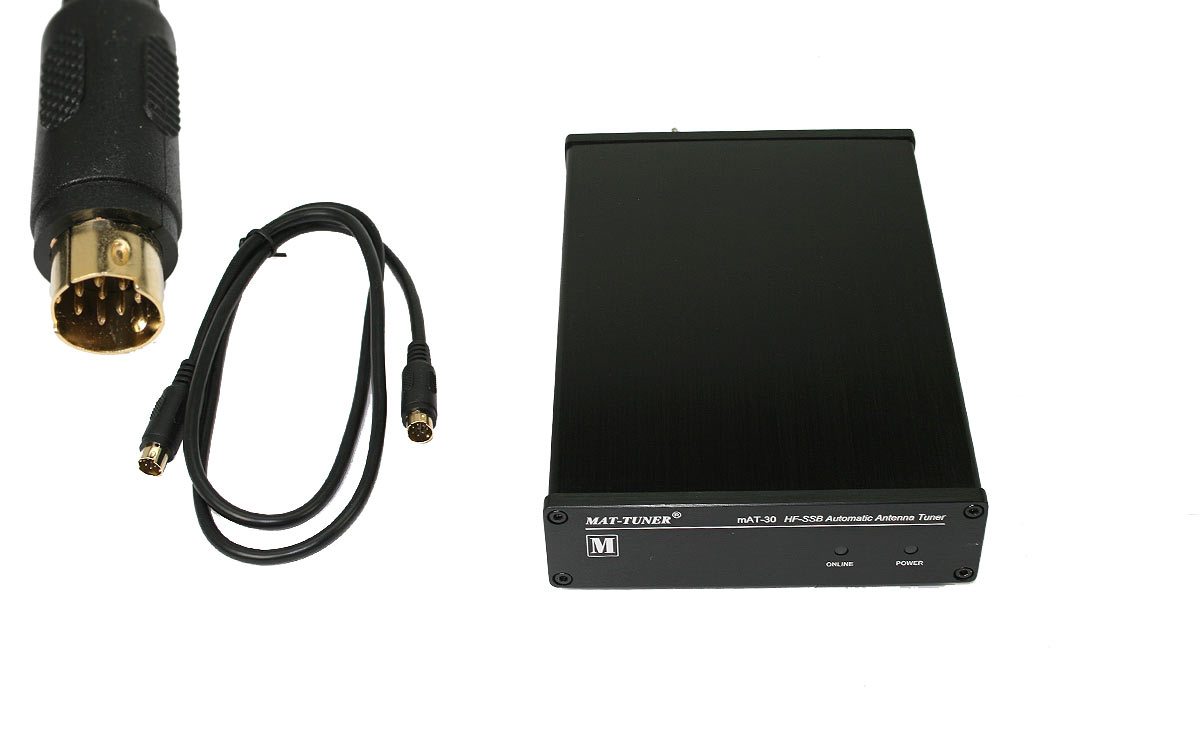

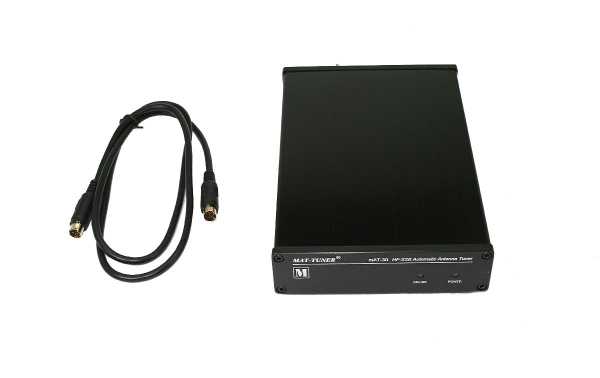

1 MAT-30 coupler
1 CAT Cable for Yaesu
Characteristics
Frequencies 1.8 to 54 MHz
Valid for Yaseu
Impedance 5 to 1500 ohmins
For dipoles, verticals or any coaxial antenna.
Tuning time: 0.1 to 5 seconds
Power 0.1 to 120 watts SSB and 100 watts 50Mhz

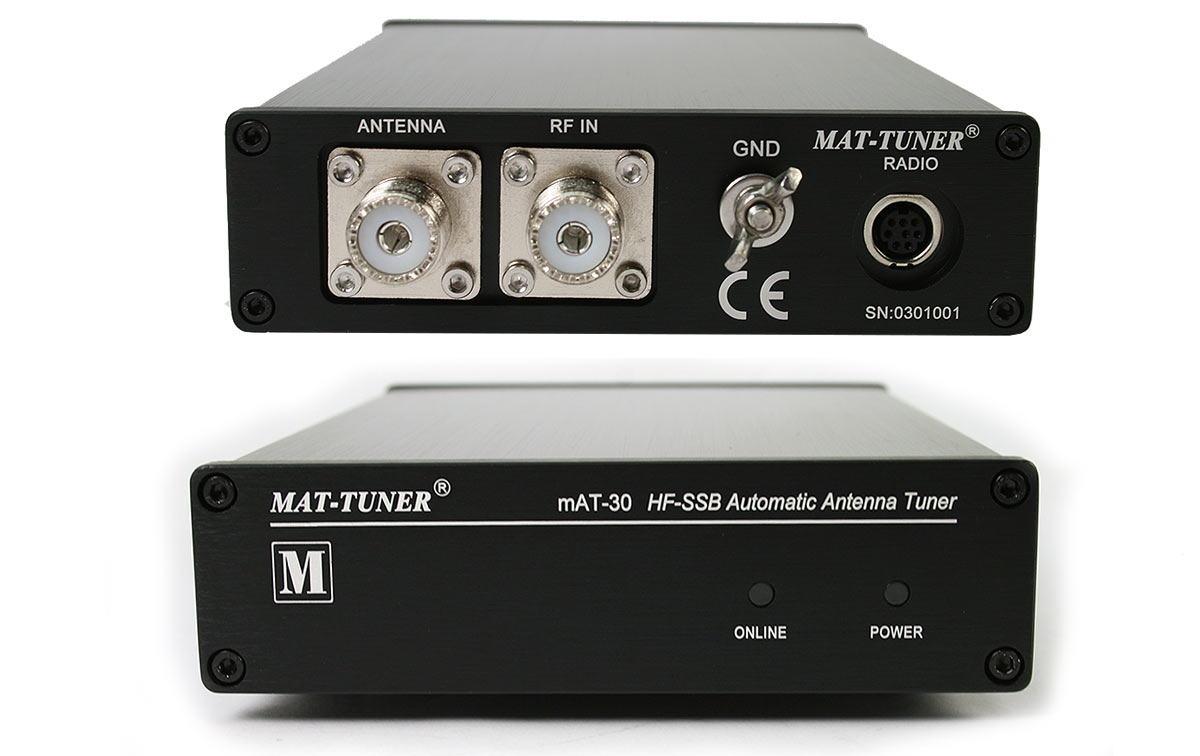

2 x PL female coupler connector
8 pin mini DIM coupler and transmitter connector
MAT30 cable
Metallic box

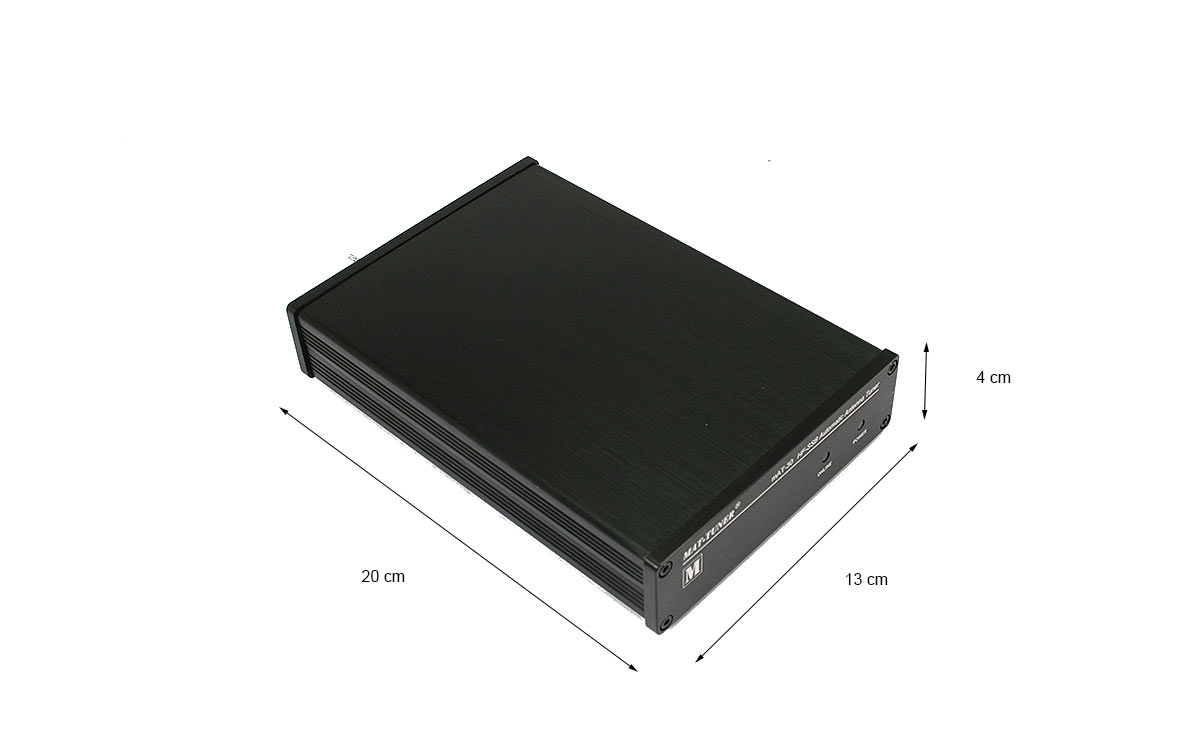

Measures 20 x 13 x 4 cm
Weight 800 gr.
MAT-30 CONFIGURATION With Yaesu Equipment
FT-857 / 857D 1. Hold down the [FUNC] key for one second to activate Menu mode. 2. Rotate the SELECT knob to recall No-001 [EXT MENU] menu mode, then rotate the DIAL to change the setting to "ON" to enable extended menu mode. 3. Rotate the SELECT knob to recall menu mode No-020 [CAT / LIN / TUN]. The default setting of this menu is "CAT". Rotate the DIAL to change the setting to "TUNER". 4. Hold down the [FUNC] key for one second to save the new setting and exit, then turn off the transceiver. 5. According to the operation manual, connect the data and RF connection between the tuner and the transmitter. Do not configure the mAT-30 and FT-857D before changing the menu mode, item No-020 [CAT / LIN / TUN]. 6. Hold down the [FUNC] key for one second to activate Menu mode. 7. Rotate the SELECT knob to return to menu mode No-085 [TUNER / ATAS]. The default setting of this menu is "OFF". Rotate the DIAL to change the setting to "TUNER". 8. Hold down the [FUNC] key for one second to save the new setting and exit. FT-897 / 897D 1. Hold down the [F] key for one second to activate Menu mode. 2. Rotate the MEM / VFO CH knob to recall Menu Mode No-001 [EXT MENU], then rotate the DIAL to change the setting to "ON" to enable Extended Menu Mode. 3. Rotate the MEM / VFO CH knob to recall No-020 [CAT / LIN / TUN] menu mode. The default setting of this menu is "CAT". Rotate the DIAL to change the setting to "TUNER". 4. Hold down the [F] key for one second to save the new setting and exit, then turn off the transceiver. 5. According to the operation manual, connect the data and RF connection between the tuner and the transmitter. Do not configure the mAT-30 and FT-897 before changing the menu mode, item No-020 [CAT / LIN / TUN]. 6. Hold down the [F] key for one second to activate Menu mode. 7. Rotate the MEM / VFO CH knob to recall No-085 [TUNER / ATAS] menu mode. The default setting of this menu is "OFF". Rotate the DIAL to change the setting to "TUNER". 8. Hold down the [F] key for one second to save the new setting and exit. FT-450D SETTING 1. Hold down the [F] button for one second to enter menu mode. The "MENU" icon will appear on the screen. 2. Rotate the [DSP / SEL] knob to select the TUNER menu item. 3. Press the [DSP / SEL] knob to enable this selected menu item. 4. Rotate the [DSP / SEL] knob to change the setting to "EXT ATU". 5. Hold down the [F] button for one second to return to normal operation.
OPERATION 1. Briefly press the [TUNE] button to activate the automatic antenna tuner. The "TUNER" icon will appear on the screen. If the frequency of the transceiver is outside the amateur band, the "TUNER" icon will not appear. 2. Hold down the [TUNE] button for one second to start auto tuning. The transmitter will turn on and the "TUNER" icon will flash while tuning is in progress. 3. Tuning will automatically stop when a low SWR is achieved. You can hold down the [TUNE] button for one second while tuning is in progress to cancel auto tuning. 4. To deactivate the automatic antenna tuner, briefly press the [TUNE] button again. 4. To disable the Automatic Antenna Tuner, press the [TUNE] button briefly again.
