MAT-705-PLUS

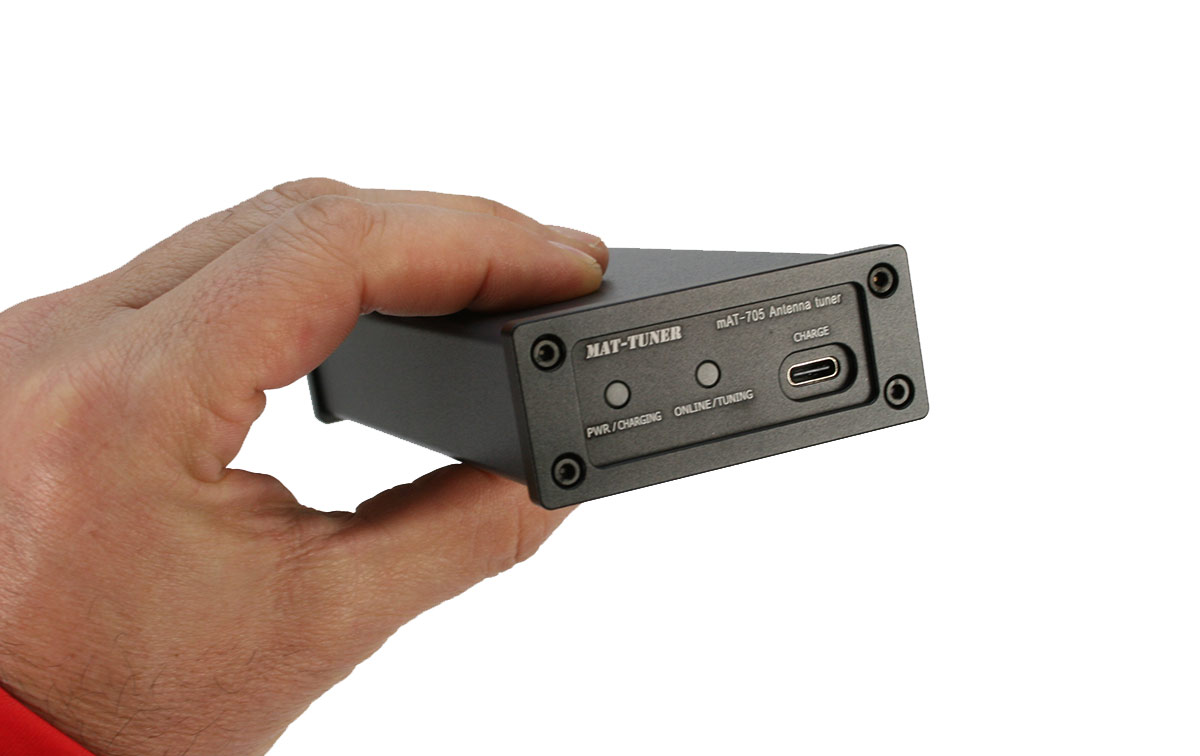

The MAT-705 PLUS is a compact tuner specially designed for the ICOM IC-705. It connects to the IC-705 via the control cable. The user can tune in very easily through the station's function menu. The tuner is presented in an elegant aluminum case with laser-engraved information. It is very suitable for portable use by users.
This new version of the MAT-705 tuner MAT-705 PLUS works with two built-in lithium batteries, unlike its predecessor used alkaline batteries. In addition, the user no longer has to open the tuner casing to replace the battery. The MAT-705 PLUS uses the USB Type-C charging port, so users can easily use the mobile phone charger to charge the tuner.
This new version of the MAT-705 eliminates the mechanical power switch. Its power supply is automatically controlled by the transmitter. After connecting the control cable, it will turn on and off together with the transmitter, no need to turn on and off manually.
The MAT-705 PLUS operates within the 1.8 MHz to 54 MHz range from 160 to 6 meters. It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna. It will match an amazing range of antennas and impedances, far greater than some other tuners I've considered, including tuners built into many transceivers.
The MAT-705 PLUS has 16,000 frequency memories. When tuning at or near a previously tuned frequency, the MAT-705 PLUS uses its memory to recall the previous tuning parameters in a fraction of a second. If no memorized settings are available, the tuner performs a complete tuning cycle, storing the parameters for memory recall on subsequent tuning cycles on that frequency. In this way, the MAT-705 PLUS "learns" as it is used, adapting to bands and frequencies as it goes.
The MAT-705 PLUS is really a sensational and "exquisite" complement to get the best out of the ICOM IC-705!!!!!

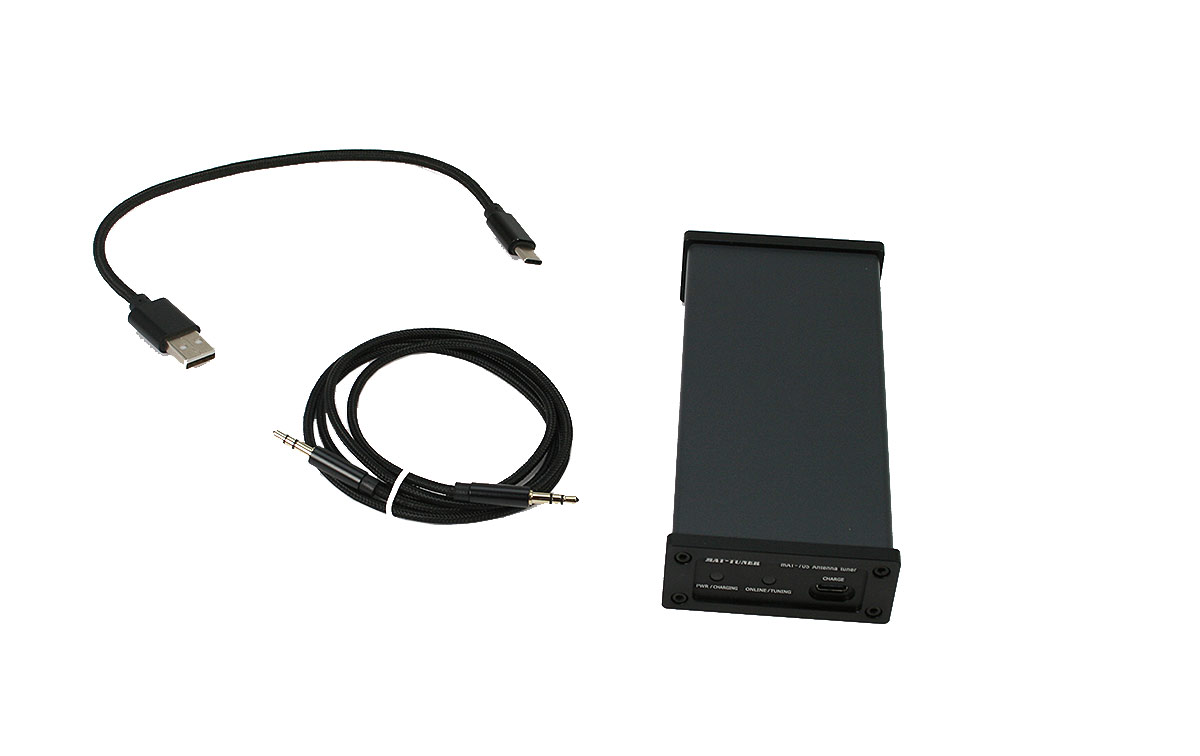

kit content
- 1 MAT-705-PLUS Coupler
- 1 USB-micro USB cable
- 1 Connection cable
