MFJ998RT MFJ acoplador automatico remoto 1.5KW, 1.8-30 MHZ
MFJ998RT MFJ acoplador automatico remoto potencia maxima1.5KW, cobertura1.8-30 MHZ El MFJ-998RT iguala instantáneamente las impedancias de 12-1600 ohmios usando los algoritmos IntelliTune, AdaptiveSearch y InstantRecall exclusivos de MFJ con más de
Description MFJ MFJ998RT
MFJ-998-RT

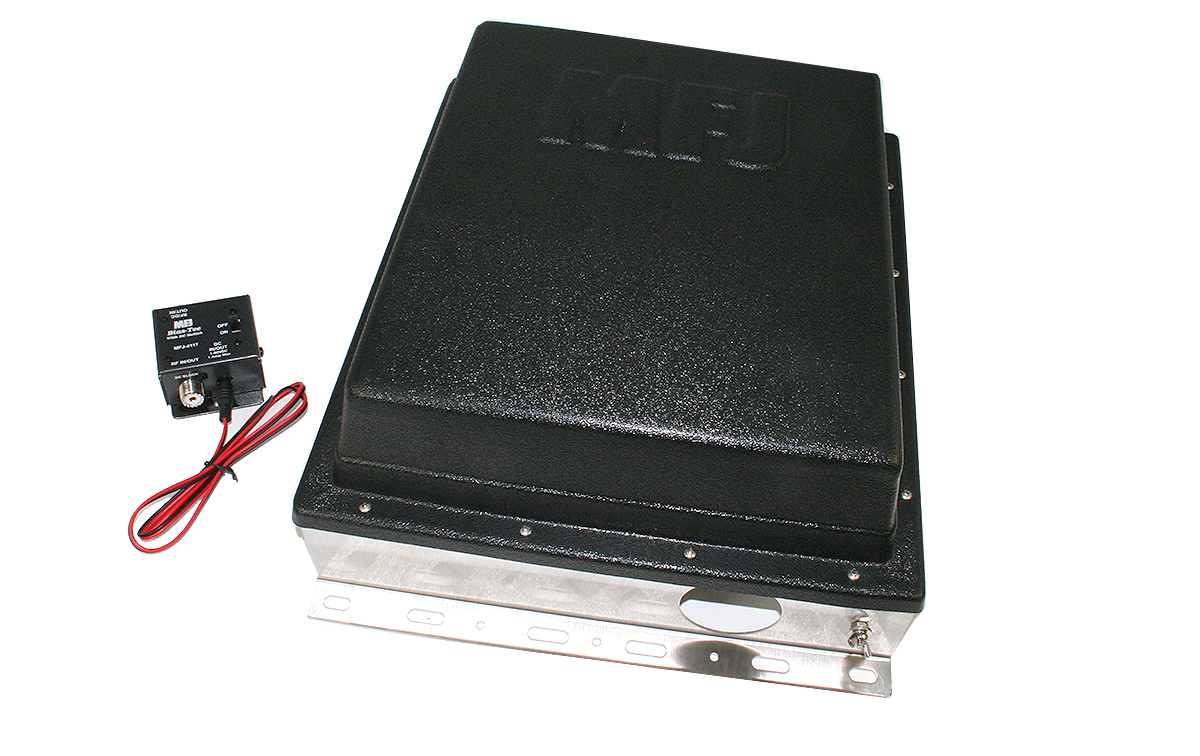

MFJ998RT MFJ remote automatic coupler ideal for any wire or unbalanced antenna, maximum power1.5KW, coverage1.8-30MHZ
The MFJ-998RT instantly matches impedances of 12-1600 ohms using MFJ's exclusive IntelliTune, AdaptiveSearch and InstantRecall algorithms with more than 20,000 virtual antenna memories.
Includes an MFJ-4117:
DC power injector. You can send up to 1 Amp DC (up to 50 Volts DC) directly through your existing coaxial cable to power your DC device. This device is for 1 to 60 MHz and has SO-239 connectors. The size is 2.75 x 2.5 x 1.25 inches. Unlike the MFJ-4116, there is an on-off switch on the MFJ-4117.
English manual see << here >>
- 1 MFJ-998-RT
- 1 MFJ-4117
features
- Frequencies 1.8 to 30 MHz
- Continuous coverage
- Power input minimum 5 watts
- Impedance from 12 to 1600 ohms
- Maximum output power 1500 SSB / CW
- Input voltage 12 volts.
- Adjustable ROE between 0.5 and 1.5

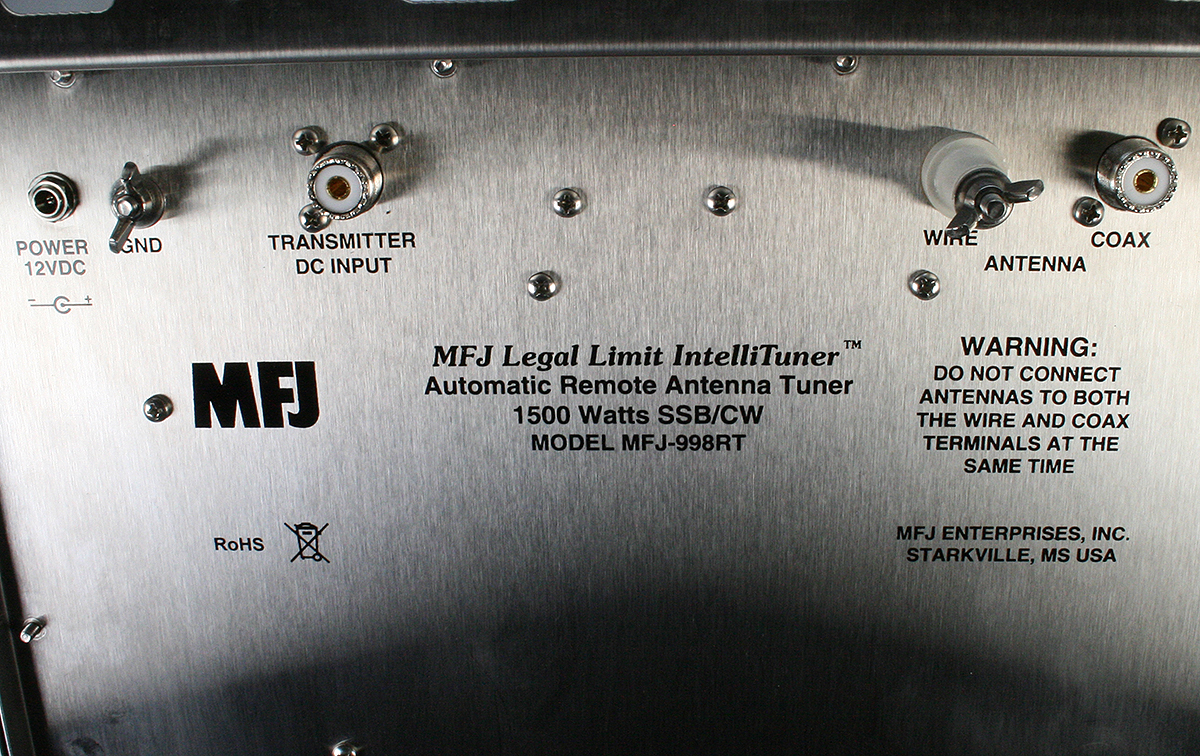

- Antenna connectors 2 x PL female
- Measures 340 x 160 x 450 mm
- Weight 4.5 kg.
