BIDATONG 693 Special Cable H-155 Length 10 mts + PL base + Female FME

BIDATONG 693. Assembled by the prestigious German company BIDATONG. It is a complete antenna base equipped with 10 meters of special H-155 very low loss cable with angled DV connector for connection to the PL base of SIRIO N-PL. The H-155 adem cable more Manufacturer: bidatong Reference BIDATONG693 EAN 4250158725904

Make the first review

bidatong
BIDATONG 693 Special Cable H-155 Length 10 mts + PL base + Female FME BIDATONG 693 Special Cable H-155 Length 10 mts + PL base + Female FME BIDATONG 693 Special Cable H-155 Length 10 mts + PL base + Female FME BIDATONG 693 Special Cable H-155 Length 10 mts + PL base + Female FME BIDATONG 693 Special Cable H-155 Length 10 mts + PL base + Female FME
BIDATONG 693 Special Cable H-155 Length 10 mts + PL base + Female FME
available
37,87€ incl. VAT
31,30€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

BIDATON-693

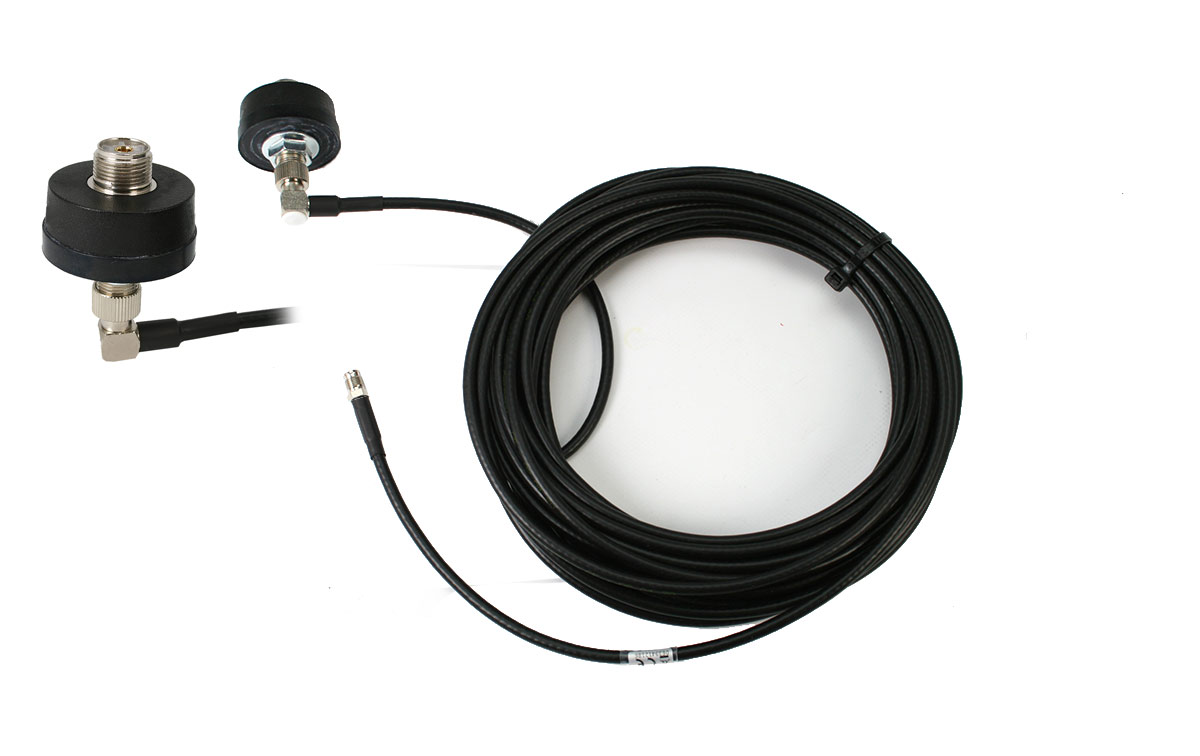

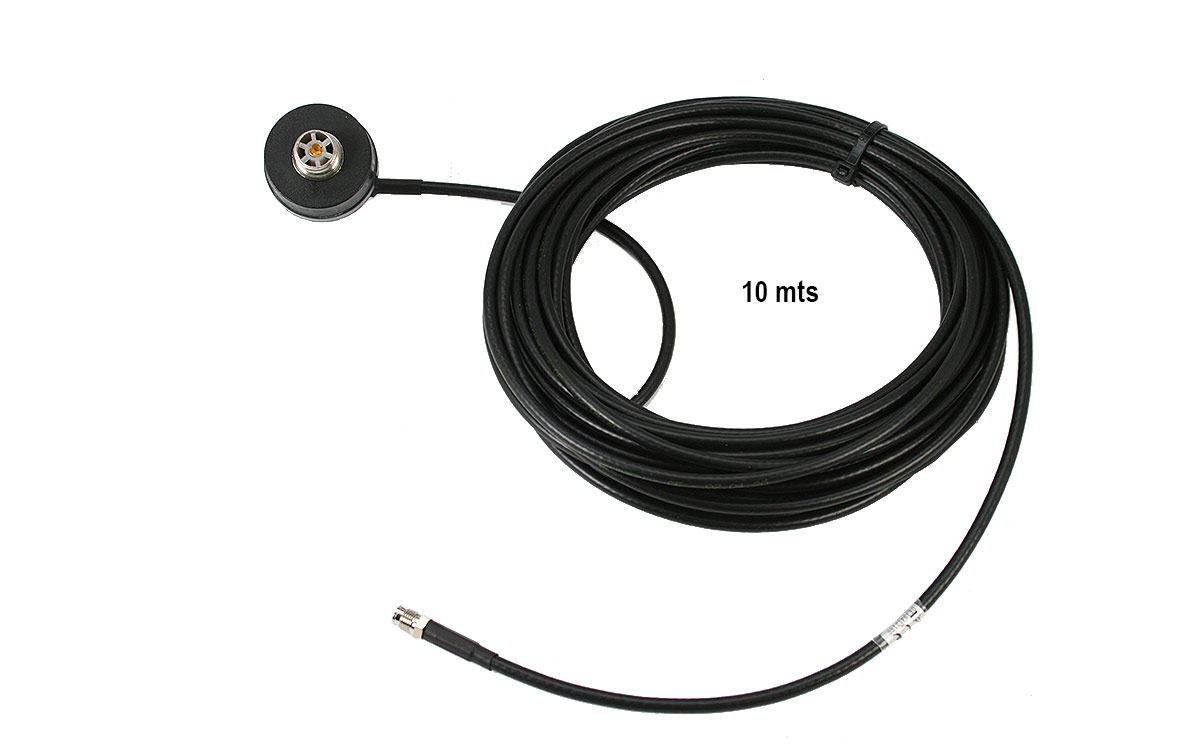

BIDATONG 693. Assembled by the prestigious German company BIDATONG. It is a complete antenna base equipped with 10 meters of special H-155 very low loss cable with angled DV connector for connection to the PL base of SIRIO N-PL. The H-155 cable, in addition to the DV connector for the base, mounts at its end an FME Female connector to be able to install and pass the cable through small spaces. By adapting the FME-PL adapter to the female FME connector, we will immediately have a PL connector ready to be connected to any station that uses a female PL (SO239) in its chassis. Due to its characteristics of very low loss in high frequencies, the H-155 cable makes this complete base set suitable for installing any type of antenna and with its 10 meters of cable, it can be mounted on large industrial vehicles, trucks, coaches, etc. ..

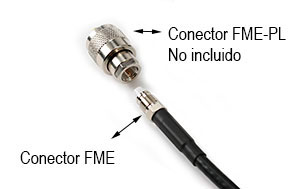

You may be interested in the FME to PL adapter connector not included see here

BIDATONG 688 Cable Especia H-155 Longitud 10 mts base PL FME Hembra


Coaxial Cable H155 low loss CU./low attenuation
Cable Coaxial H155 baja perdida CU./baja atenuación

FEATURES
Dielectric: PE injected gas
Mesh: tinned copper
Outer diameter ø 5 mm
Impedance: 50 Ohm.
Capacitance: 82 pF / m
Speed ratio: 0.81

BIDATONG 693 Cable Especia H-155 Longitud 10 mts base PL FME Hembra

Kit contents
  • 1 PL female base
  • 10 meters cable H-155
  • 1 Connector put on FME Female cable
  • 1 Cap covers base

bidatong 689 cable rg 58 longitud 10 mts base pl fme hembra

bidatong 689 cable rg 58 longitud 10 mts base pl fme hembra

Characteristics

  • Base PL female
  • Cable H-115
  • Cable length 10 meters
  • Female FME connector
  • DV Base Connector

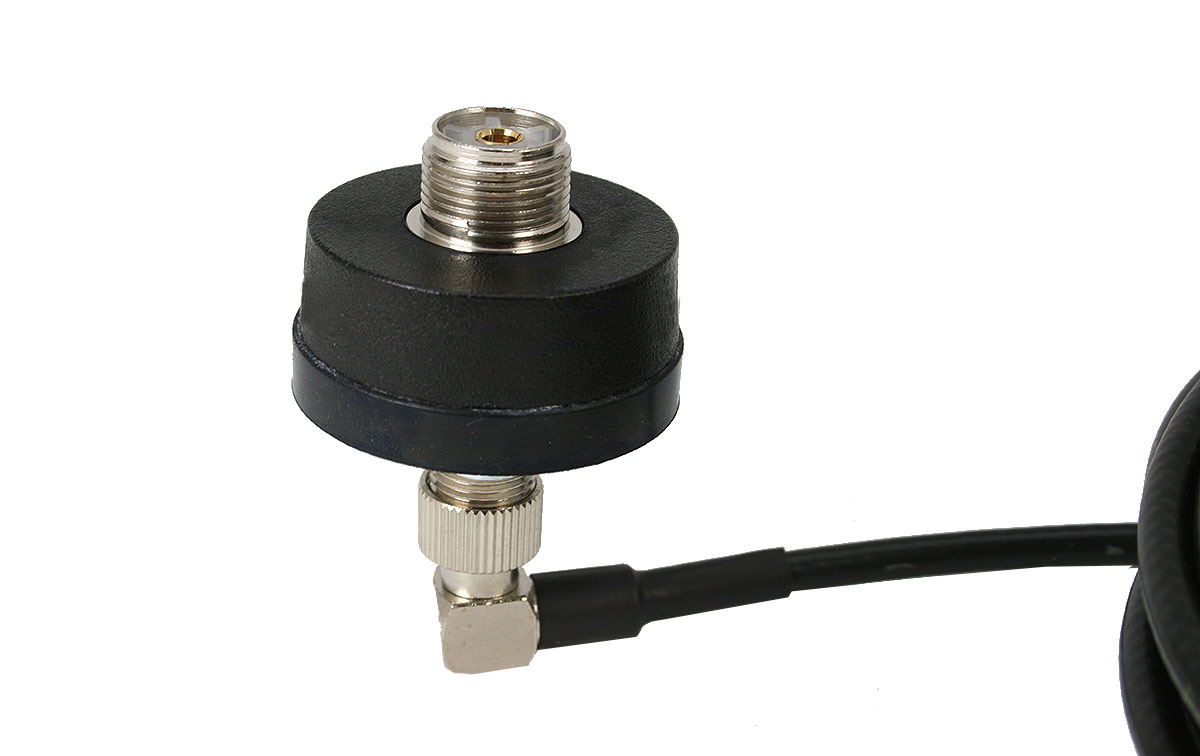

  • BASE MEASURES
  • Hole in sheet 12.5 mm
  • Plastic lid
  • Outer nut 16 mm
  • Base diameter 40 mm
  • PL female antenna connector
  • CONDV antenna cable connector
  • Base weight 65 gr.
  • Total weight 420 gr. base cable connector
