REF. AIRCELL7. OF 50 OHMS STOPS AERIALS OF RADIOCOMUNICACION CABLE OF VERY SHORT LOST. --- SALE BY METRES

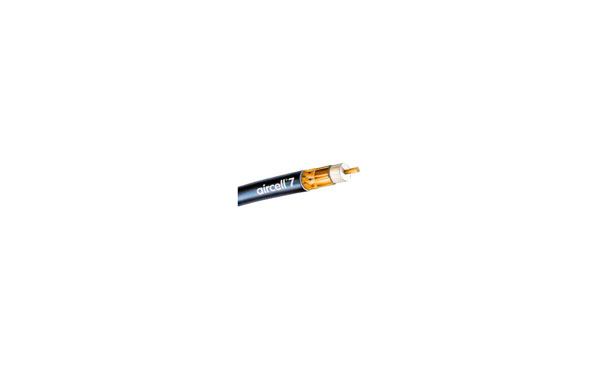

AIRCELL 7 is a super cable coaxial designed for frequencies of even 6 GHz.
In a diameter of only 7,3 mm (0,287 "OD) and a minimum of flexion of radium of only 25 mm offers relatively short loss.
The short attenuation of AIRCELL 7 one is achieved through advanced techniques of manufacturing and the use of a PE LLC dielectric with a tax of foam of more than the 70%.
|
|
| | | |
The extreme flexibility of AIRCELL 7 is improve still more through the use of multiple run without oxygen leading central.
Other advantages of this cable include the use of a double shield ground that one builds of the overlapping of copperfoil more one additional perfectly weabed copperbraid. The copperfoil has a covering applied PE that prevents the sheet of cracking because of the curves of short radium and the sheath of PVC black of AIRCELL uv 7 estestabilizado.
A selection of the efficiency > 85 dB @ 1GHz one is realized. AIRCELL 7 is the election correct when a super flexible, microwaves valuated cable one requires |
|
- DIAMETRO: 7,3 mm
- Impedance: 50 ohms.
- Attenuation: 100 mts. 21,52 dB.
- Frequency Maximum: 6 Ghz.
|
| Technical Dates (short form ) | | Impedance |
50 Ohm | | Capacity |
75 pF/ m | | Velocity factor |
0,83 | | Screening efficiency @ 1 GHz |
>83 dB | | Center leading |
stranded copper, 19x0,37 mm | | Dielectric |
PE, low loss Compound | | Outer diameter |
7,3 mm | | Min bending radius |
25 mm | | Weight (100m ) |
7,2 kg |
| Max. power handling (W @ 40°C ) | |
10 MHz |
2040 | |
100 MHz |
620 | |
1000 MHz |
180 |
|
Typ. attenuation (DB @ 20°C ) | |
Frequency |
100 m |
100 ft | | 100 MHz |
6,28 |
1,91 | | 500 MHz |
14,72 |
4,49 | | 1000 MHz |
21,52 |
6,57 | | 2000 MHz |
31,88 |
9,72 | | 2400 MHz |
35,60 |
10,85 | | 3000 MHz |
40,88 |
12,46 | | 6000 MHz |
64,90 |
19,78 |
|
For your reference | |
|
AIRCELL 7 |
RG 213/ or |
RG 58/ or | | Capacity pF/ m |
75 |
101 |
102 | | Velocity factor |
0,83 |
0,66 |
0,66 | | Attenuation dB/ 100 m |
|
|
| | 10 MHz |
2,2 |
2,0 |
5,0 | | 100 MHz |
6,28 |
7,0 |
17,0 | | 500 MHz |
14,72 |
17,0 |
39,0 | | 1000 MHz |
21,57 |
22,5 |
54,6 | | 3000 MHz |
40,88 |
58,5 |
118,0 |
|
|
