REF. AIRCELL7. OF 50 OHMS STOPS AERIALS OF RADIOCOMUNICACION CABLE OF VERY SHORT LOST. --- SALE BY METRES

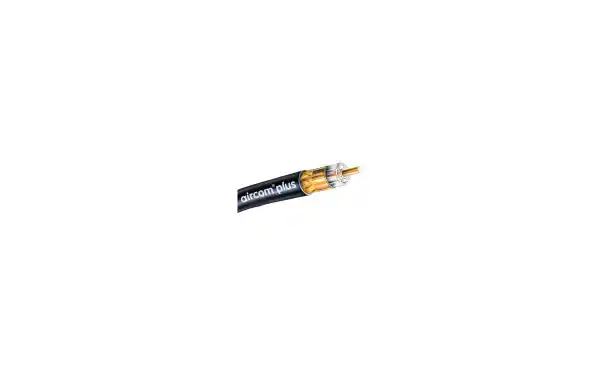

AIRCOM PLUS is a cable coaxial with excellent properties mechanic and electrical. His ground floor characteristic of the loss of the ago very adequate for applications even in the rank of microwave |
|
| | | |
AIRCOM PLUS one is characterized by an expander PE smocking that keeps the impedance correct even when abruptly doubled. The expander provides a stamp tight around the leading central solid, that esthecho of copper without oxygen by him so guarantee his protection against the humidity and the corrosion.
Other characteristic of AIRCOM PLUS is his double shield ground that one is built of the overlapping of copperfoil more one additional perfectly weabed copperbraid being in an efficiency of detection > 85 dB @ 1 GHz.
The copperfoil has a covering applied PE that prevents the sheet of cracking because of the curves of short radium and the sheath of PVC black of AIRCOM PLUS is the radiation UV rflx.
AIRCOM PLUS is the 1 election when joins short loss of microwaves valuated cable is compulsory. Is price economic him turns into the opening leading for the exigencies of the applications. |
|
- DIAMETRO: 10,3 mm
- Impedance: 50 ohms.
- Attenuation: 100 mts. 13,4 dB.
- Frequency Maximum: 6 Ghz.
|
| Technical Dates (short form ) | | Impedance |
50 Ohm | | Capacity per put |
81 pF | | Velocity factor |
0,83 | | Screening efficiency @ 1 GHz |
>85 dB | | Center Driver |
solid copper, 1 x 2,7 mm | | Dielectric |
Air with PE Expanders | | Diameter over sheath |
10,3 mm | | Min. bending radius |
55 mm | | Weight (100m ) |
15 kg |
| Max. power handling (W @ 40°C ) | | 10 MHz |
3980 | | 100 MHz |
1210 | | 1000 MHz |
340 |
|
Typ. attenuation (DB @ 20°C ) | |
Frequency |
100 m |
100 ft | | 100 MHz |
3,8 |
1,16 | | 500 MHz |
9,0 |
2,74 | | 1000 MHz |
13,4 |
4,08 | | 2000 MHz |
20,1 |
6,13 | | 2400 MHz |
22,5 |
6,86 | | 3000 MHz |
25,9 |
7,90 | | 4000 MHz |
31,1 |
9,48 |
|
For your reference | |
|
AIRCOM BONUS |
RG 213/ or |
RG 58/ or | | Capacity pF/ m |
81 |
101 |
102 | | Velocity factor |
0,83 |
0,66 |
0,66 | | Loss in dB/ 100 m |
|
|
| | 10 MHz |
1,2 |
2,0 |
5,0 | | 100 MHz |
3,8 |
7,0 |
17,0 | | 500 MHz |
9,0 |
17,0 |
39,0 | | 1000 MHz |
13,4 |
22,5 |
54,6 | | 3000 MHz |
25,9 |
58,5 |
118,0 |
|
|
