AIRBORNE-5 M & P Coaxial Cable high quality, low loss

AIRBORNE-5 M & P Coaxial Cable high quality, low loss more Manufacturer: m&p Reference AIRBORNE5

Make the first review

m&p

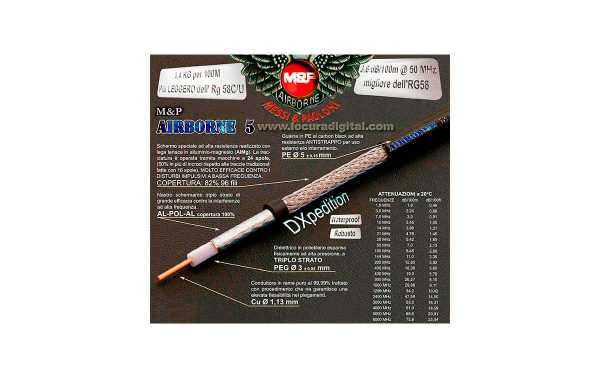

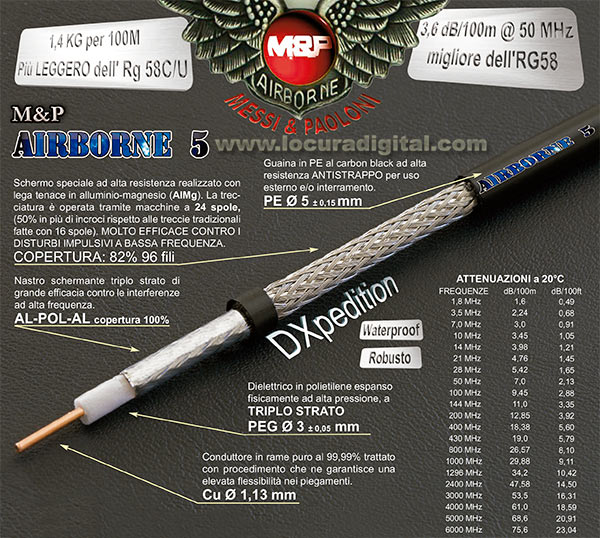

AIRBORNE-5 M & P Coaxial Cable High quality special low loss for DX expeditions thickness 5 mm. 1.3 mm thickness live. AIRBORNE-5 M & P Coaxial Cable High quality special low loss for DX expeditions thickness 5 mm. 1.3 mm thickness live. AIRBORNE-5 M & P Coaxial Cable High quality special low loss for DX expeditions thickness 5 mm. 1.3 mm thickness live. AIRBORNE-5 M & P Coaxial Cable High quality special low loss for DX expeditions thickness 5 mm. 1.3 mm thickness live. AIRBORNE-5 M&P Cable Coaxial alta calidad, baja perdida
AIRBORNE-5 M & P Coaxial Cable High quality special low loss for DX expeditions thickness 5 mm. 1.3 mm thickness live.
available
2,40€ incl. VAT
1,98€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

AIRBORNE 5

AIRBORNE 5 M & P Coaxial Cable High quality special low loss for DX expeditions thickness 5 mm. 1.3 mm thickness live.

Professional Cable M & P, ideal for DX expeditions. It has the same size of a B RG 58 C / U (5 mm) Airborne 5 is very lightweight and elecricamente has an attenuation at 50 MHz 3.6 dB / 100 m. It can be placed underground. At 50 MHz it can handle up to 520 watts and 1040 watts continuous transmission in SSB.

THE PRICE IS FOR 1 METER / sold by the meter

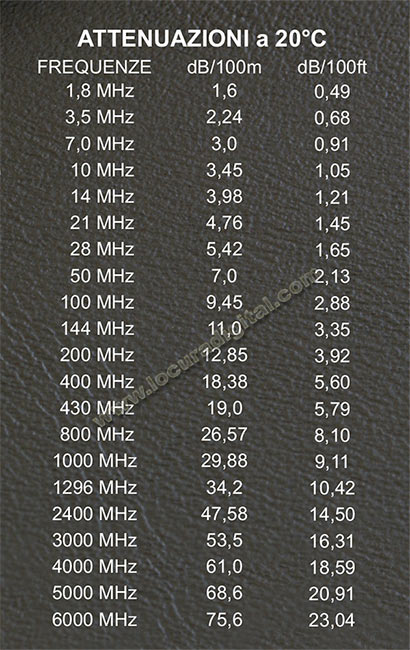

Example losses dB every 100 m

Frequency 2.24 MHz 3.5 dB
144 Mhz frequency 11 dB
430 Mhz frequency 19 dB

airborne 5 m&p cable coaxial alta calidad, baja perdida especial para expediciones dx grosor 5 mm. vivo grosor 1,3 mm.

airborne 5 m&p cable coaxial alta calidad, baja perdida especial para expediciones dx grosor 5 mm. vivo grosor 1,3 mm.

airborne 5 m&p cable coaxial alta calidad, baja perdida especial para expediciones dx grosor 5 mm. vivo grosor 1,3 mm.

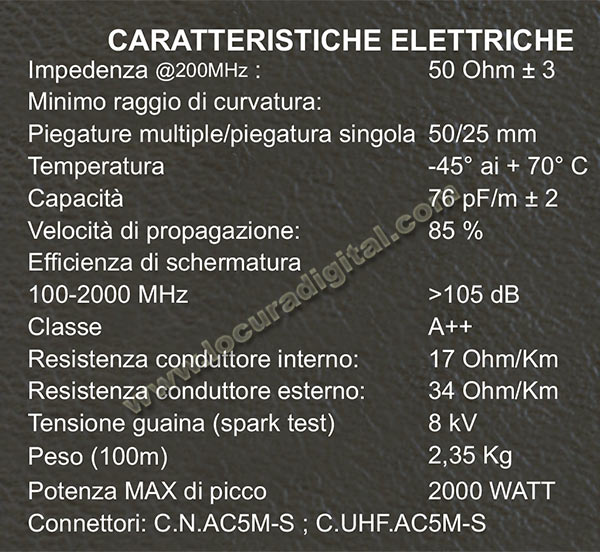

Features

  • Rate Ratio 85%
  • Minimum radius of curvature OUT / IN 50/25 mm
  • Nominal Impedance Ohms / 3 50 Ohm
  • The resistance of the inner conductor 17 Ohm / Km
  • Outer conductor resistance 34 Ohm / Km
  • MAX 2000 Watt Peak Power
  • Weight (100m) 2.35 Kg
  • Screening efficiency> 105 dB (Class A)
  • Temperature range 45 ° ai 70 ° C
