D-ORIGINAL DX-ATOR-5B Radomized directive antenna GSM, DCS, 4G, 5G,

DX-ATOR-5B

The D-ORIGINAL DX-ATOR-5B antenna is a log periodic antenna designed to cover various frequency bands used in communication systems such as GSM, DCS, 3G, LTE800, LTE2600, 5G and WiFi.

In particular, this antenna is adapted to cover the 5G bands, including 700 MHz and 3,500 MHz frequencies. Compatibility with these bands is crucial as the deployment of 5G technology uses a variety of frequencies to transmit data at high speeds and low latency.

Frequency bands such as 700 MHz and 3,500 MHz are part of the spectrum used in the implementation of 5G, and the log periodic antenna is designed to offer adequate performance for these frequencies, making it an appropriate option for environments where the aim is to maximize coverage and data transmission capacity in these specific bands.

Additionally, being a log periodic antenna, it is capable of operating at multiple frequencies within its designated range, making it versatile for different communication applications, from mobile telephony to WiFi wireless networks.

D-ORIGINAL DX-ATOR-5B is a log periodic antenna that specializes in the coverage of multiple frequency bands, including those used for technologies such as 5G, such as the 700 MHz and 3,500 MHz bands, along with other bands associated with systems. mobile communication and wireless networks.

Mounting valid for wall or mast.

• 1 Antenna
• 1 Mast clamp
• 20 cm low loss RG cable white
• 1 Connector soldered to the N female cable

Characteristics

• Frequency Band: 698 -960 MHz & 1700-2700 MHz 3000- 4000 Mhz, No adjustment required
• System:GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-5G, LTE, ISM/SIGFOX/LoRa 868MHz, WiFi-2.4GHz
• Type: Panel

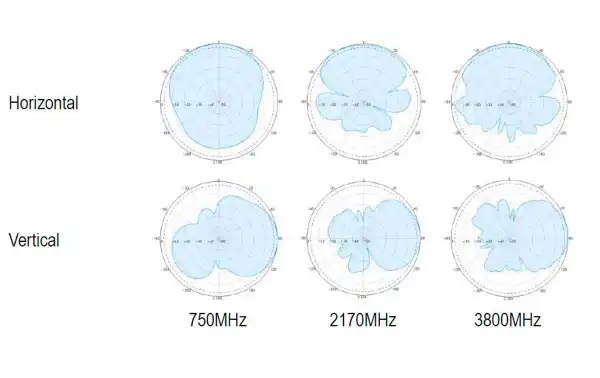

• Radiation: Directional
• Impedance 50 ohms
• Polarization:Linear Vertical
• Gain: 5 dBi @ 790-960 MHz 8 dBi @ 1.71-2.7 GHz
• Maximum Power: 20 Watts @ 790-960 MHz 8 Watts @ 1.71-2.7 GHz
• Cable Length / 20 cm / Low-Loss / Low Loss
• Materials: Galvanized Steel Clamp, UV Stabilized Thermoplastic, PCB
• Connector: 1 x N-Female
• Mast mounting 25 - 40 mm
• Wind resistance 140km/h

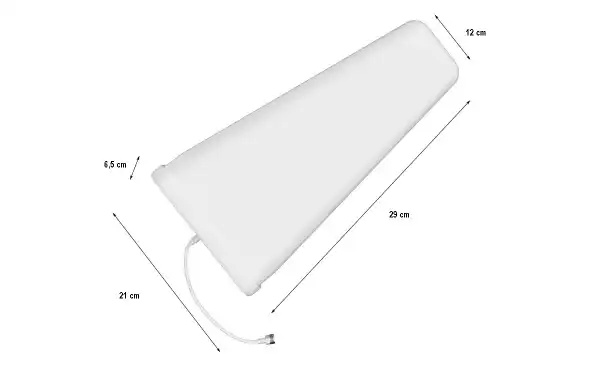

• Dimensions (approx): 29 x 21 x 6.5 cm
• Weight (approx): 870 gr
• Mounting Type: On Mast, On Wall or Wall
