SO 4G LTE SIRIO Base antenna for 4G and LTE 790-960 and 1710-2700 Mhz

SO 4G LTE SIRIO Base antenna for 4G and LTE 790-960 and 1710-2700 Mhz, valid to install on wall or mast, RG cable, low loss white color, 5 meters. Male SMA connector more Manufacturer: sirio Reference SO4GLTE

Make the first review

SO 4G LTE SIRIO Base antenna for 4G and LTE 790-960 and 1710-2700 Mhz

not available

61,87€ incl. VAT

51,13€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

SYRIO SO4GTE

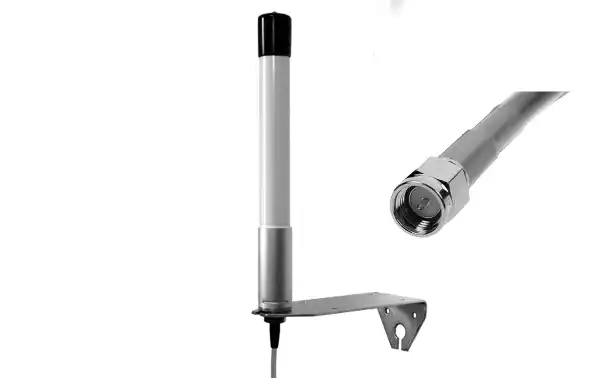

SO 4G LTE SIRIO Base antenna for 4G and LTE 790-960 and 1710-2700 Mhz, valid to install on wall or mast, RG cable, low loss white color, 5 meters. Male SMA connector

Antenna length 25cm
Male SMA connector
Antenna cable length 5 meters

so 4g lte sirio antena base para 4g y lte 790-960 y 1710-2700 mhz

Kit Contents

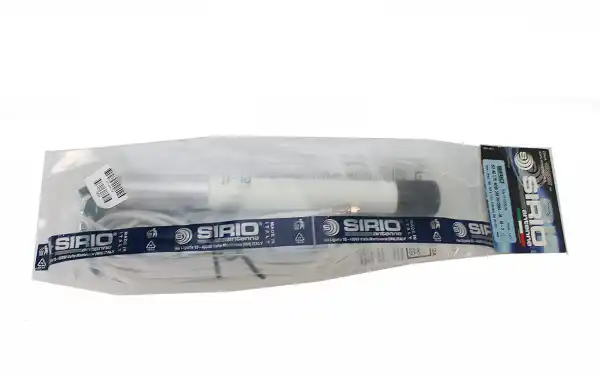

SO4G LTE antenna
Antenna bracket (Includes flanges)

so 4g lte sirio antena base para 4g y lte 790-960 y 1710-2700 mhz

Characteristics

Frequency 790 - 960 and 1710-2700 Mhz.
FIBER antenna.
Base antenna type.
Impedance 50 Ohm.
Antenna length 28 cm
Omnidirectional.
Male SMS antenna connector
Vertical polarization.
Power. max. 25 W.
VSWR <1.2: 1.
Gain 2.15 dBi 790 - 960
Gain 4 dBi 1710-2700 Mhz.
GSM-R, GSM-900, GSM-1800 system,
2G-GSM / GPRS / EDGE, 3G-UMTS, 4G-LTE,
ISM / SIGFOX / LoRa 868MHz, ISM / SIGFOX / LoRa 915MHz,
WiFi-2.4GHz, DECT
Weights 495 Gr.
Antenna cable length 5 meters
Mast or wall mount type.
Syrian Code: P / N: 2111520.80
