PWR-SRH-20-SMAF

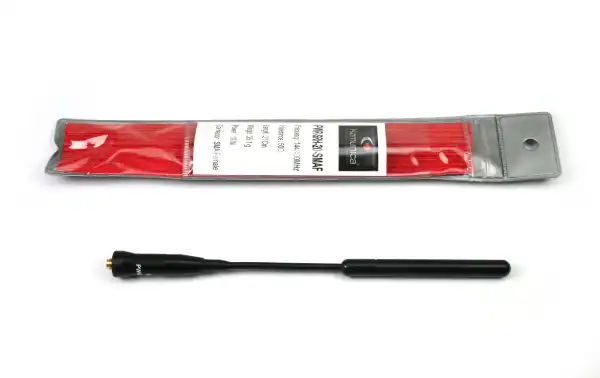

The PWR-SRH-20-SMAF antenna is a compact antenna designed for portable communication equipment, such as walkie-talkie radios, operating in the VHF-UHF frequency bands. Here are the key specifications of this antenna:

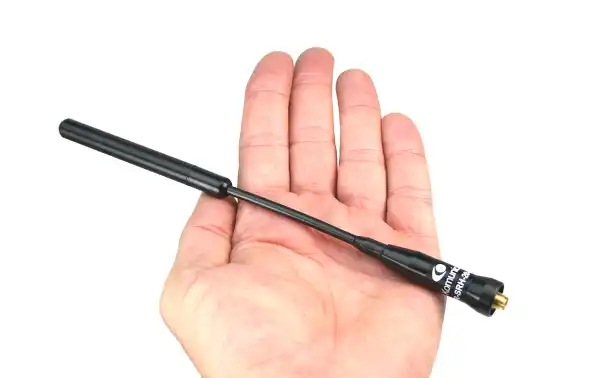

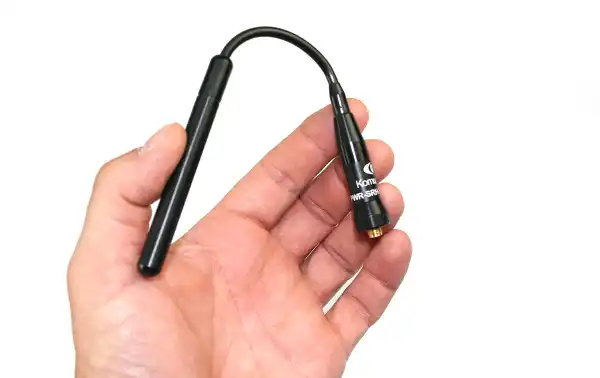

Antenna Type: This antenna is of the Extra-Flex type, which means that its rod is flexible, which helps prevent damage in situations where the antenna could be bent or twisted. This flexibility is important in portable applications.
Frequency Range: The antenna is designed to operate in the 144/430 MHz frequency range, which covers the VHF and UHF bands. These bands are common in amateur radio communications, two-way radios, and other similar devices.
Impedance: The antenna has an impedance of 50 Ohms. This impedance is standard in many RF applications and ensures impedance matching to typical coaxial cables and equipment.
Maximum Power: The maximum power that this antenna can handle is 10 W (watts). This is important to ensure that the antenna can safely operate with the transmit power of the radio.

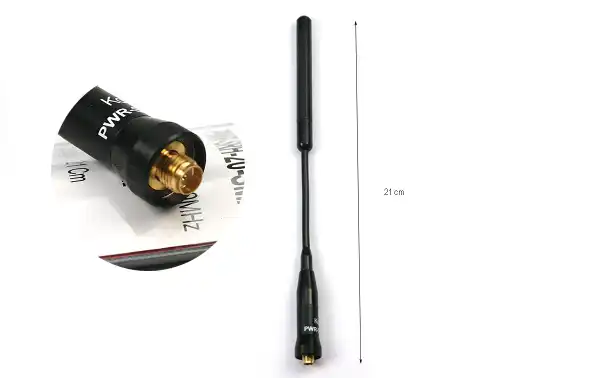

Length: The total length of the antenna is 21 cm. Its compact design is suitable for portable applications where space may be limited.
Weight: The antenna weighs 29.4 grams, which makes it light and easy to carry on portable devices.

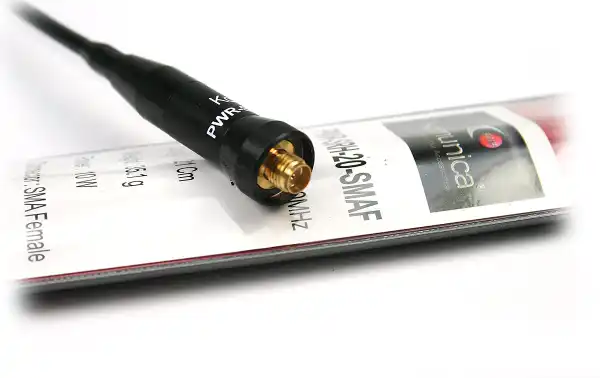

Connector: The antenna is equipped with a female SMA (SMA) connector, which is a common type of connector used in radio and communications equipment.
The PWR-SRH-20-SMAF antenna is a suitable option for portable communication equipment operating in the VHF-UHF bands. Its flexible design, compatible frequency range, standard impedance, and ability to handle up to 10W of power make this antenna a solid choice for improving reception and transmission in walkie-talkie radios and similar devices.
