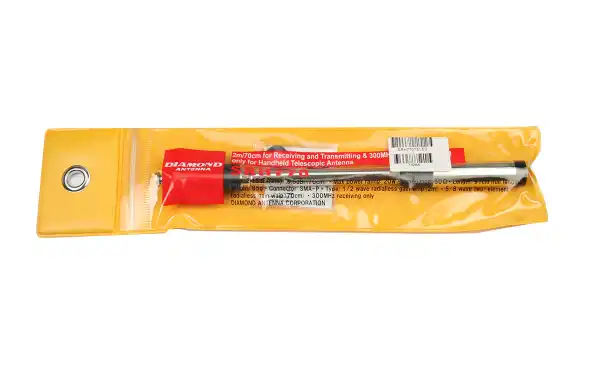

DIAMOND SRH-770 Dual band telescopic antenna 144/430 Mhz. SMA Male

Diamond SRH-770 Original DIAMOND Dual Band Antenna 144/430 VHF/UHF SMA male connector, extended length 91 cm. Antenna for dual band VHF/UHF walkies 144 Mhz (2.15 dBi gain) / 430 Mhz (5.5 dBi gain). Telescopic with maximum length of 91 centimeters (21 more Manufacturer: diamond Reference SRH770TELES

Make the first review

diamond
DIAMOND SRH-770 Dual band 144/430 Mhz telescopic antenna. SMA Male The Diamond SRH-770 is an original DIAMOND brand antenna, designed to operate in VHF/UHF dual band. The antenna has a male SMA connector on one end, allowing easy and secure connection to walkie-talkies that have a corresponding female SMA connector. Frequencies: The antenna operates in two frequency bands: 144 MHz in the VHF band and 430 MHz in the UHF band. The antenna gain is 3 dB on the 144 MHz band and 5.5 dB on the 430 MHz band, which means it provides an increase in transmit and receive power t • Adjustable Length: The antenna is telescopic and can be adjusted to have an extended length of up to 91 cm. When fully retracted, its length is approximately 21.5 cm. This characteristic makes it versatile, since it can be adapted to different situation The Diamond SRH-770 is a popular choice for those looking for a high quality dual band (VHF/UHF) walkie talkie antenna with SMA male connector. Its telescopic design and length adjustability allow comfortable and efficient use in various situations. As always, it is important to use original and suitable antennas for the specific frequencies and equipment to obtain optimal communication performance.
DIAMOND SRH-770 Dual band 144/430 Mhz telescopic antenna. SMA Male
available
53,62€ incl. VAT
44,31€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

DIAMOND RH-770

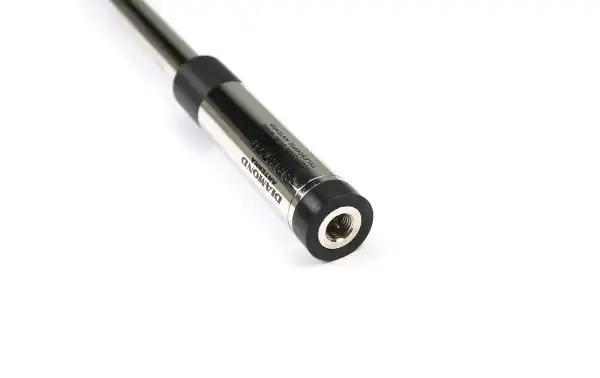

The Diamond SRH-770 is an original DIAMOND brand antenna, designed to operate in VHF/UHF dual band. The antenna has a male SMA connector on one end, allowing easy and secure connection to walkie-talkies that have a corresponding female SMA connector.
The main characteristics of the antenna are:
Frequencies: The antenna operates in two frequency bands: 144 MHz in the VHF band and 430 MHz in the UHF band. The antenna gain is 2.15 dBi in the 144 MHz band and 5.5 dBi in the 430 MHz band, which means it provides an increase in transmit and receive power to improve communications range .

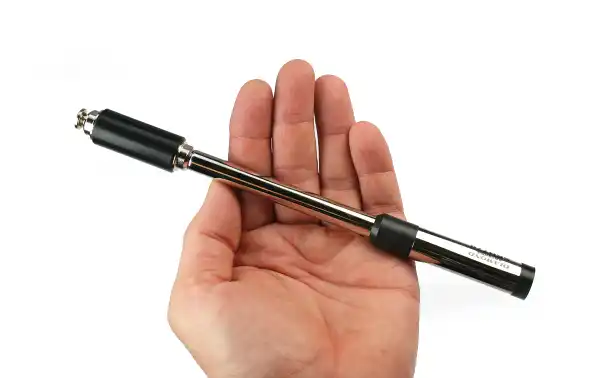

Adjustable Length: The antenna is telescopic and can be adjusted to have an extended length of up to 91 cm. When fully retracted, its length is approximately 21.5 cm. This characteristic makes it versatile, since it can be adapted to different situations and needs of use.
The Diamond SRH-770 is a popular choice for those looking for a high quality dual band (VHF/UHF) walkie talkie antenna with SMA male connector. Its telescopic design and length adjustability allow comfortable and efficient use in various situations. As always, it is important to use original and suitable antennas for the specific frequencies and equipment to obtain optimal communication performance.

frecuencias: la antena opera en dos bandas de frecuencia: 144 mhz en la banda vhf y 430 mhz en la banda uhf. la ganancia de la antena es de 3 db en la banda de 144 mhz y 5,5 db en la banda de 430 mhz, lo que significa que proporciona un aumento en la potencia de transmisión y recepción para mejorar el alcance de las comunicaciones.

kit content
  • 1 SRH-770 Antenna

frecuencias: la antena opera en dos bandas de frecuencia: 144 mhz en la banda vhf y 430 mhz en la banda uhf. la ganancia de la antena es de 3 db en la banda de 144 mhz y 5,5 db en la banda de 430 mhz, lo que significa que proporciona un aumento en la potencia de transmisión y recepción para mejorar el alcance de las comunicaciones.

Characteristics

  • Frequencies 144/430 Mhz
  • Transmission TX: 144/430 Mhz
  • Gain 144 Mhz 1/2 (gain 2.15 dBi)
  • Gain 430 Mhz 5/8 (gain 5.5 dBi)
  • maximum power 20 watts
  • SMA male antenna connector

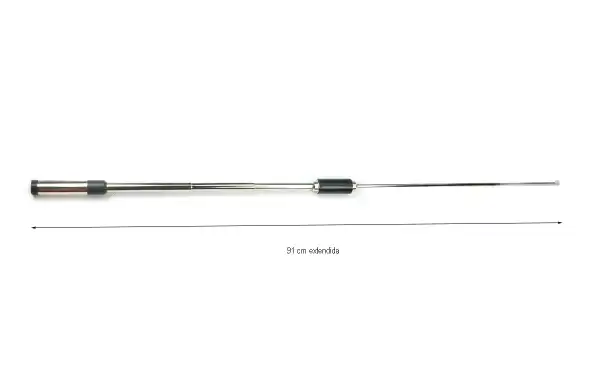

  • extended length 91 cm

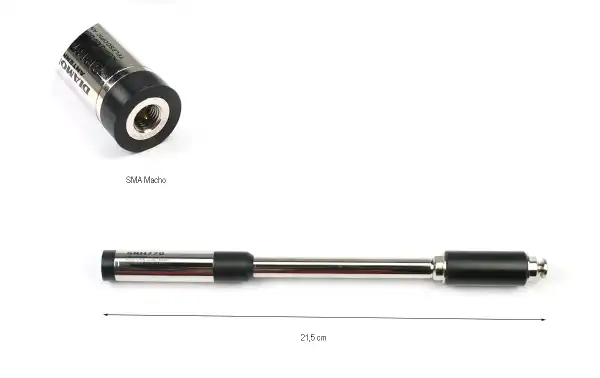

  • collected length 21.5 cm
  • Telescopic antenna format.
  • Impedance 50 ohms
  • Receive 300 Mhz
  • Wavelength 1/2 and 5/8 (144-430 ) Mhz
  • Weight 104 grams.
