PWR-TA-89S
This is an antenna designed to pick up and transmit radio signals at different frequencies.
It has the ability to adjust its telescopic length to accommodate different frequencies and transmission needs.
Reception Frequency Range:
It can receive signals in a wide range of frequencies, from 95 MHz to 1100 MHz.
This means that you can tune in to radio stations, communication signals, and other types of transmissions on these frequencies.
Revenue:
The antenna gain is 2.15 decibels (dBi) in the 95 to 300 MHz range.
Gain refers to the antenna's ability to focus energy in a specific direction, which can improve received signal quality in that range.
Transmission Frequency Range:
The antenna also has the ability to transmit on the 144 MHz and 430 MHz bands.
This means that you can use the antenna to send signals on these frequencies, for example, to communicate with other amateur radio users.
SMA-Male connector:
The antenna is equipped with a SMA-Male connector.
The SMA connector is commonly used in radio and communication equipment due to its size and performance.

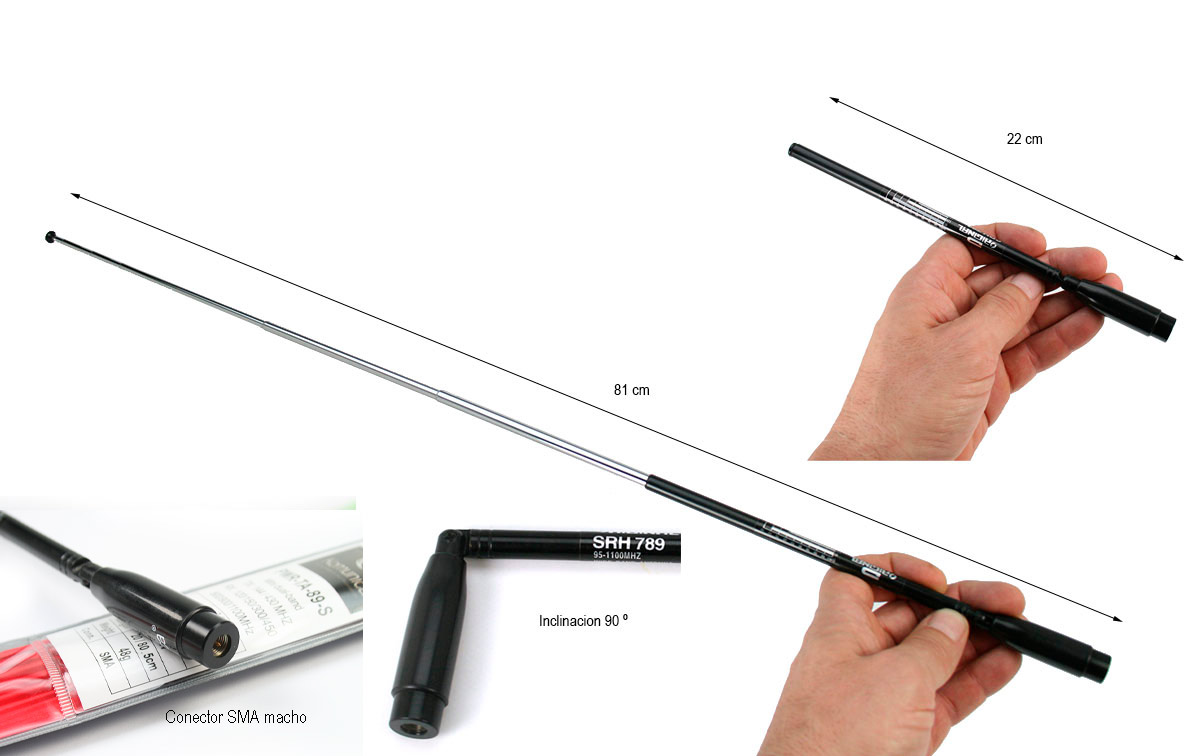

Number of Sections and Length:
The antenna consists of 6 sections that can be extended or folded.
When the antenna is fully extended, it is 81 cm in length.
When folded, its length is reduced to 22 cm, making it easy to transport and store.
This telescopic antenna is a versatile device that allows you to receive and transmit signals on a wide variety of frequencies. Its telescopic design, specific gain in certain ranges, and adjustability make it useful for different applications, such as amateur radio, radio signal reception, and communication in the 144 and 430 MHz bands.
Frequency 95-1100 Mhz
Extended length: 81 cm
Folded length: 22 cm.

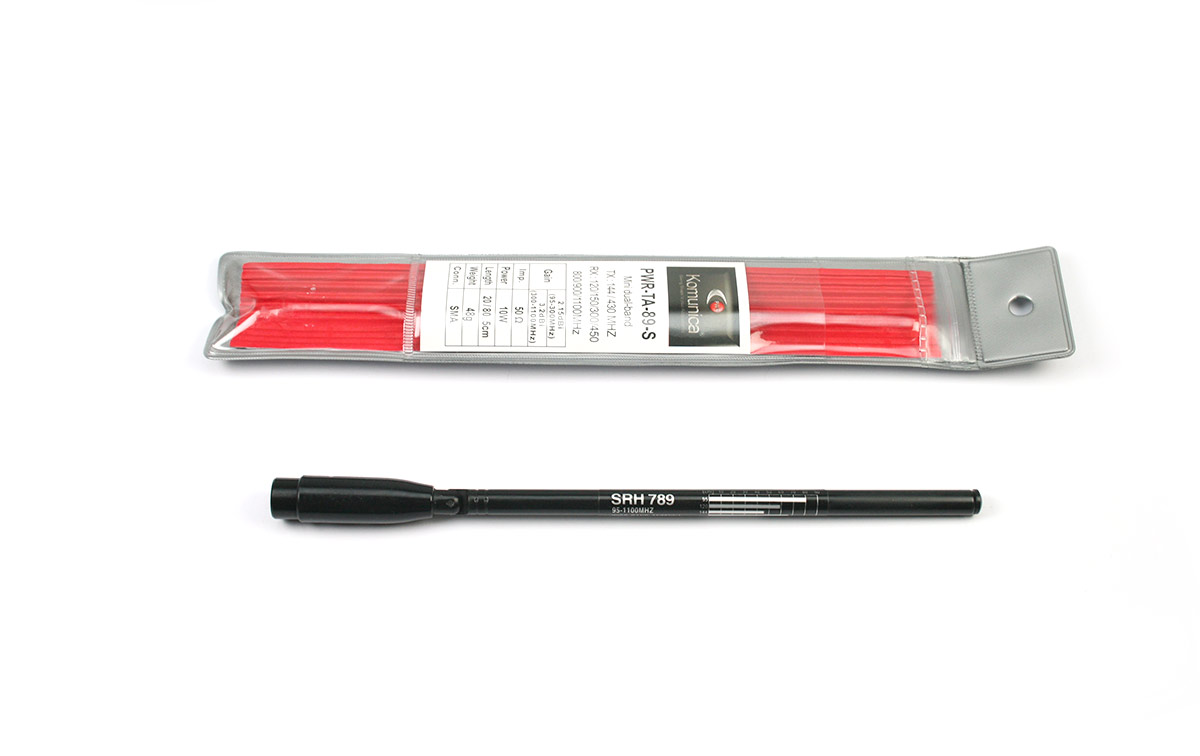

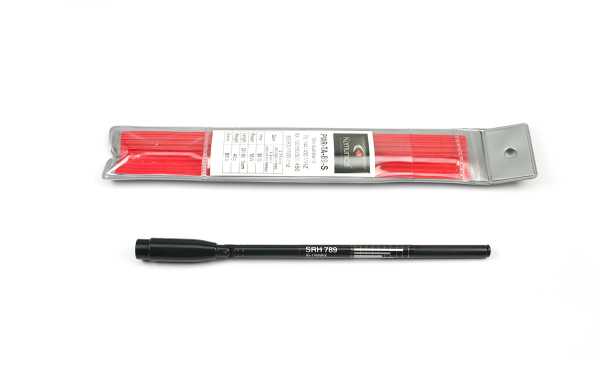

kit content
