LAFAYETTE ASG1012 Switched Power Supply | 1 Amp | 12-volt output voltage...

Specially designed for installation in DIN rail format. DIN rail mounting standard 35mm | Output voltage: 12 V | Amp output: 1 A. more Manufacturer: lafayette Reference ASG1012 EAN 8032182600138

Make the first review

ASG1012 LAFAYETTE Fuente Alimentación Conmutada tipo rail DIN potencia 10W,voltage salida 12 volts

available

26,62€ incl. VAT

22,00€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

ASG1012

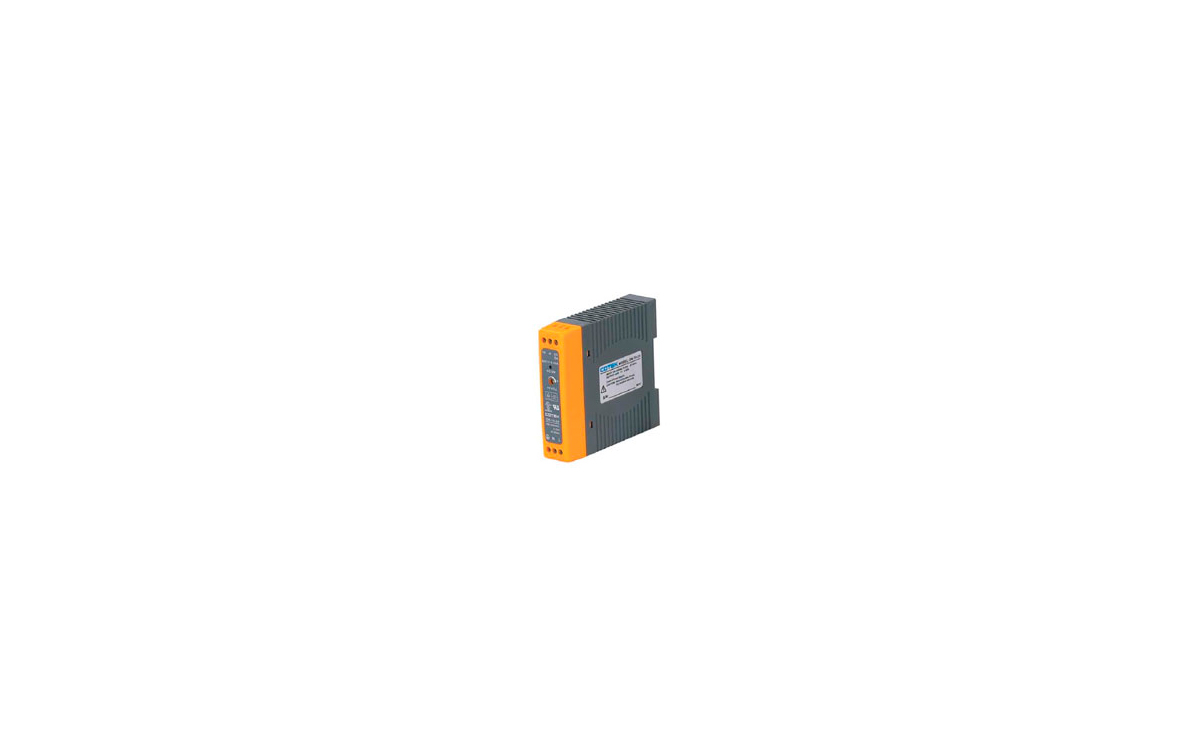

ASG1012 LAFAYETTE Switching Power Supply 1 Amps, voltage output 12 volts, DIN rail type

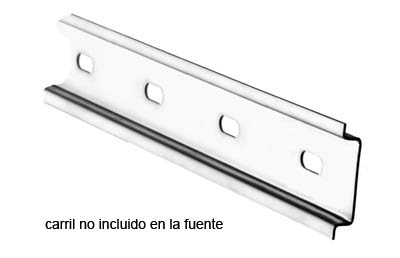

Especially designed for installations in rail DIN format. For mounting on standard 35 mm DIN rail

Voltage input: 220 v.

Voltage Output: 12 v.

Output Amps: 1 A

Power 10 watts

Potencia 10 watios

asg1024 lafayette fuente alimentación conmutada tipo rail din potencia 10w,voltage 24 volts

asg1024 lafayette fuente alimentación conmutada tipo rail din potencia 10w,voltage salida 24 volts

Features

Type of protection: Constant current, limiting automatically until the fault is repaired

Overvoltage: Output of 115% ~ 150% of rated voltage

Operating temperature:
20 ~ 70 ° C ( see the output load curve)
Vibration: 10 ~ 500 Hz, 5 G 0.5 Oct / min., A period of 60 minutes. each along the X, Y, Z axes
Support the voltage:
/ PO / P: 4242 DC I / PF / G: 2121 DC 1 minute
EMC and
safety standards: UL 508, TUV EN60950 1 , UL1310 Class NEC 2
EN55022: 2006 compliant (class B), EN61204 3: 2000, EN61000 6 3: 2007
EN61000 3 2, 3: 2006
EN55024, standards EN61204 3: 2000, EN61000 6 1: 2007 ( EN61000 4 2, 3,4,5,6,8,11)

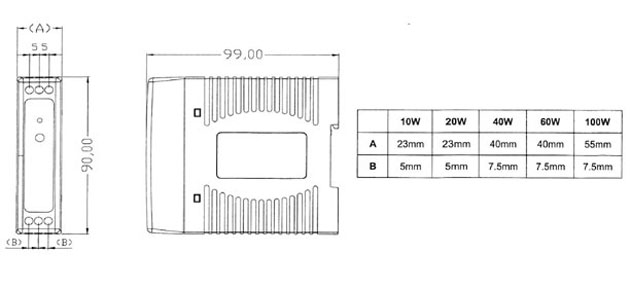

Size and weight: 23 x 90 x 99 mm
0,14 Kg
EN55024, normas EN61204 3: 2000, EN61000 6 1: 2007 (EN61000 4 2, 3,4,5,6,8,11)
Tamaño y peso: 23 x 90 x 99 mm
0,14 Kg
