ASG6012

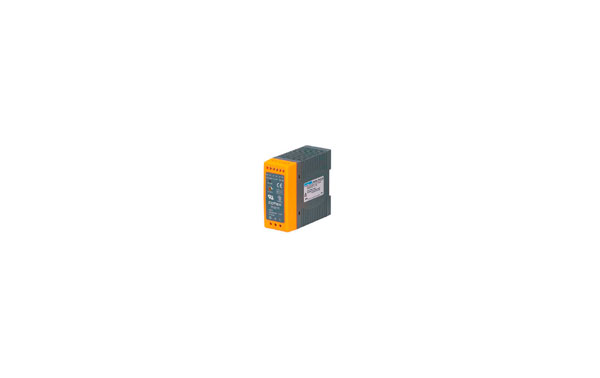

ASG6012 LAFAYETTE Switching Power Supply 5 Amps Voltage output 12 volts, DIN rail type
Especially designed for installations in rail DIN format. For mounting on standard 35 mm DIN rail
Voltage input: 220 v.
Voltage Output: 12 v.
Output Amps: 5A.
Power 60 watts
Amperios de salida: 5A.
Potencia 60 watios
Features
Type of protection: Constant current, limiting automatically until the fault is repaired
Overvoltage: Output of 115% ~ 150% of rated voltage
Protection type: Latch off mode
Operating temperature:
20 ~ 70 ° C ( see the output load curve) - Vibration: 10 ~ 500 Hz, 5 G 0.5 Oct / min., A period of 60 minutes. each along the X, Y, Z axes
Support the voltage:
/ PO / P: 4242 DC I / PF / G: 2121 DC 1 minute
EMC and
safety standards: UL 508, TUV EN60950 1 , UL1310 Class NEC 2
EN55022: 2006 compliant (class B), EN61204 3: 2000, EN61000 6 3: 2007
EN61000 3 2, 3: 2006
EN55024, standards EN61204 3: 2000, EN61000 6 1: 2007 ( EN61000 4 2, 3,4,5,6,8,11)
Size and weight: 40 x 90 x 99 mm
0,30 Kg
EN55022: 2006 (clase B), las normas EN61204
3: 2000, EN61000 6 3: 2007
EN61000 3 2, 3: 2006
EN55024, normas EN61204 3: 2000, EN61000 6 1:
2007 (EN61000 4 2, 3,4,5,6,8,11)
Tamaño y peso: 40 x 90 x 99 mm
0,30 Kg
