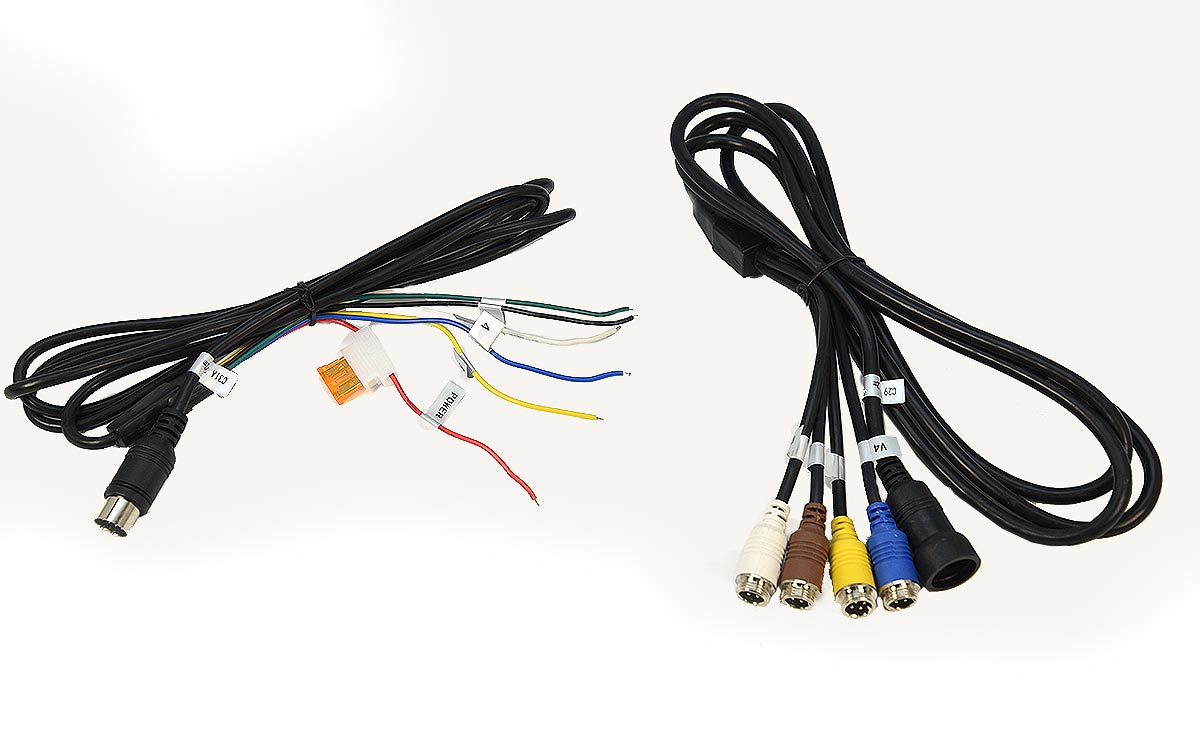

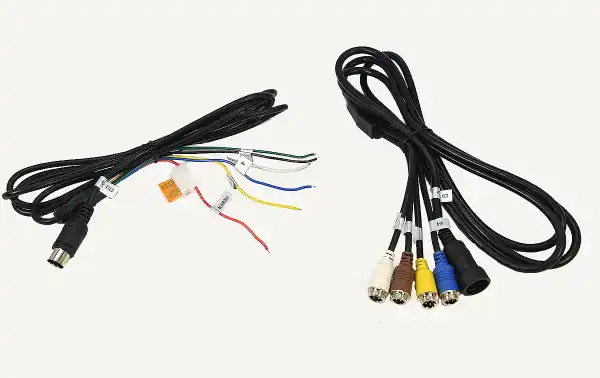

BRV-940 Power cable and camera connections, BRV900 monitor.

BRVC-940

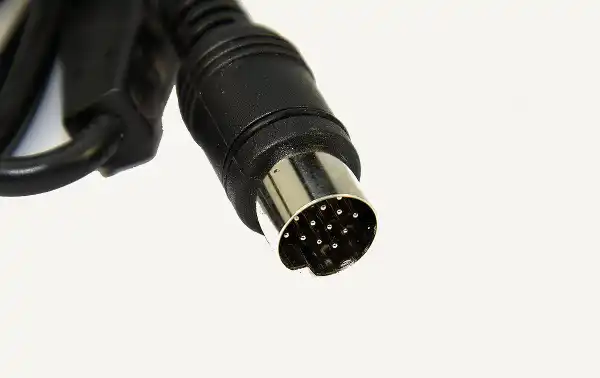

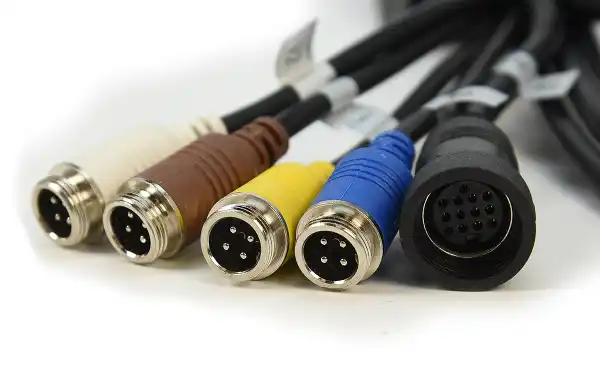

BRVC-940 Power cable and camera connections, 4-pin male connector, with the possibility of connecting 4 cameras. Power supply monitor BRV900, power cable 12/24 v. Red positive, black wire mass - negative, green wire 12/24 v. positive, for turning on camera 1, white wire 12/24 v. positive, for turning on camera 2, yellow wire 12/24 v. positive, for turning on camera 3, blue cable 12/24 v. positive, to turn on the camera 4

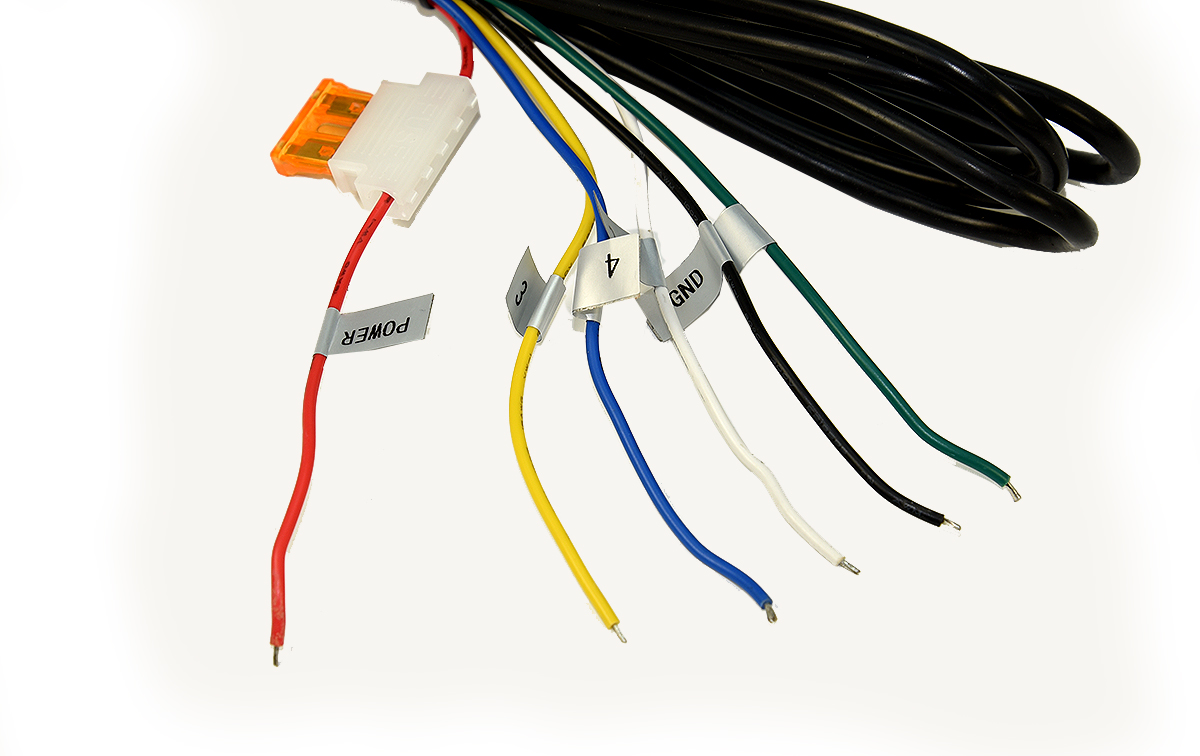

• Power 12/24 v. Red positive
• Black cable mass - negative
• Green cable 12/24 v. positive, for turning on the camera 1
• White cable 12/24 v. positive, to turn on the camera 2
• Yellow cable 12/24 v. positive, to turn on the camera 3
• Blue cable 12/24 v. positive, to turn on the camera 4
