PL-AIR7-STANDARD

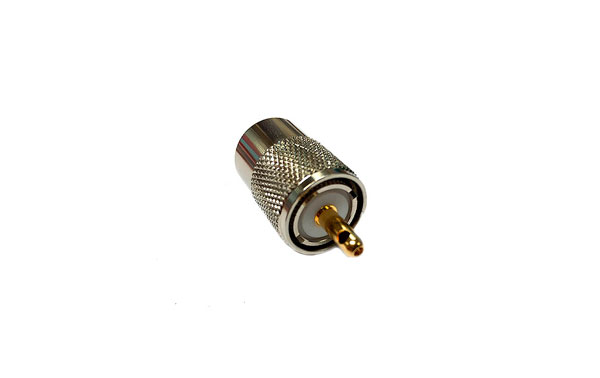

PL-AIR 7 STANDARD Male PL Connector for CABLE AIRCELL 7, Male PL Connector: The term "PL" refers to "Plug" and "Lock". The PL connector is more formally known as "PL-259" or "UHF connector", and is an RF connector that is commonly used in radio frequency and radio communication applications. The male PL connector has a center pin that inserts into the corresponding female connector.
Cable diameter: The male PL connector you mentioned is designed to be used with 7.3mm diameter cables. This means that it is compatible with cables that are that specific size, ensuring a proper and secure connection.
Gold Pin and PTFE Insulation: The use of a gold pin on the conductive parts of the connector is a common feature in high quality connectors. Gold plating helps improve conductivity and reduce signal loss, resulting in better RF signal transmission through the connector. PTFE (Polytetrafluoroethylene) insulation is a dielectric material used in many high quality connectors due to its exceptional dielectric and thermal properties.
Quality and signal transmission: The gold coating and the use of high-quality materials, such as PTFE, in the connector contribute to a better transmission of the RF signal. This is essential in radio communication applications, where signal quality is crucial for reliable communication.
Advantages of gold plating: Gold plating on conductive parts helps prevent corrosion and oxidation, which can negatively affect connection quality and signal transmission over time.
Radio Use: PL Male connectors are used in a variety of radio applications, including amateur radio systems, transceivers, antennas, and professional communication equipment. The male PL connector you described with gold pin and PTFE insulation is a very high quality component designed for radio communication applications. The use of high-quality materials and the gold plating on the conductive parts contribute to better transmission and use of the RF signal, which is essential for reliable communication in radio frequency environments.
Ideal for use in AIRCELL-7, ULTRAFLEX-7, RF287UF type cables, etc.
kit content
- Connector CON-UHF-AC7-MTS
