DV27 CONNECTOR BASE PALOMILLA

ref: 27 DV27 DV CONNECTOR FOR PALOMILLA BASE

And CABLE BASES PALOMILLA NOT INCLUDING

Content of kit

Vista superior

Later Vista with to cover

Preparation of the assembly

We must to peel for cable the correct introduction in the connector

Uniendoel connector with the cable

To ace much pleases to drop of tin in the end of the cable like in the connector facilitating to later weld.

Position of the cable before welding

Weld of the cable with the connector

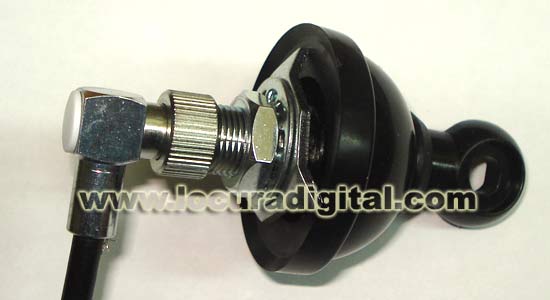

Connection with the bases

ref: 27 DV27 DV CONNECTOR FOR PALOMILLA BASE

And CABLE BASES PALOMILLA NOT INCLUDING
