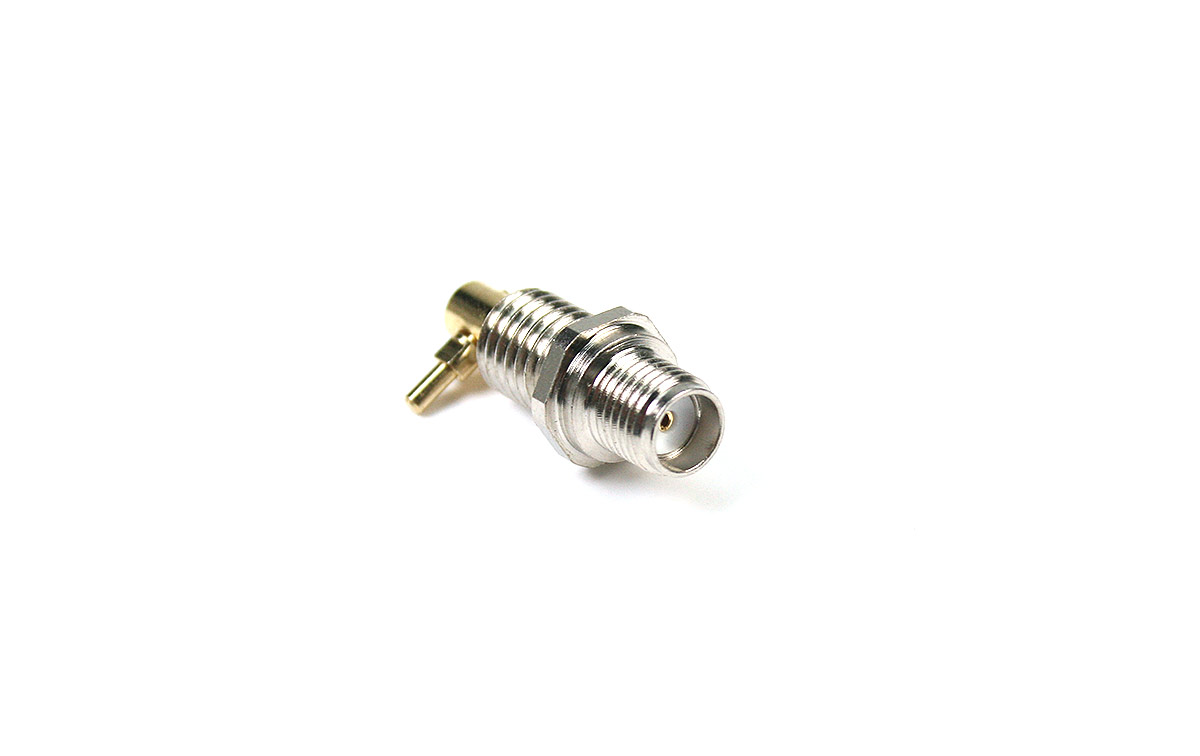

R73648 MIDLAND SMA female antenna connector for G15 walkie chassis

The R73648 is a female SMA antenna connector used for the chassis of the Midland G15 walkie talkie. This connector is specifically designed to fit into the chassis of the Midland G15 radio and provide a port with an antenna connection more Manufacturer: midland Reference R73648

available
9,51 incl. VAT
7,86€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

R-73648

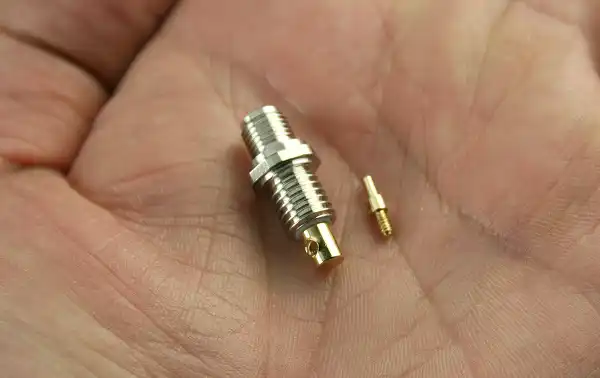

The R73648 is a female SMA antenna connector used for the chassis of the Midland G15 walkie talkie. This connector is specifically designed to fit into the chassis of the Midland G15 radio and provide a port with an SMA female type antenna connection.

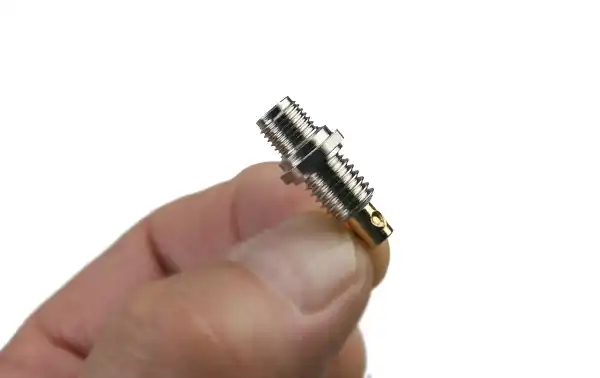

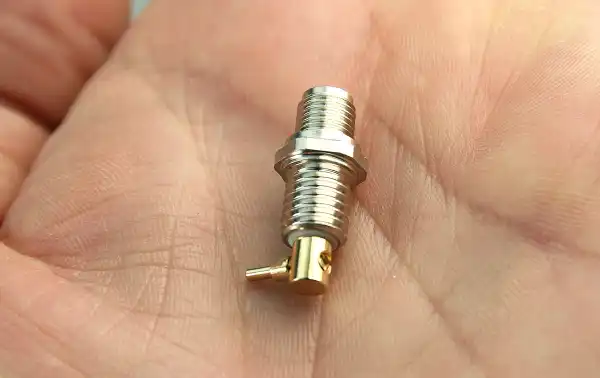

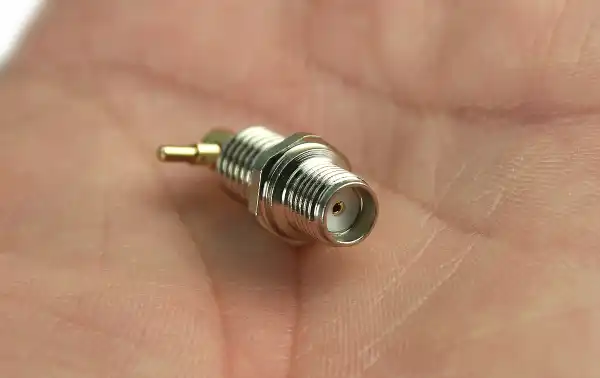

The SMA female connector allows you to connect an antenna with an SMA male connector to the chassis of the Midland G15 walkie talkie. This is useful to improve the capacity of the antenna or change it for a more powerful or longer range one if desired. It is common on portable radios or walkie talkies for the antenna connector to be replaceable to allow greater versatility in the choice of antenna to use.


el conector sma hembra permite conectar una antena con conector sma macho al chasis del walkie talkie midland g15. esto es útil para mejorar la capacidad de la antena o cambiarla por una más potente o de mayor alcance si así se desea. es común en radios portátiles o walkie talkies que el conector de antena sea reemplazable para permitir una mayor versatilidad en la elección de la antena a utilizar.

Kit content
  • 1 Connector R-73648
  • 1 gold pin

el r73648 es un conector de antena sma hembra que se utiliza para el chasis del walkie talkie midland g15. este conector está diseñado específicamente para encajar en el chasis del radio midland g15 y proporcionar un puerto con una conexión de antena tipo sma hembra.

Characteristics

  • Brand: Midland
  • Model: R73648
  • Insulation: PTFE

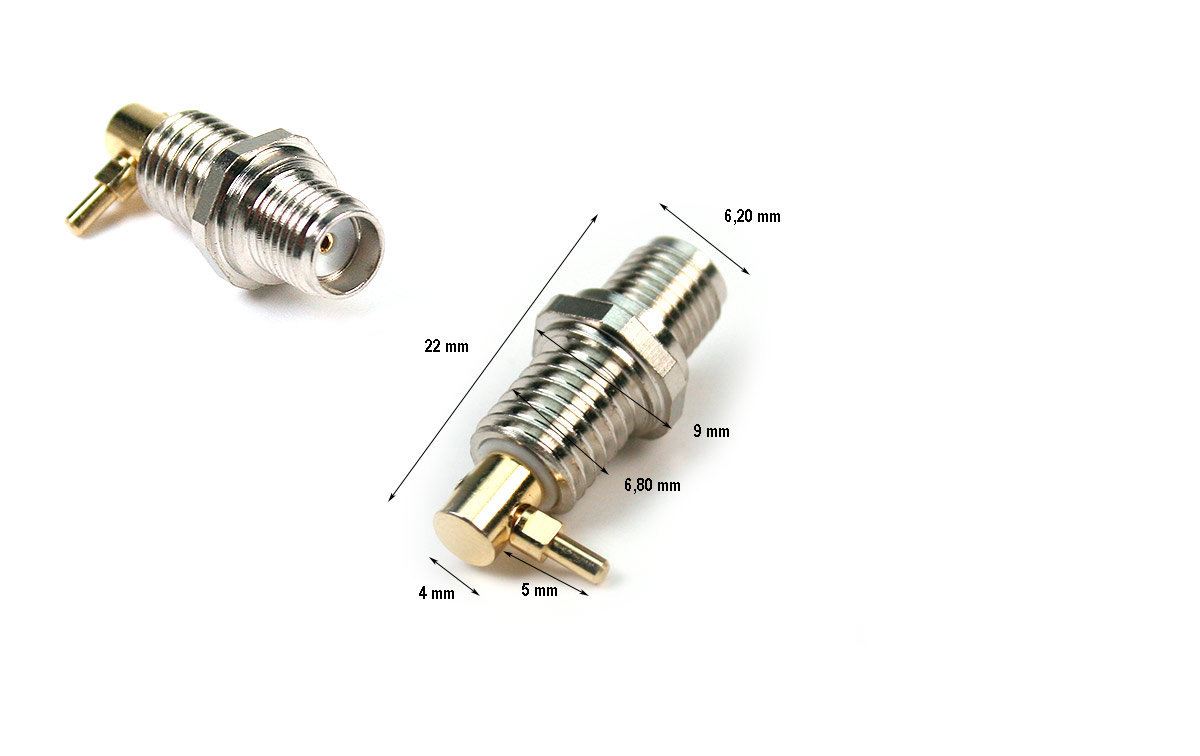

  • Measurements 22 long diameter 6.20 mm
  • Silver connector
  • Central pin: Golden Brass
  • Connector body: GROMED brass
  • Frequencies 0-1 GHz
  • Impedance 50 ohms
  • Format for WELDING
  • Weight 4 gr.
