ANYTONE AT-D168 UV Walkie dual band DMR 144/430 Mhz APRS digital

ANYTONE AT-D168-UV

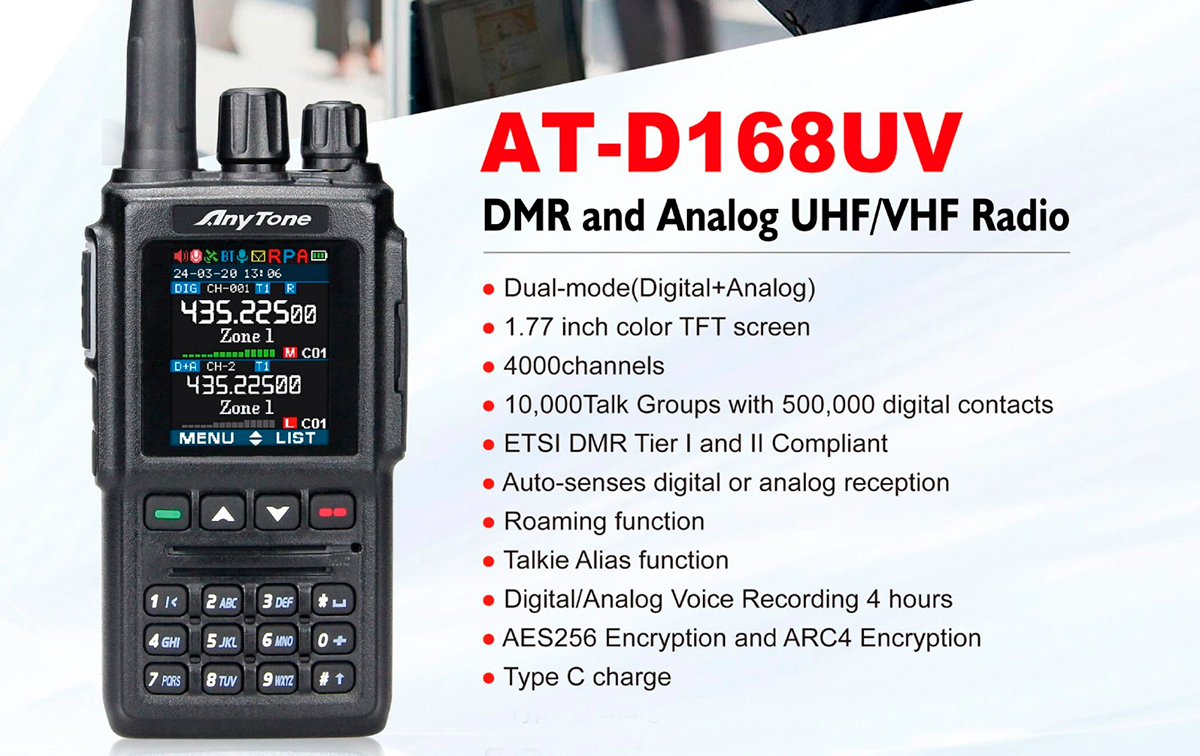

AnyTone AT-D168UV is a dual-band walkie, supporting both digital DMR (ETSI DMR Tier 1 and 2) and traditional FM. Unlike other DMR devices, it offers true VFO operation, making it more suitable for amateur radio operators, allowing you to set frequencies and transmission parameters without relying on pre-programmed channels alone, although it also offers 4000 memory channels. It can store up to 500,000 digital contacts and 10,000 talkgroups, and features a roaming function to automatically select repeaters.

The AT-D168UV includes features such as DTMF, CTCSS, DCS, and two-tone and five-tone encoding in analog mode. It has an easy-to-read 1.77” color display and programmable buttons for customizing its use. Although it does not have GPS or Bluetooth, it can transmit position data and has a USB-C port for charging and programming. Transmit power is adjustable from 0.2 to 5 watts in VHF and 4.5 watts in UHF, and it is compatible with Kenwood and Wouxun headsets.

Differences between the AnyTone D878UV II PLUS and the AnyTone D168UV:

Noise Reduction: The D168UV features noise reduction, while the D878UV II PLUS does not.

Dimensions: The D168UV is more compact at 104 x 54 x 36 mm, while the D878UV II PLUS is larger at 129 x 61 x 39 mm.

Transmit Power: The D878UV II PLUS has higher power in VHF (up to 7W) and UHF (up to 6W), while the D168UV reaches 5W in VHF and 4.5W in UHF.

Battery: The D878UV II PLUS has a 3100mAh battery, while the D168UV offers two options: 1800mAh or 2600mAh.

USB-C for Charging: The D878UV II PLUS uses the USB-C port to charge the battery, while the D168UV uses it to charge the radio directly.

Recording: The D878UV II PLUS has digital recording capabilities of up to 4 hours, while the D168UV allows for both digital and analog recording for 4 hours.

QDC1200: The D168UV includes QDC1200 signaling, which the D878UV II PLUS does not have.

APRS RX (Analog): The D878UV II PLUS supports analog APRS RX, while the D168UV does not.

Bluetooth and GPS: The D878UV II PLUS features Bluetooth and GPS, allowing for greater connectivity and location tracking. The D168UV does not have Bluetooth or GPS, making it a more basic option.

Programmable Buttons: The D878UV II PLUS has 5 programmable buttons, compared to the D168UV 's 2 buttons, giving greater customization in use.

Conclusion:

AnyTone D168UV
The AnyTone D168UV is a dual-band handheld radio designed to be compact and efficient, ideal for hams looking for an easy-to-use device. It offers a 1.77-inch display and the ability to store 4000 memory channels, plus 10,000 talk groups and 500,000 digital contacts. Its maximum power is 5W in VHF and 4.5W in UHF. Although it lacks Bluetooth and GPS, it includes features such as noise reduction and digital APRS RX. It is an affordable and functional option for those who want good communications performance.

AnyTone D878UV II PLUS
The AnyTone D878UV II PLUS is a dual-band handheld radio offering Bluetooth and GPS connectivity, ideal for advanced amateur radio applications. Featuring a 1.77-inch color display and 4000-channel memory capacity, this device can store up to 500,000 digital contacts and 10,000 talk groups. Its transmit power reaches up to 7W in VHF and 6W in UHF, with a wide range of functions, including APRS and digital recording. It is a rugged and versatile device for those looking for superior communications performance.

! GIFT OF 1 PIN19K PINGANILLO!

Characteristics

• Type: DMR and FM Handheld Radio
• Band: Dual band VHF/UHF
• VHF frequency: 144-148 MHz
• UHF frequency: 430-440 MHz
• Display: 1.77 inches color
• SMA female antenna connector
• SMA male walkie talkie connector
• Bluetooth: No
• GPS: No
• Memory channels: 4000
• Conversation groups: 10,000
• Digital contacts: Up to 500,000
• Programmable buttons: 2
• VHF transmit power: 5/2.5/1/0.2 W
• UHF transmitting power: 4.5/2.5/1/0.2 W
• Noise reduction:
• Dimensions: 104 x 54 x 36 mm
• Weight: Light and compact
• APRS RX (Digital):
• APRS SMS RX:
• FM radio reception:
• USB-C connector: Charge the radio directly
• Recording: 4 hours digital and analog
• ARC4 Encryption:
• AES256 Encryption:
• Battery: 1800 mAh or 2500 mAh
• VOX:
• Signaling type: 2/5 tones.
• Automatic A/D selection:
• Signal Indicator: Bar graph on screen.
• Parameter setting: Possibility to change parameters without PC.
• Auto repeater function: Yes.
• Roaming capability: Automatic repeater selection.
• Operation mode: DMR and FM.
• Headphone Connectivity: Compatible with Kenwood headphones.
• Measures 104 x 54 x 36 mm
