YAESU DR-2XE. C4FM/FM digital & conventional Dual-Mode repeater

Yaesu DR 2XE Digital / Analog VHF / UHF Repeater
The Yaesu DR 2X is a C4FM / FM dual band repeater / base station with full function. And unlike many other repeaters, the DR 2X handles conventional FM and C4FM digital transmission. The Yaesu System Fusion technology features the AMS Automatic Mode Select feature that instantly recognizes whether the signal is conventional digital or FM C4FM and automatically switches to match the received mode. The front panel has a 3.5-inch high-luminance full-color TFT touch screen. The rear panel has AC input and backup DC input. The power input is automatically switched to the DC input during power outages. Enjoy the ease of use of the 3.5-inch color touch panel of the DR 2X / XEYaesu DR 2XE Digital / Analog VHF / UHF Repeater

Dual-frequency operation (DRDT)
MSRL (multisite relay link) Function for easy coverage expansion through the optional module
New and improved "News Station" function for easy sharing of voice messages and text messages.
Enhanced group monitor function for easy grouping configuration (DG ID, DP ID)
Easy migration ...
The repeater controller, receiver and transmitter are packaged in a cabinet rack mounting panel unit 19 "standard for the simple replacement of an existing repeater Existing peripheral devices, such as the duplexer and the amplifier, etc., can still be used as-is Modulation modes: conventional FM, 12.5 kHz digital C4FM (V / D mode) , VFR mode, DFR mode) *
VHF or UHF operation (cross band capability) / dual reception / dual transmission (DRDT)
The AMS (Automatic mode selection) function automatically recognizes the signal as C4FM or conventional digital FM, and then the DR 2X repeater retransmits the signal using the predefined communications mode.

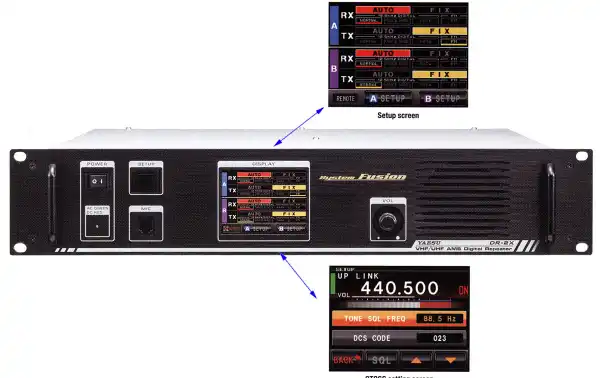

3.5-inch full-color touch panel operation
Extremely reliable, high RF output power: 50W / 20W / 10W
Emergency operation: supports the power operation of the automatically switched backup battery.
The front panel microphone connector is provided for use in the repeater transmitter tests and allows its use as a base station.
Large built-in monitor speaker with front panel volume control
Full integration with existing repeater controllers using the 15-pin rear I / O connection.
* System Fusion is not compatible with the D STAR GMSK digital format.

Características

• CTCSS adjustment screen
• Other features
• Internal AC power supply
• 19 "rack mount capability
• High stability ± 2.5ppm TCXO included
• DSQ signaling feature (digital mute code)
Signaling characteristic CTCSS and DCS
• Característica de señalización DSQ (código digital de silenciamiento)
ID announcement feature
• Característica de señalización CTCSS y DCS
Control interface remote / external
• Característica de anuncio de ID
Base station operation
• Interfaz de control remoto / externo
Timeout timer
• Operación de la estación base
Upgradeable firmware
• Temporizador de tiempo de espera
Supplied accessories DR 2X / XE
• Firmware actualizable
AC cable
• DC cable for backup battery
• PC connection cable SCU 20
• Rubber Feet (4)
• DR Options 2X / XE
• DTMF Microphone MH 48A6JA
• Handheld Microphone MH 42C6J
• Voice Guidance Unit FVS 2
• DR 2X / XE
• Range Specifications frequency 144 to 148 MHz, 430 to 450 MHz
• Channel steps 5 / 6.25 kHz
• Type of emission F1D, F2D, F3E, F7W
• Frequency stability ± 2.5 ppm (4 ° F to 140 ° F (20 ° C to 60 ° C
• Antenna impedance 50 ohms
• AC supply voltage 100 to 240 V
• DC 11.7 to 15.8 V, negative earth
• Current consumption:
• 1, 5 A (reception)
• 13 A (band 50 W TX, 144 MHz)
• 14 A (50 W TX, 430 MHz band)
• Operating Temperature 4 ° F to 140 ° F (20 ° C to 60 ° C)
• Dimensions: 19 "(W) × 3.5" (H) × 15 "(D)
• Weight: 22.05 lbs (10 kg) approximately
• Transmitter
• RF Power Output 50/20/5 W
• Modulation Type F1D, F2D, F3E Modulating variable reactance
• F7W 4FSK (C4FM)
False emission At least 60 dB below
• Modulación tipo F1D, F2D, F3E Modulación de reactancia variable
Receiver
• F7W 4FSK (C4FM)
Circuit type Double super heterodyne conversion
• Emisión falsa Al menos 60 dB por debajo
Intermediate frequencies 1: 47.25 MHz, 2nd: 450 kHz
• Receptor
Receiver sensitivity
• Tipo de circuito Doble conversión super heterodino
0.3 .V (Digital 2 m / 70 cm) BER 1%
• Frecuencias intermedias 1: 47.25 MHz, 2do: 450 kHz
0.2 .V (FM 2 m / 70 cm) 12 dB SINARD
• Sensibilidad del receptor
Adjacent channel selectivity Better than 65 dB TYP (20 kHz offset)
• 0.3 .V (Digital 2 m / 70 cm) BER 1%
Selectivity FM 12 kHz / 35 kHz (6 dB / 60 dB)
• Intermodulation better than 65 dB TYP (20/40 kHz offset)
• 4 W audio output (4ohm., THD 10%, 13.8 V; internal speaker)
• Selectividad FM 12 kHz / 35 kHz ( 6 dB / 60 dB)
• Intermodulación mejor que 65 dB TYP (offset de 20/40 kHz)
• Salida de audio 4 W (4ohm., THD 10%, 13.8 V; altavoz interno)
