NX-3820E UHF transmitter 406 - 470 Mhz. Analog and Digital NXDN or DMR

KENWOOD NX-3820E UHF mobile station 406.10 - 470 Mhz.DMR (Digital Mobile Radio) and NEXEDGE. These digital systems offer significant advantages over analog, such as greater spectral efficiency, greater resistance to noise and interference, and additi more Manufacturer: kenwood Reference NX3820EB

available
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

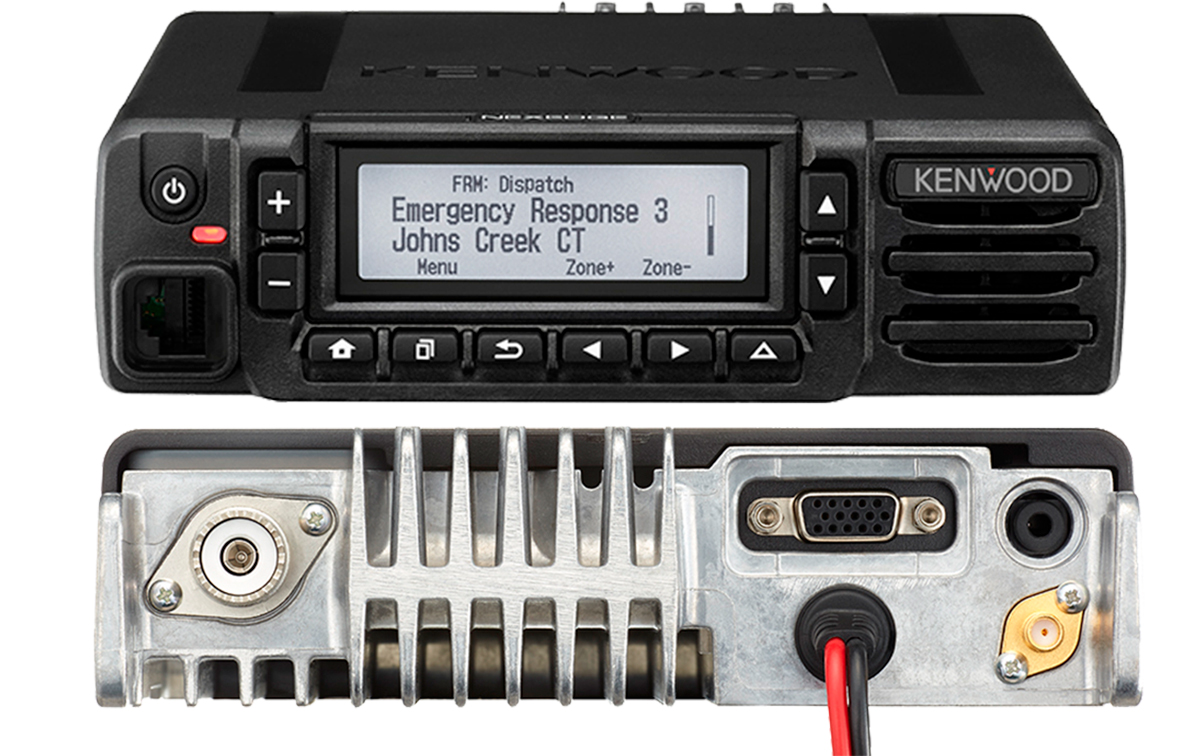

Kenwood NX-3820-EB

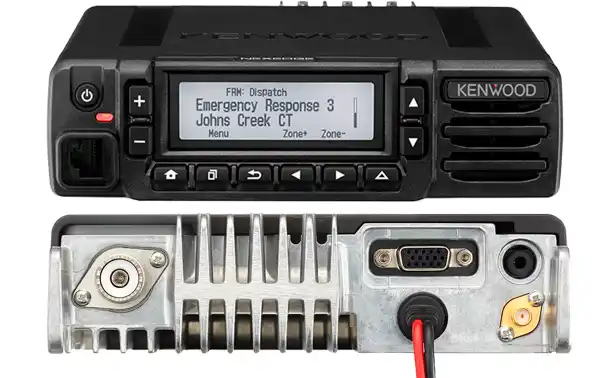

The Kenwood NX-3820E mobile radio station is a versatile communication equipment that operates in the UHF frequency band, specifically in the range from 406.10 to 470 MHz. Some notable features of this device are:

UHF Frequency Band: This frequency range is commonly used in radio frequency applications for short to medium distance communications, being ideal for urban environments and more densely populated areas.

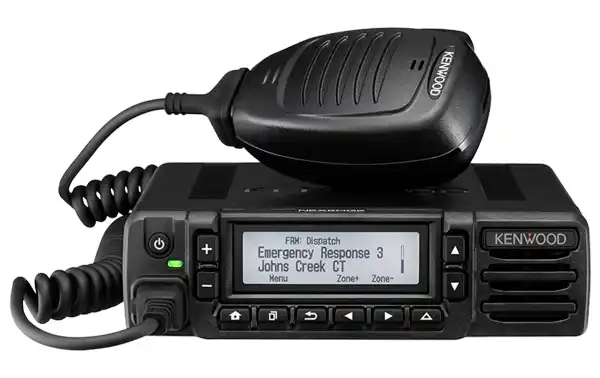

Analog and Digital Mode: The ability to operate in analog and digital mode offers great flexibility. Analog mode is commonly used in many traditional communication networks, while digital mode provides greater audio clarity, spectral efficiency and advanced data transmission options.

Versatility and Compatibility: The ability to operate in both operating modes allows this station to be compatible with a wide range of communication systems, adapting to environments where both analog and digital systems are used.

Professional Equipment: Equipment like the Kenwood NX-3820E are commonly used in professional applications, such as security applications, law enforcement, service companies, and any other situation where a reliable communication system is required.

The Kenwood NX-3820E is a versatile and adaptable mobile radio station that operates in the UHF band, allowing it to operate in analog and digital modes, thus providing flexibility and compatibility with various communication environments. This makes it ideal for professional environments that require advanced communication capabilities and broad adaptability.

The user can choose the digital mode in which they wish to operate with the station, which provides flexibility based on communication needs and preferences. This allows users to gradually migrate from analog to digital systems or vice versa, depending on their requirements. The Kenwood NX-3820E mobile station is a robust and versatile option that combines the best of both worlds by offering communication capabilities in both analog and digital modes (DMR and NEXEDGE). This makes it an ideal option for environments where equipment and systems from different technologies coexist and for those looking to take advantage of the benefits of digital technology without leaving behind compatibility with older analog systems. See + Information in PDF

! DIGITAL DMR UHF 406-470 station!
Por otro lado, la emisora también es compatible con la tecnología digital en dos estándares populares: DMR (Digital Mobile Radio) y NEXEDGE. Estos sistemas digitales ofrecen ventajas significativas sobre el analógico, como una mayor eficiencia espectral, mayor resistencia al ruido y la interferencia, y características adicionales como encriptación de voz y mensajes de texto.

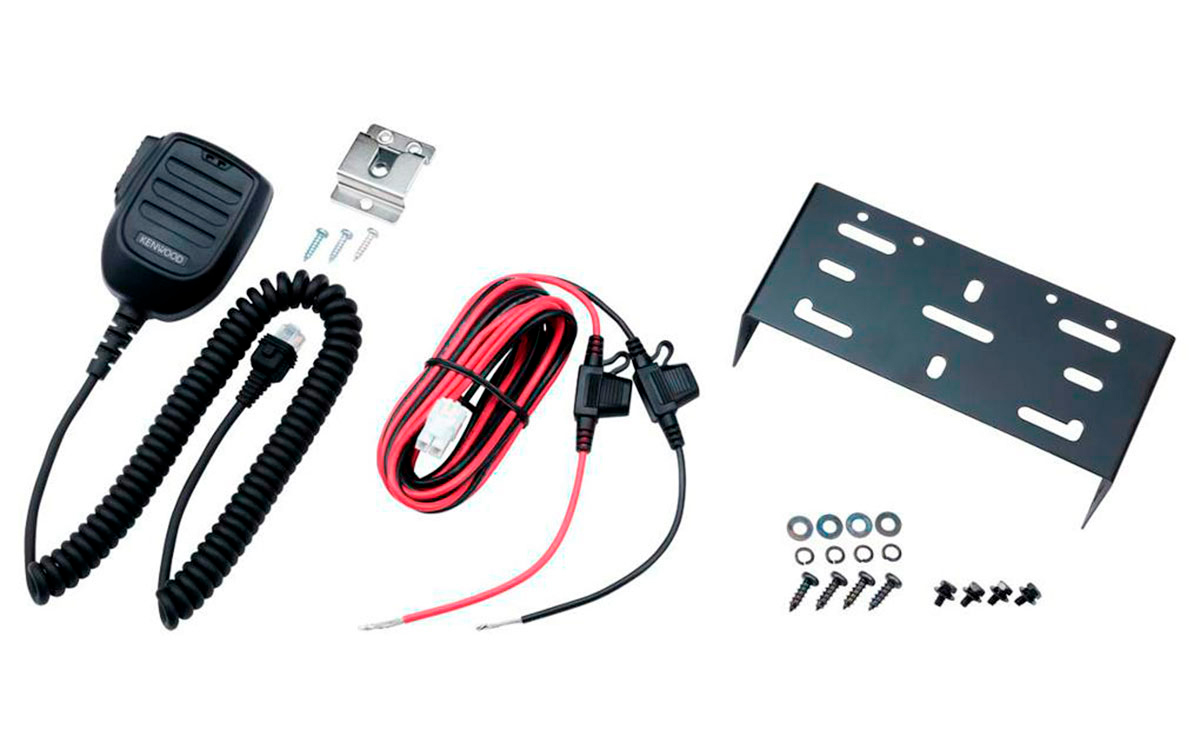

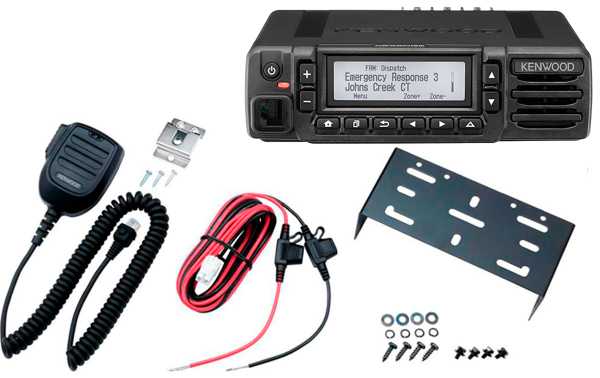

Kit content
  • 1 NX-3820EB transmitter
  • 1 Transmitter Support
  • 1 KMC-60 handheld microphone
  • 1 Power cable

El usuario puede elegir el modo digital en el que desea operar con la emisora, lo que proporciona flexibilidad en función de las necesidades y preferencias de comunicación. Esto permite a los usuarios migrar gradualmente de sistemas analógicos a digitales o viceversa, dependiendo de sus requerimientos.

El usuario puede elegir el modo digital en el que desea operar con la emisora, lo que proporciona flexibilidad en función de las necesidades y preferencias de comunicación. Esto permite a los usuarios migrar gradualmente de sistemas analógicos a digitales o viceversa, dependiendo de sus requerimientos.

Frecuencias DIGITAL DMR UHF 406-470 Mhz

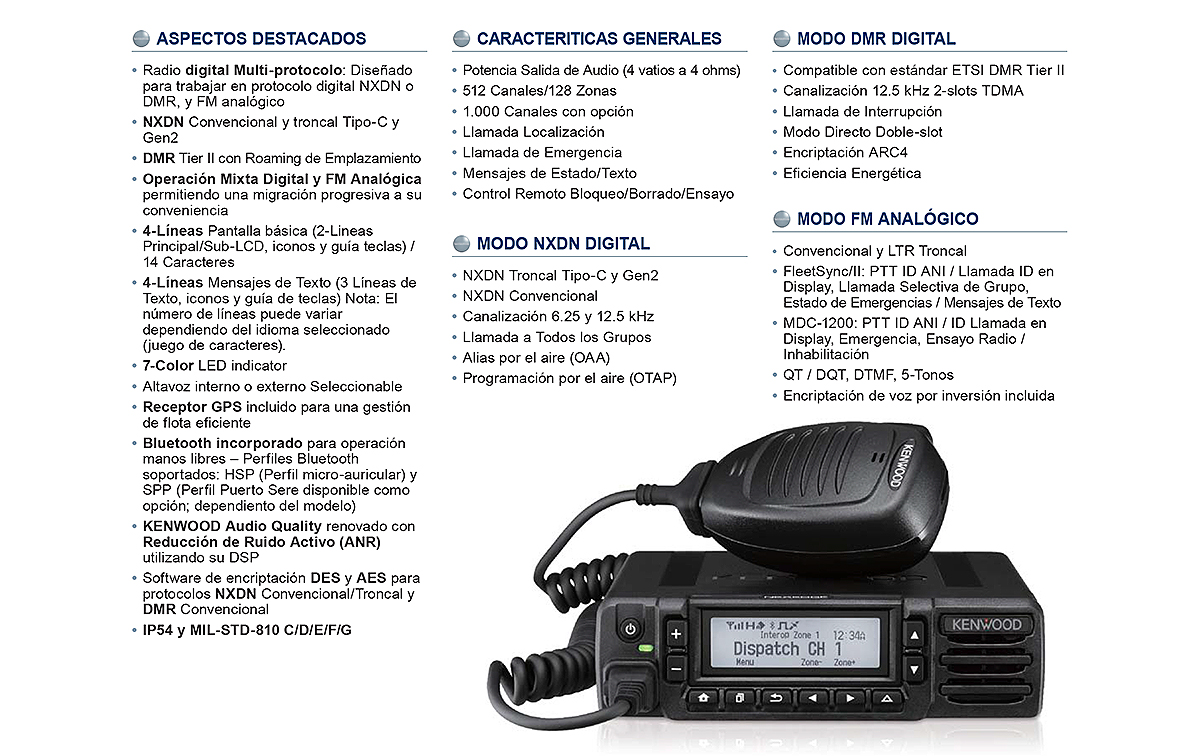

Characteristics

  • DIGITAL DMR UHF Frequencies 406-470 Mhz
  • Power 5-25W
  • Channels 1000
  • Number of zones 128
  • AMBE 2 VOCODER
  • Fleetsync Compatibility
  • D-sub 15 option port
  • Complies with ETSI European Standard, analog and digital regulations
  • Alphanumeric display 13 segments, 10 characters
  • Priority Scan
  • DMR Tier II Conventional
  • Compatible with ETSI DMR Tier II standard
  • Channeling 12.5 kHz 2-slots TDMA
  • Interrupt Call
  • Location Roaming
  • Double-slot Direct Mode
  • ARC4 encryption
  • Energy efficiency
  • PC programmable
  • Emergency call
  • Status/Text Messages
  • Remote Control Lock/Draft/Test
  • Emergency Key
  • 7-color LED indicator used to display various statuses of the radio
  • Multi-protocol digital radio:
  • Designed to work in NXDN or DMR digital protocol and analog FM
  • Optional GPS (Using the 15 pin D-SUB connector)
  • KENWOOD Audio Quality renewed with Active Noise Reduction (ANR) using its DSP
  • IP54 and MIL-STD-810 C/D/E/F/G/H certificates
  • Maximum 260 Channels per radio, 128 Zones per radio and 250 Channels per zone
  • Sound output 6 W (max) / 4 W (nominal) at 4 ohms
  • Operating voltage 13.2 VDC ±15%
  • Female PL antenna connector
  • Dimensions 160 x 43 x 137.7 mm (protrusions not included)
  • Net weight) 1.21kg

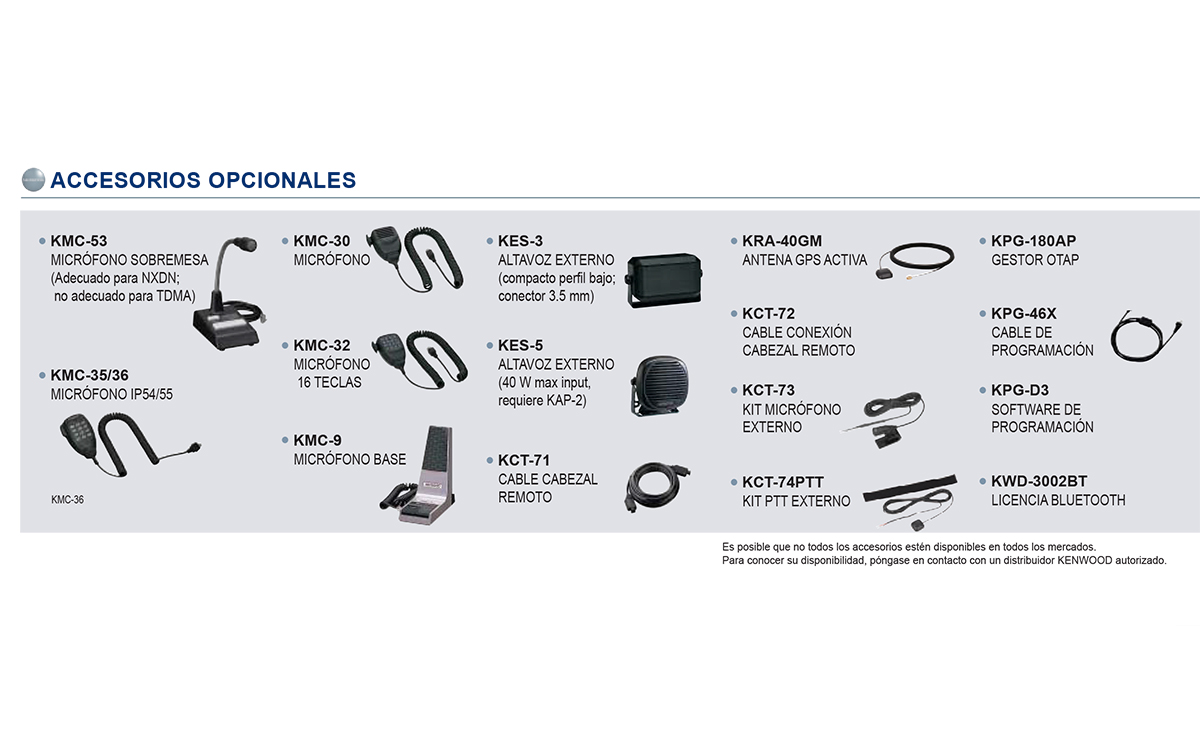

Accessories 1/1
