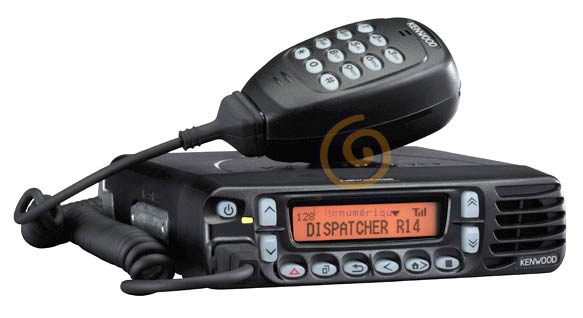

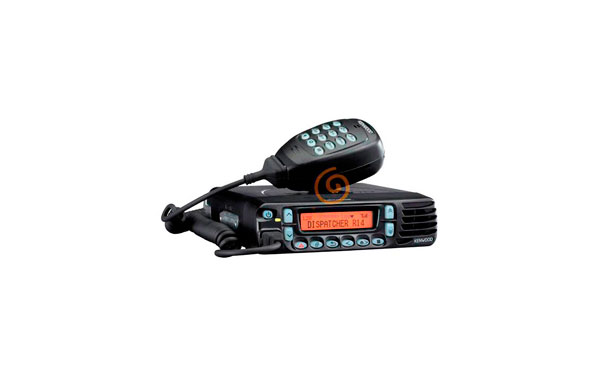

NX-700E KENWOOD Mobile Transceiver Digital / Analog VHF 136 - 174 MHz NEXEDGE NX-700E KENWOOD lets you enjoy digital communications in all its splendor, brightness, sharpness and confidentiality are the three major ranks of this new system. K more Manufacturer: kenwood Reference NX700E
KENWOOD NX-700E Digital Mobile / Analogue VHF Transceiver 136 - 174 MHZ NEXEDGE
KENWOOD NX-700E allows you to enjoy digital communications in all its splendor, clarity, clarity and confidentiality are the three major ranges of this new system. Kenwood gives us its new professional team to adapt to the new technology.
Digital Air Interface NXDN
AMBE 2 Vocoder with natural sound digital voice
Works in NXDN Digital Conventional and FM Analog mode, even on the same channel
Automatic Reception Mode (Digital or Analog)
Conventional Digital Mode and Digital Trunk
Multi-site Digital Trunk, up to 60000 GIDs and 60000 UIDs per network
Network Multi-emplazamiento IP compatible
Real 6.25KHz channeling
Includes Radio-to-Radio Mode (no need for repeater)
Requires Optional Microphone
Frequency range - Type E 136-174 MHz
Number of channels 512
Conversation groups Yes
Channel frequency dispersion 70 MHz
Analogue channel spacing - 25kHz / 20kHz / 12.5kHz
Channel Spacing - Digital - Wide / Narrow 12.5 kHz / 6.25 kHz
Antenna impedance - 50 Ohm Yes

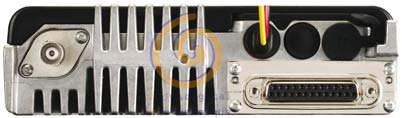

BNC Antenna Connector
Frequency Tolerance? 1 ppm (-30? C to 60? C)
Operating temperature -30? C to 60? C
Operating voltage 13.2 V DC (10.8 ~ 15.6 V DC)
Dimensions 160x45x157 mm (Radio only)
Weight (net) 1.38kg
Receiver specifications
Selectivity Adjacent Channel (Analog) 78 dB at 25 kHz 76 dB at 20 kHz 68 dB at 12.5 kHz
4 Watt audio output power with distortion less than 3%
Analog Intermodulation - 70dB
Sensitivity 12.5KHz / 6.25KHz = -2dB microvolt / -5dB microvolt at 1% BER, 0.28 microvolt / 0.20 microvolt at 3% BER
Sensitivity - EIA 12 dB SINAD 0.25? V
Sensitivity - EN 20 dB SINAD -3dB? V
Spurious response rejection 80 dB
Transmitter specifications
Power output of radio frequency 1 W - 25 W
FM noise (EIA) Analog mode - 25KHz / 20KHz / 12.5KHz - 50dB / 50dB / 45dB
Modulation distortion Less than 3%
Analog modulation limitation - 25KHz / 20KHz / 12.5KHz -? 5KHz /? 4KHz /? 2.5KHz
Spurious emission (EN) -36 dBm% u2264 1 GHz -30 dBm> 1 GHz
