LEMM AT50 Dipole Antenna bands 40 - 80 - 160 meters (7 Mhz. - 3.5 Mhz....

LEMM AT-50 Wire Dipole Antenna with coils Frequencies (7 Mhz, 3.5 Mhz, 1.8 Mhz.) Band of 40-80-160 meters. Length 32.5 meters. The Lemm AT-450 wire antenna with coils is supplied complete with a center balun and its mounting bracket, as well more Manufacturer: lemm Reference LEMMAT50

Make the first review

LEMM AT50 Dipole Antenna bands 40 - 80 - 160 meters (7 Mhz. - 3.5 Mhz. - 1.8 Mhz.)

available

271,63€ incl. VAT

224,49€ w/o VAT

Delivery price from 30,25€

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

Description

LEMM AT-50

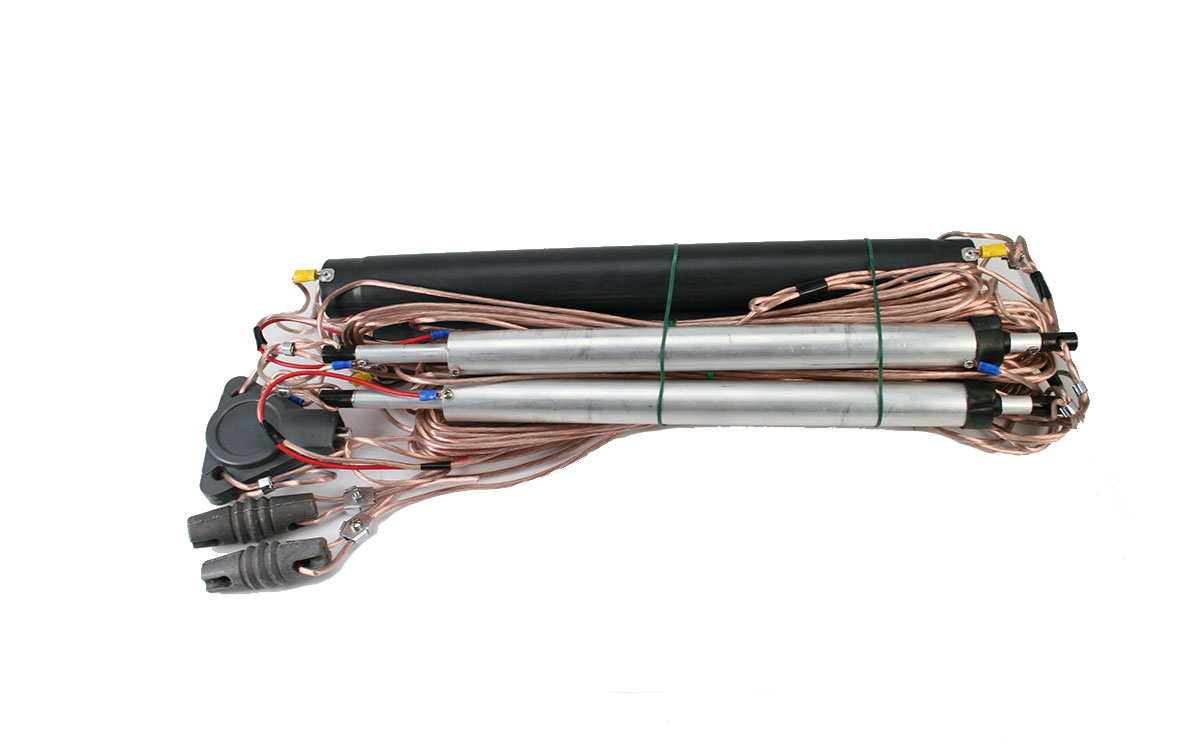

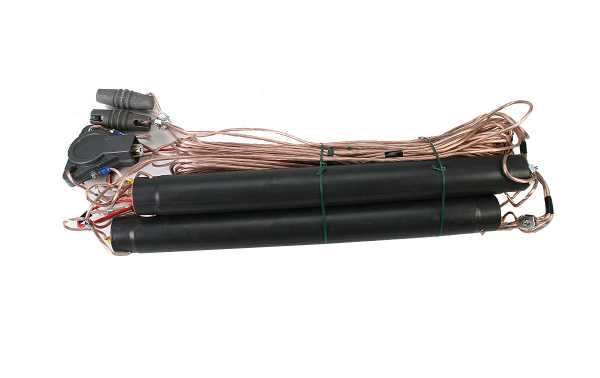

LEMM AT-50 Wire Dipole Antenna with coils Frequencies (7 Mhz, 3.5 Mhz, 1.8 Mhz.) Band of 40-80-160 meters.
Length 32.5 meters. The Lemm AT-450 coil wire antenna is supplied complete with a center balun and its mounting bracket, as well as the 2 isolators.
Maximum power 500W
WEIGHT 3,600 Kg.

LEMM AT50 Antena Dipolo bandas 40 - 80 - 160 metros (7 Mhz. - 3,5 Mhz. - 1,8 Mhz.)

Kit contents

1 AT-50 Wire Dipole Antenna
Mast mounting accessories

lemm at47 antena dipolo bandas 10-15-20 metros 28 mhz, 21 mhz,14 mhz

LEMM AT50 Antena Dipolo bandas 40 - 80 - 160 metros (7 Mhz. - 3,5 Mhz. - 1,8 Mhz.)

Characteristics

Frequencies (7 Mhz, 3.5 Mhz, 1.8 Mhz.)
Band of 40-80-160 meters.
Impedance 50 ohms
Bandwidth 200 Khz
Thread dipole format with traps
Maximum power 500 watts
Balum PL female connector
Maximum length 32.5 m.
Balum 1/1
SWR 1.4
Weight 3600 gr
