DIAMOND X-5000 ORIGINAL DIAMOND ANTENNA VHF 144 / UHF 430 / 1200 MHZ

ORIGINAL JAPANESE TRIBAND DIAMOND BASE antenna X-5000. Valid antenna to transmit and receive in two bands VHF 144 / UHF 430 / 1260 Mhz. It has three radials. It can be installed on mast diameter 30 mm to 60 mm. Connection type N female. Length more Manufacturer: diamond Reference X5000

Make the first review

diamond
DIAMOND DIAMOND ANTENNA ORIGINAL 5000 X 144 VHF / UHF 430/1200 MHZ X5000 X5000 X5000 X5000 X5000 DIAMOND DIAMOND ANTENNA ORIGINAL 5000 X 144 VHF / UHF 430/1200 MHZ DIAMOND DIAMOND ANTENNA ORIGINAL 5000 X 144 VHF / UHF 430/1200 MHZ DIAMOND DIAMOND ANTENNA ORIGINAL 5000 X 144 VHF / UHF 430/1200 MHZ
DIAMOND DIAMOND ANTENNA ORIGINAL 5000 X 144 VHF / UHF 430/1200 MHZ
available
139,15€ incl. VAT
115,00€ w/o VAT
Delivery price from 30,25€

DIAMOND X-5000

diamond x30 ORIGINAL

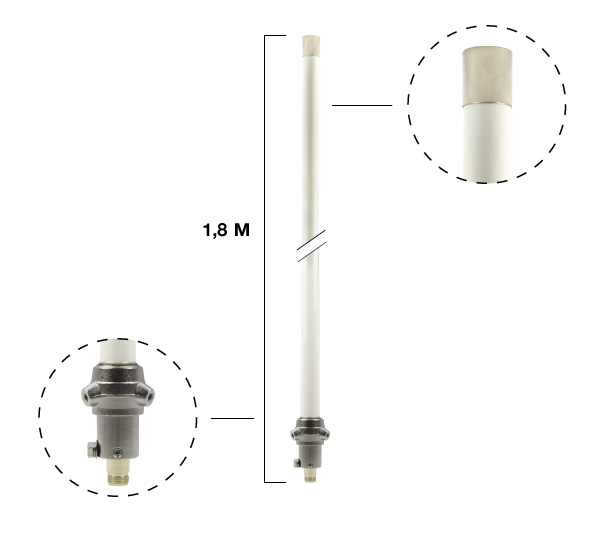

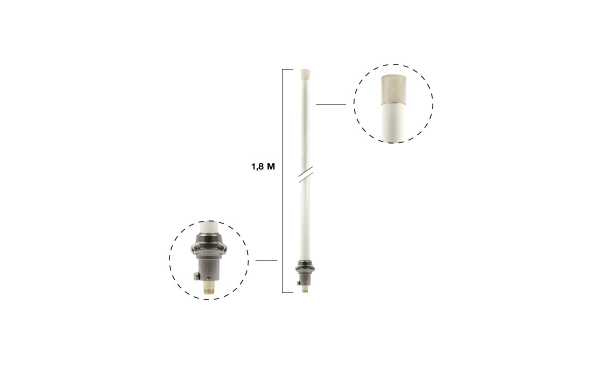

Triband base antenna DIAMOND X-5000 ORIGINAL JAPANESE. Antenna valid for transmitting and receiving on 144 / 430 / 1200MHz bands. It has three radials. It can be installed on a mast with a diameter from 30 mm to 60 mm. Connection Type: N female. Antenna length: 1.8 m White fiber. One section.

base tribanda diamond original japonesa x 5000

Kit Contents DIAMOND X-5000
  • 1 White fiber antenna
  • 2 Brackets for mast from 30 mm to 60 mm
  • 3 Radials with 19 cm length
  • 1 English installation assembly

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

You might consider the adapter to PL see link click here <<< >>>

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

Features

  • Impedance: 50 Ohm
  • Gain VHF: 4.5 dB
  • VHF Gain: 8.3 dB
  • UHF Gain: 11.7 dB
  • Maximum power: 100 watts
  • Wave length VHF 6/8 (144 Mhz)
  • Wave length UHF 3 x 5/8 (430 MHz)
  • Wave length UHF 7 x 5/8 (1200 Mhz)
  • Antenna length: 1.8 meters
  • Weight: 900 grams
  • SWR: 1.5
  • Connector: N female
  • Sections: 1
  • Radials: 3 with a length of 19cm
  • Radials Material: Stainless Steel
  • Maximum resistance to wind: 60 m / sec (135 MPH)
