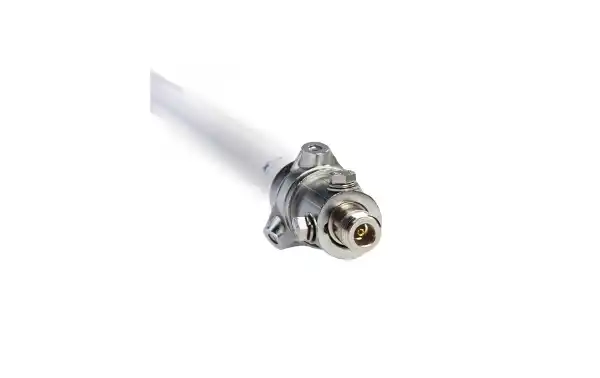

DIAMOND X-50 Dualband VHF / UHF base antenna. ORIGINAL JAPANESE

Dualband base antenna DIAMOND X-50 ORIGINAL JAPANESE. Antenna valid for both VHF / UHF bands. more Manufacturer: diamond Reference X50N

(4,7) 3 Reviews

diamond
DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band. DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band.
DIAMOND X-50 Original Diamond Antenna Japanese Bi- VHF 144 MHz-430 MHz UHF band.
not available
68,85€ incl. VAT
56,90€ w/o VAT
Delivery price from 30,25€

DIAMOND X-50

diamond x30 ORIGINAL

Dualband base antenna DIAMOND X-50 ORIGINAL JAPANESE. Antenna valid for transmitting and receiving on both VHF / UHF bands. It has three radials. It can be installed on a mast with a diameter from 30 mm to 60 mm. Connection Type: N female. Antenna length: 1.7 m White fiber. One section.

antena base bibanda diamond original japonesa x 50

Kit Contents DIAMOND X-50
  • 1 White fiber antenna
  • 2 Brackets for mast from 30 mm to 60 mm
  • 3 Radials with 19 cm length
  • 1 English installation assembly

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

You might consider the adapter to PL see link click here <<< >>>

antena base bibanda diamond original japonesa x 30 .antena valida para transmitir y recibir en dos bandas vhf/uhf. dispone de tres radiales.se puede instalar en mastil diametro 30 mm a 60 mm. tipo de conexion n. longitud 1,3 m. un tramo.

Features

  • Impedance: 50 Ohm
  • VHF Gain: 4.5 dB
  • UHF Gain: 7.2 dB
  • Maximum power: 200 watts
  • Wave length VHF 6/8 (144 Mhz)
  • Wave length UHF 5/8 (430 Mhz)
  • Antenna length: 1.7 meters
  • Weight: 900 grams
  • SWR: 1.5
  • Connector: N female
  • Sections: 1
  • Radials: 3 with a length of 19cm
  • Radials Material: Stainless Steel
  • Maximum resistance to wind: 60 m / sec (135 MPH)

Accessories 1/5

Reviews

12-10-2024 | 14:28

Antenne installée depuis des années-parfaite en sensibilité et gain émission- résiste bien au mistral dans ma région

31-07-2023 | 08:06

Bon produit, facile à installer, fait le job et plutôt discrete Par contre, après 1 an installée sur le toit, la couleur blmanche de l\'antenne part en possière et laisse les mains couvertes d\'une fine couche de peinture blanche.

21-06-2023 | 11:00

OK
