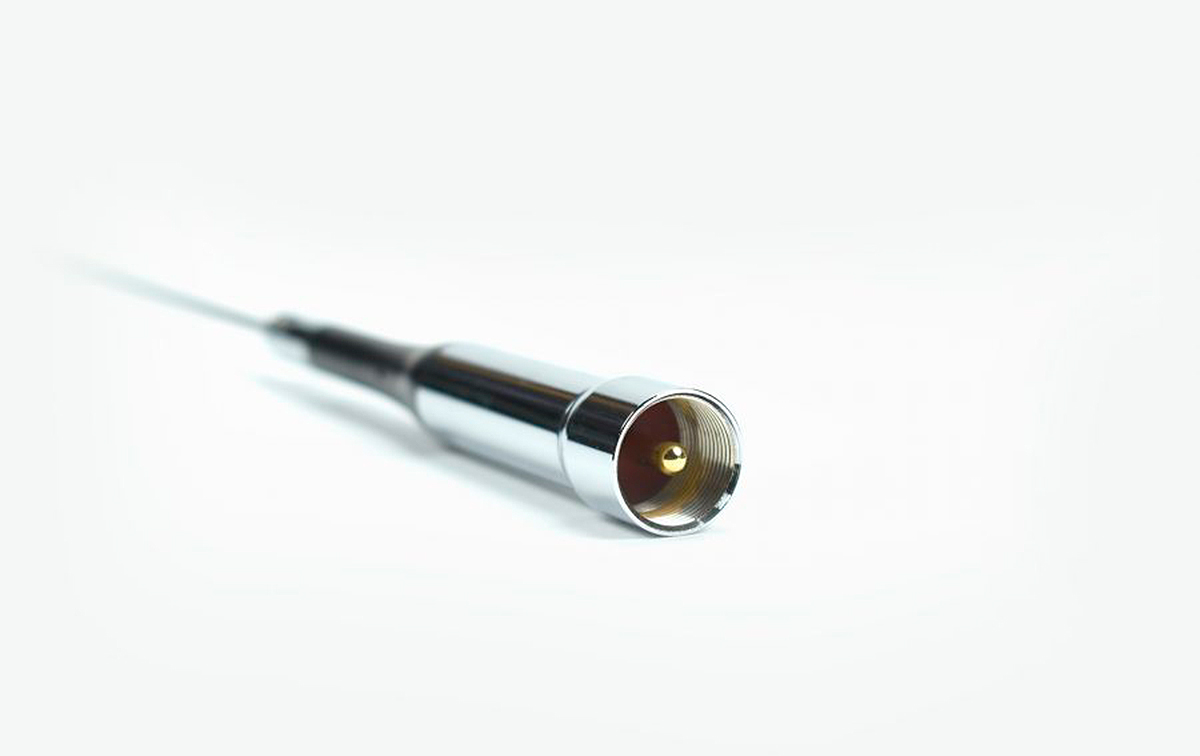

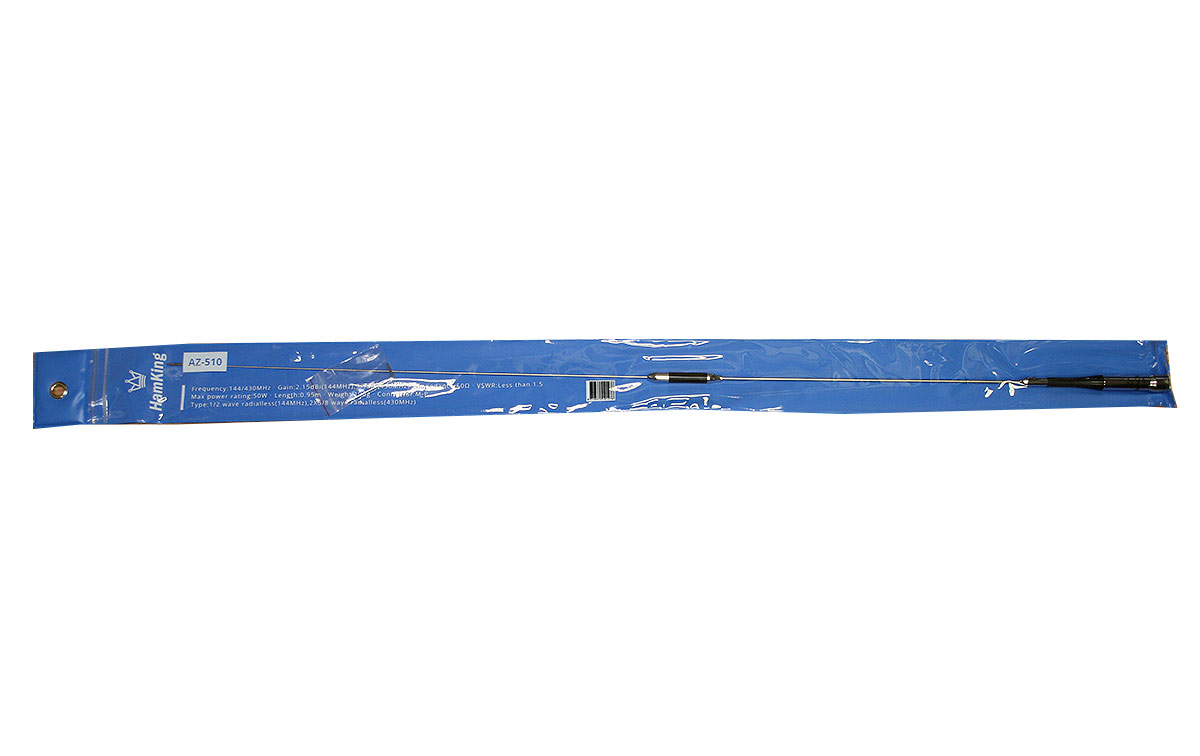

HAMKING HKAZ510 mobile antenna bibanda 144/430 VHF / UHF Length 95 cm

HKA-Z510

The HamKing AZ 510 mobile antenna is tuned to 144 MHz and 430 MHz. The antenna can sometimes be optimized with a small VSWR setting by moving the antenna up or down at the base end. The length is 95 cm. The transmission power is a maximum of 50 watts.

features

• Frequency band: VHF / UHF /
• Frequency: 144/430 MHz
• Gain: 2.15 dBi (144 MHz) / 5.5 dBi (430 MHz)
• VSWR: <1.5
• Power: 50 watts
• Impedance: 50 ohms
• Type: 1/2 wave without radio (144 MHz), 2x5 / 8 wave without radio (430 MHz)
• Radiation: omnidirectional
• Weight: 120 grams
• Length: 95 cm
• Connector: PL male
