FC 3002 ACECO Frecuencimetro digital

FC 3002 ACECO Frecuencimetro digital Food with loader and kitchenware of NI Cd. Aerial telescopic. Prompt of battery empty and medidor of intensity of signal. Detector of synchronization ultra sensitive. Measurement of frequency, period and auto a more Manufacturer: aceco Reference FC3002ACECO

Make the first review

aceco
FC3002ACECO
discontinued

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

DESCRIPTION of the PRODUCT

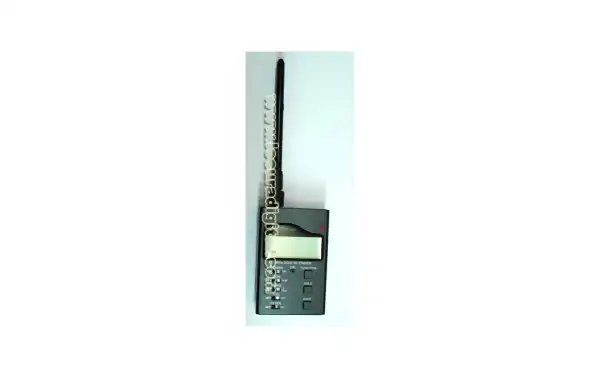

ref: FC3002ACECO FC 3002 ACECO Frecuencimetro digital



fc-3002



- Food with loader
- Battery of NI Cd (6 hours of autonomy.)
- Aerial telescopic
- Prompt of battery empty and medidor of signal.
- Detector of synchronization ultra sensitive
- Measurement of frequency, period and auto advance
- Adds protocol CI V for capture of frequencies in receiving Scanners ICOM and AOR.

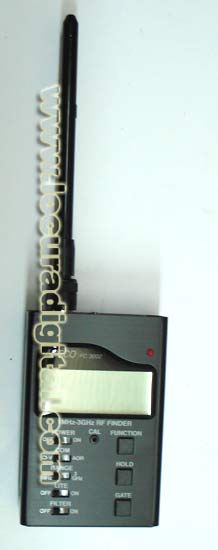

Dress front frecuencimetro ACECO FC 3002

ACECO FC3002ACECO



Content of the kit

ACECO FC3002ACECO

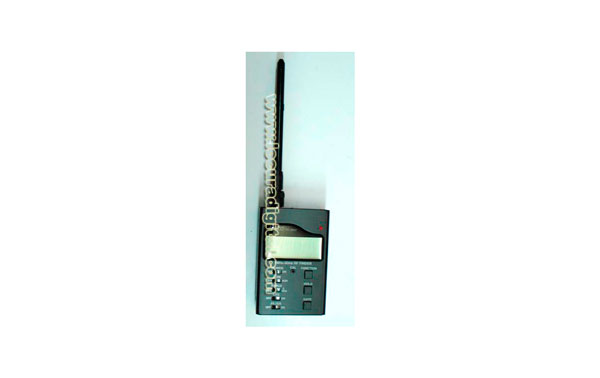

Dress front frecuencimetro ACECO FC 3002

ACECO FC3002ACECO



Dress superior frecuencimetro ACECO FC3002

ACECO FC3002ACECO

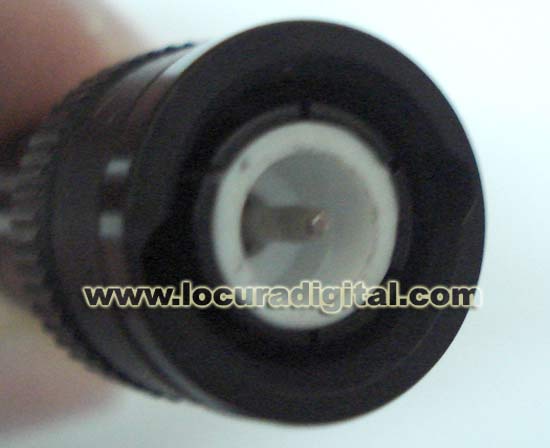

Connector of the aerial

ACECO FC3002ACECO




Connection between Receiving AOR and FC 3002

fc-3002 AOR




FEATURES

 - Frequency & period: 1Mhz ............. 3Ghz
 - Impedance: 50 Ohms
 - Digits: 10 LCD
 - Solving: 0.1 Khz
 - T.Disparo: 4
 - Smeeter: 16 Segments
 - Filter Noise: If
 - Blockade: Auto
 - Buzzer: If
 - Lighting: If
 - RF Finder: If
 - Sensitivity    < 0,8mV to 100Mhz
                          < 6,0mV to 300Mhz
                          < 7,0mV to 1Ghz
                          < 100mV to 3Ghz





SENSITIVITY OF ENTRY

 - Amplifier: 50 Ohm
 - Impedance: 50 Ohm VSWR except which 2:1
 - Rank: 10 Mhz - 3 Ghz
 - Sensitivity: More less than 2 mV to 100 Mhz - 1.2 Ghz
 - Entry maxima: 15 dBm





RF SIGNAL STRENGTH BARGRAPH

Frequency
First segment
Full scale
27 Mhz
7 mV
100 mV
150 Mhz
5 mV
90 mV
800 Mhz
10 mV
200 mv



FREQUENCY DISPLAY RESOLUTION

Rank
Gate cheats (seconds )
LSD
Sample display
300 Mhz
0.0625
10 Hz
300.00000 Mhz
0.25
1 Hz
300.000000 Mhz
1.0
1 Hz
300.000000 Mhz
4.0
0.1 Hz
300.0000000 Mhz
3 Ghz
0.0625
1000 Hz
300.000 Mhz
0.25
100 Hz
300.0000 Mhz
1.0
10 Hz
300.00000 Mhz
4.0
10 Hz
300.00000 Mhz
