PRESIDENT WASHINGTON radio station - AM/FM/SSB 10/12 meters power 80 W

PRESIDENT WASHINGTON

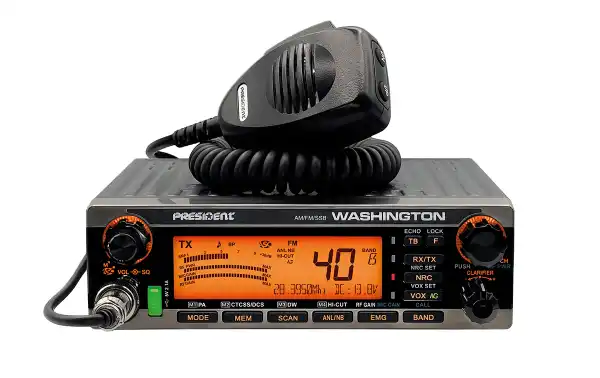

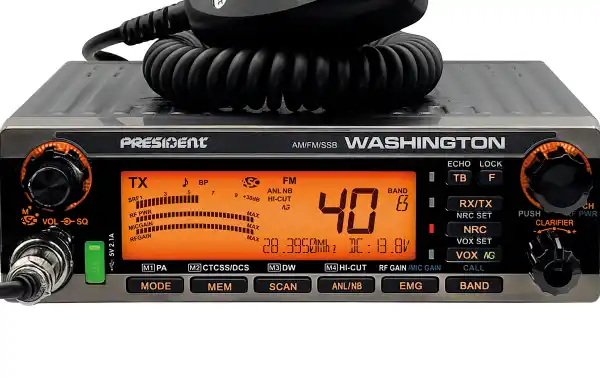

The PRESIDENT WASHINGTON Station is a 10/12 meter HF radio station that operates in the bands 24,890 to 24,990 MHz and 28,000 to 29,700 MHz. It is equipped with AM, FM, USB and LSB transmission modes, which makes it versatile and Suitable for a variety of communication applications. It offers a power of 35 AM 80 W PEP, USB and LSB and approximately 50 W in FM. It works with a 12 VDC input and has a large LCD display that provides clear visualization of parameters such as channel, frequency, modes, S-Meter and SWR. It has 7 different screen colors, antenna gain and microphone. It is a versatile device that offers multiple functions for communication. Includes AM, FM and USB sideband operation modes, microphone gain and radio frequency controls, scanner to automatically search for channels, clarifier to adjust frequency, Roger Beep when ending transmissions, 38 CTCSS tones and 104 DCS codes for privacy, 7 lighting options for the LCD display, SWR meter to verify the antenna, double listening to monitor two channels and 4 memory channels for frequent configurations.

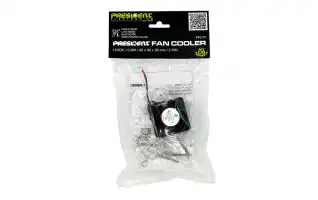

Note: Not included, fans are optional.
Note: The power in AM your measurement will depend on the type of SWR meter, it can give a reading of 20 w, 35 w, 45 w, etc.

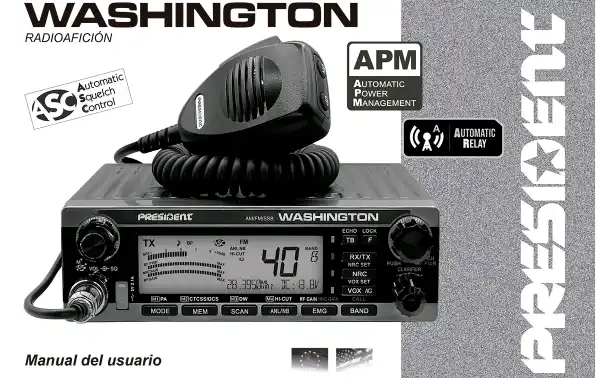

Manual in Spanish download PDF here

• 1 Station WASHINGTON
• 1 Power Cable 12 volts
• 1 Microphone
• 1 Bracket type support
• 1 Microphone support

Characteristics

• - Frequencies 28,000 MHz to 29,700 MHz
• - USB/LSB power 80 PEP watts
• - AM power 35 watts ( The AM power measurement will depend on the type of SWR meter, it can give a reading of 20 w, 35 w, 45 w, etc. 80 PEP)
• - Channel selector switch and up/down
• - FM power 50 watts
• - Volume and on/off adjustment
• - 7 screen colors
• - Manual squelch and ASC
• - Large multifunction LCD screen
• - Frequency indication
• - Level indicator
• -Public Address
• - Vox function (hands-free)
• - ANL filter (integrated), NB and HI-CUT
• - RF Gain/Mic Gain
• - Clarifier
• - Search for channels (scan) and memories
• - Temperature protection
• - CTCSS (38 shades)
• - DCS (104 codes)
• - Front light dimming
• - Key function key
• - Switchable key beep
• -Roger Beep
• - AM/FM/LSB/USB/CW mode switch
• - Double listening
• - Keyboard lock
• - SWR (Power/SWR reading)
• - Channel 9/19 preselection
• - TOT (Time Out Timer) adjustable
• - External HP socket
• - Maximum consumption 12 amps
• - Amtena PL Female Connector
• - Supply voltage 13.8 volts
• - Measurements 185 x 172 x 56 mm
• - Weight 1.5 Kg.
