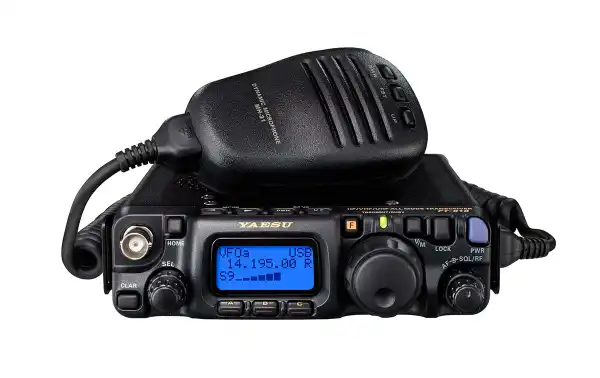

YAESU FT-818 HF/VHF/UHF Multiband Handheld Transceiver

YAESU FT-818ND

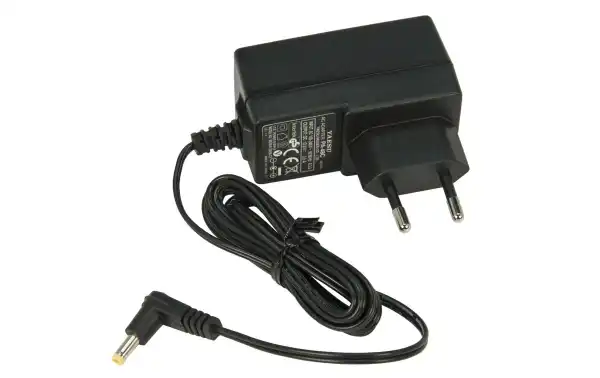

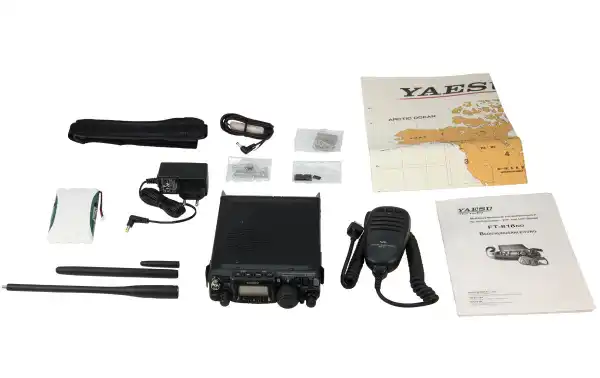

The new FT-818 incorporates all the basic and attractive features of the popular FT-817ND while providing the desired updates for radio amateurs. Also now includes as standard: Battery and charger. The supplied Ni-MH batteries (SBR-32MH) has been upgraded to now provide a higher battery capacity: 9.6v / 1900mAh.
For more than forty years, Yaesu has been a world class brand, in the design and manufacture of high performance multimode HF transmitters for use in base stations, FM mobile phones and portable transmitters.
Frequencies:
TX: 1.8 - 29.7 mHz 50-54 mHz, 144-146-430-440 mHz

Differences with FT-817
FT-818ND:
The power 6 watts.
High stability oscillator TCXO-9 incorporated.
SBR-32MH 9.6 Volts 1900 mAh High capacity NiMH battery.

The FT-818 ND is waiting for you, ready for your next excursion, camping or search in rescue operations. Compact design, great final step performance, 6 real watts of antenna output.
Despite its incredible small size (5.3 "x 1.5" x 6.5 "WHD) and light weight (approximately 900 grams), the FT-818 develops a great performance! This is the next generation with greater power amplification in all bands using the transient 2SK2975 MOS FETs to provide 6 Watts of power (AM: carries 1.5W) in the bands 160-2 meters, plus 70 cm (13.8V DC input). You can choose between four power levels. /2.2/1/0.5 W. Prepared to operate on 8 "AA" alkaline batteries, the FT-817 can also be operated from an external 13.8 Volt DC source, or from the battery pack.


Manual in English Yaesu FT-818 in PDF, 21.64 MB.

characteristics

• RX range: 110-30 MHz / 50-54 MHz / 76-108 MHz (only W-FM) / 87.5-108 MHz (EU)
• 108-154 MHz (USA) / 144-148 (146) MHz (other markets) / 430 (420) -450 (440) MHz.
• TX range: 160-6 m. 2 m / 70 cm (only Amateur bands).
• 5.1675 Mhz (Alasca emergency channel, USA version).

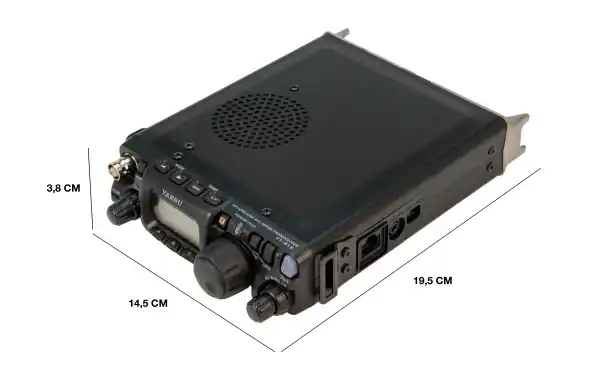

• Ultra compact: (135 x 38 x 165 mm).
• Multi-mode design: SSB, CW, AM, FM, FM-Wide (RX), 1200/9600 bps package, Digital (including PSK-31U and PSK-31L).
• Output power: 6 Watts (selection of 0.5 / 1.0 / 2.5 / 6 W).

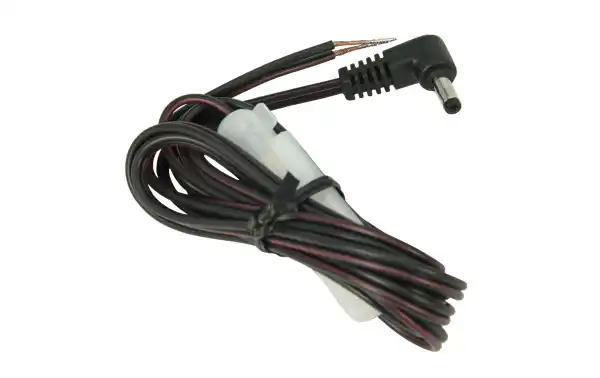

• Battery SBR-32MH capacity 1900 mAh, external DC cable included for power supply with 13.8 V.

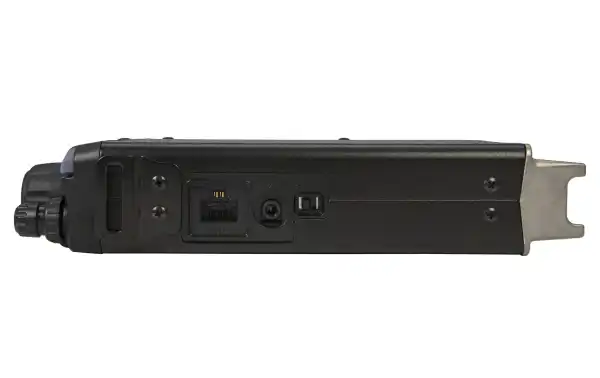

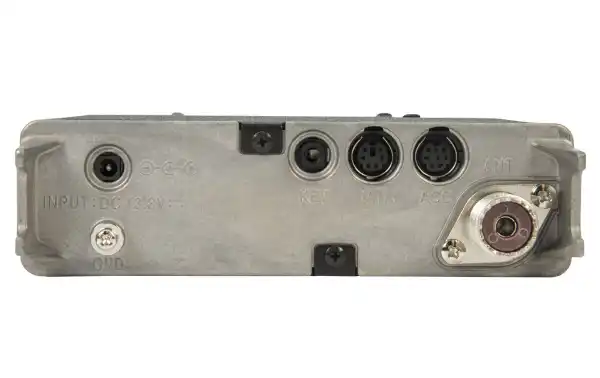

• Two ports for antennas: BCN on the front panel, UHF (type "M") on the rear panel; it must be assigned via the menu in HF, 50, 144, 430 MHz.
• Integrated in CW Electronic Keyer, Paddle Normal / Reverse connections, adjustable CW Pitch, Normal / Reverse sideband.
• Integrated in CTCSS and DCS encoded / decoded circuits.
• 208 memory channels, including 200 "regular" memories, assignable in groups of ten memories; each memory must be fixed to an alpha-numeric label.
• Liquid crystal screen with double color: choice in blue or amber.
• Recording of the five upper and lower frequency channels while we are absent from the station.
• Optional Collins Mechanical filter: 10-pole YF-122S (2.3 KHz) for SSB, 7-pole YF-122C (500 Hz) for CW.1
