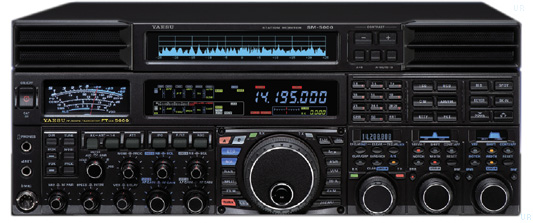

Yaesu FTDX-5000 mp
The new Yaesu FTDX-5000 mp is part of the new premium range of HF equipment designed by Yaesu with two independent receivers and the necessary accessories to meet the requirements of the most demanding operators.
The FTDX-5000 has been built on the basis of the popular FTDX9000 transceiver and a notable representative of the traditional FT-1000 series provides up to 200 watts of power output in Single Sideband, OC and FM modes (50 watts with AM carrier ) Digital Signal Processing is used throughout the design, which offers the most advanced functional characteristics of the industry in both transmission and reception.

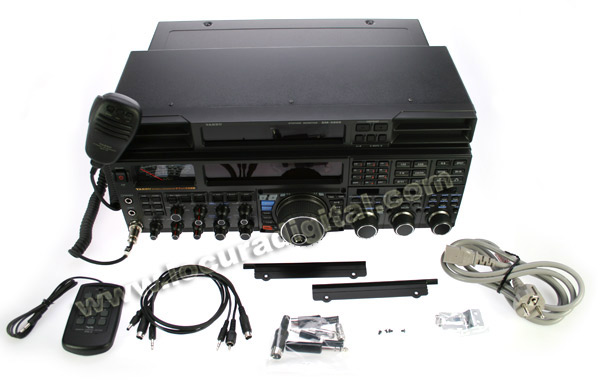

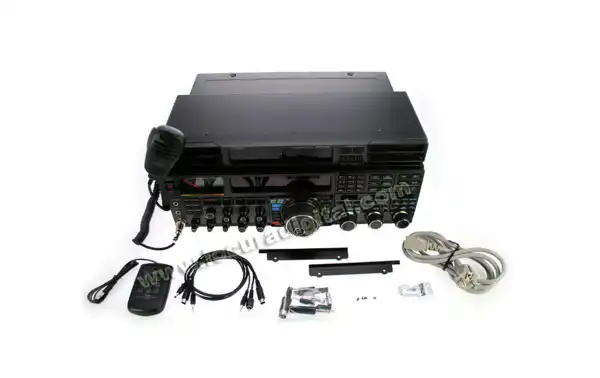

Kit contents- Yaesu FTDX-5000 mp
- SM-5000 Station Monitor
- Keypad for remote control FH-2

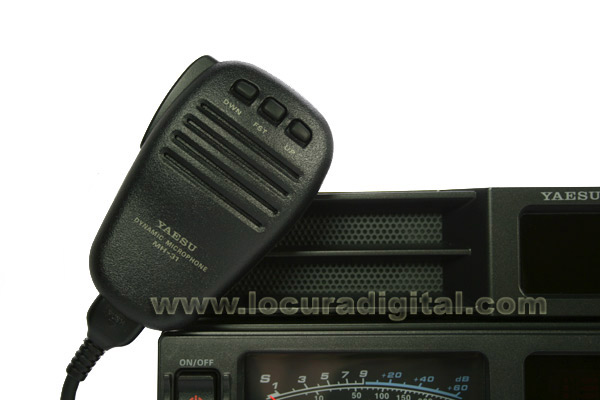

- Handheld microphone (MH-31B8) for Yaesu FTDX-5000 mp
- Power cable for transmitter
- Accessories and cables required for operation
- Manual
.jpg)
For exceptional protection against strong incoming signals near your station, Yaesu's exclusive Variable RF Filter (VRF) acts as a high-performance Preselector, ideal for multi-operator competitions. Because this filter is manually tuned, the operator can optimize sensitivity or signal suppression with the simple rotation of a knob.
The superb features of the receiver derive from its direct relationship to the legendary FTDX900, FT-1000D and FT-1000MP transceivers. It is possible to select Interception Point Optimization in the VFO input section, as well as one to three levels of radio frequency attenuation in 6 dB steps. The IPO configuration allows direct feed to the first mixer (the VFO B has a single IPO regulation), with two receivers built into each FTDX-5000 transceiver. Both VFO 1 and VFO B receivers use filtering for digital signal processing known as DSP, in addition to incorporating many of the FTDX9000's functions, such as Variable Bandwidth, IF Shift, and Contour Tuning. Band of Paso. The transceiver also features a Digital Noise Reducer and Automatic Notch Filtering, along with a manually tuned IF Notch filter. The Secondary receiver, which is used to monitor the same band as the main receiver, is ideal for viewing both sides of a stack or keeping an eye on a DX station communicating with other stations by calling area. , for instance.
.jpg)
In transmitter selection, Yaesu's exclusive Three-Band Parametric EQ allows you to precisely and flexibly adjust the waveform to complement your voice. The amplitude, the Center Frequency and the Bandwidth of the microphone can be adjusted independently for the spectrum of low, medium and high frequencies, being possible to define also the bandwidth of the transmitted signal.

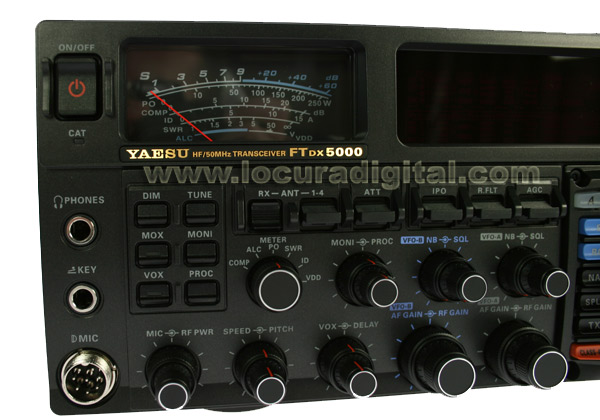

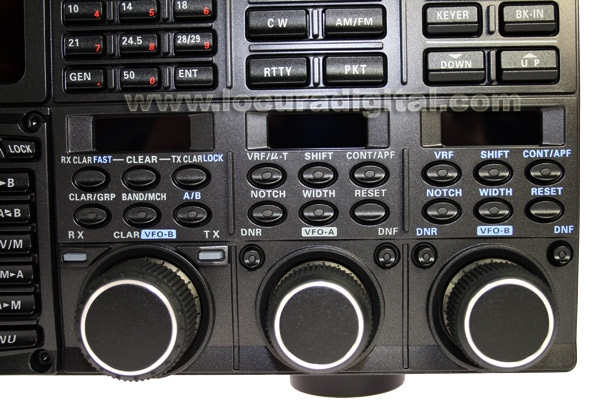

On the right side of the front panel are three special windows that display the VFO B frequency, in addition to the graphical representation of the Digital Signal Processor parameters for VFO A and VFO B. In Menu mode, these windows display programming parameters in order to facilitate their configuration.

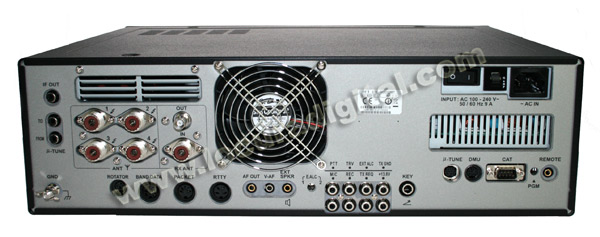

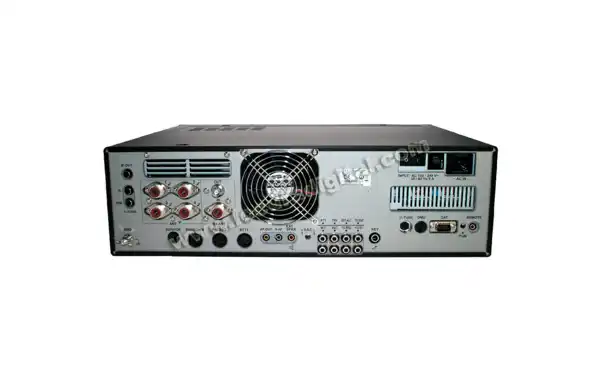

On the rear panel of the transceiver there are four antenna ports for TX and RX, as well as a port for a receiver-only collector. Assemblies on the front and rear panel are independently configured for lever input, connection to a direct key, or computer-driven tamper interface. The transceiver also includes a Digital Voice Recording system and a Memory for Morse Code messages.
The Yaesu SM-5000 station monitor adds sophistication and new capabilities to the Yaesu FTDX-5000MP. Allows you to view a presentation of a segment of the band through the receiver's VFO A. The default bandwidth allows you to see the represented signals very clearly.
.jpg)

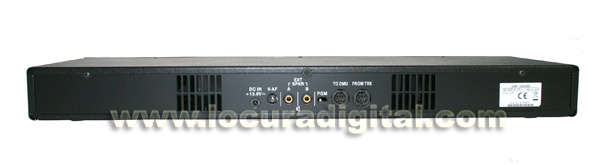

The SM5000 features a stereo speaker system with exceptional sound quality.
.jpg)

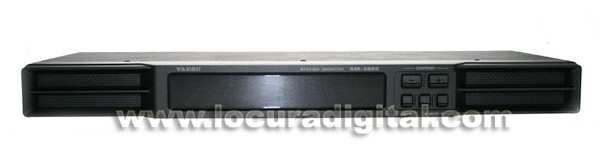

The front controls of the SM-5000 allow you to adjust the contrast, mute speakers. In addition, a support is incorporated to be able to fix the SM-5000 to your Yaesu FTDX-5000.
