A50-3S

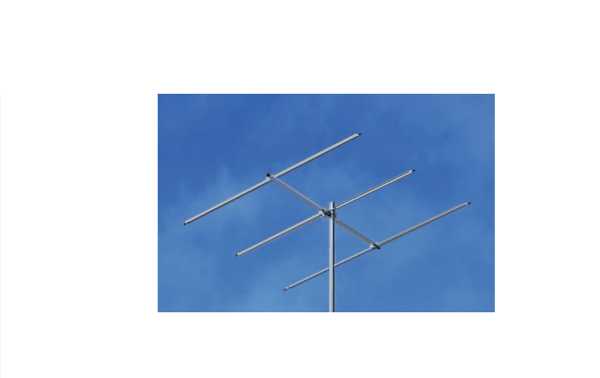

A50-3S CUSHCRAFT Directive of 3 elements for the 6 meter band (50 Mhz.). Cushcraft's A50-3S antenna is a directional antenna designed specifically for the 6 meter (50 MHz) band. It has 3 radiating elements that are used to direct and focus the signal in a specific direction.
This antenna offers improved gain and directivity compared to standard omnidirectional antennas. The gain allows more efficient transmission and reception of signals in the desired direction, while the directivity helps reduce interference and improve the quality of communications.
Cushcraft's A50-3S Antenna is constructed of high-quality, durable materials to ensure long-lasting, reliable performance. Its compact design makes it easy to install in various environments, whether in a vehicle, on a tower or on a mast. It is important to note that as it is a directional antenna, its optimal performance is achieved by pointing it in the desired direction. This allows for more effective communications with stations located at that specific address. Cushcraft's A50-3S antenna is a popular choice for radio amateurs and operators on the 6 meter band looking to improve the efficiency and quality of their communications on that specific band. Its 3-element directive design offers improved gain and directivity, making it a reliable and efficient choice for the 6-meter band.
kit content
Characteristics
- Frequency 50-54 Mhz
- band 6 meters
- Boom length: 1.8 meters
- Wind resistance 140 km/h
- SWR 1.5
- Type Directive 3 elements
- Impedance 50 ohms
- Gain 8dbi
- Maximum power: 1 Kw PeP
- Mast diameter for mounting: 38 - 45 mm
- F/B Ratio: 20 dB
- PL Female antenna connector
- Material Aluminum
- Weight 3.2 kg.
