CP5HS DIAMOND Vertical base HF antenna 5 bands 7 / 14 / 21 / 28 / 50 MHz (40m / 20m / 15m / 10m / 6m) Length: 3.6 m / Radial: approx.1.8m / Weight: 3.4 kg Max.Power: 200WSSB (7MHz), 400W SSB (14/21MHz), 500W SSB (28/29/50MHz) / Impedance: 50 ohms VSW more Manufacturer: diamond Reference CP5HSII EAN 4936312301008

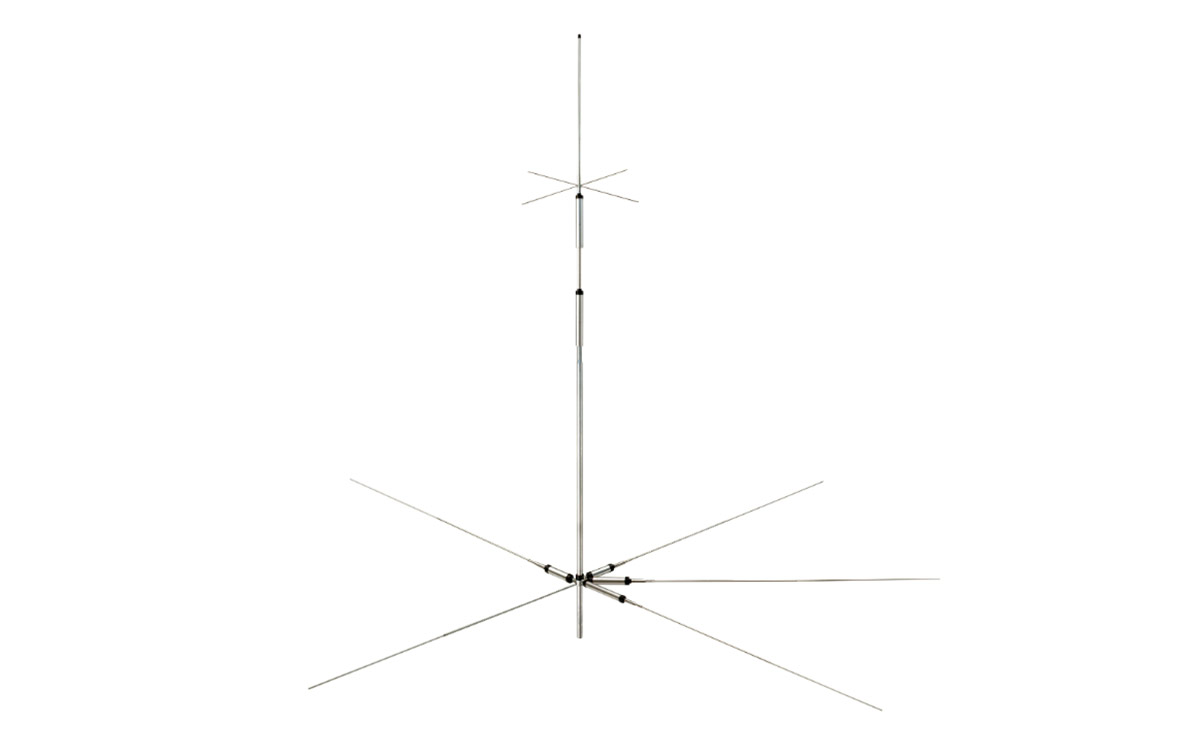

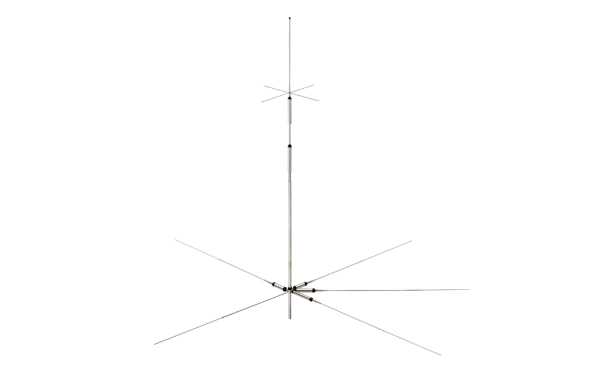

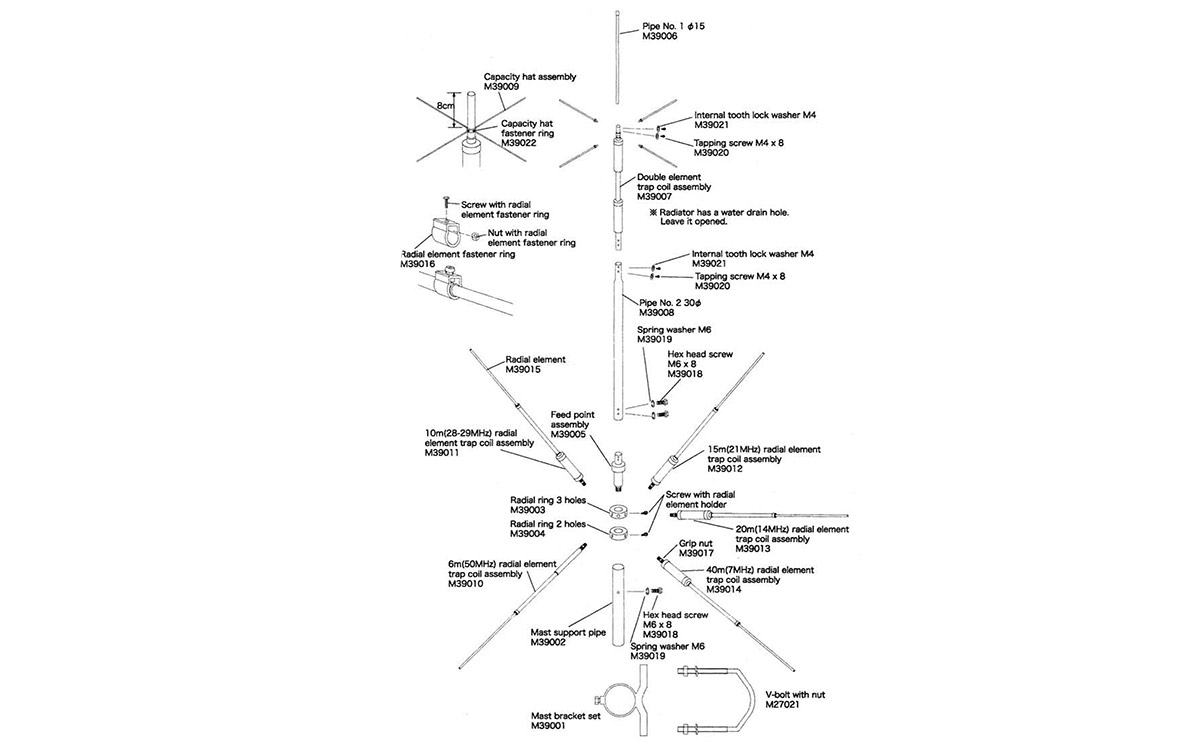

The Diamond CP5HS-II is a vertically based HF antenna designed to operate in five different bands. The antenna covers five frequency bands: 7 MHz (40 meters), 14 MHz (20 meters), 21 MHz (15 meters), 28 MHz (10 meters), and 50 MHz (6 meters).
Length and Radials: Antenna length: 3.6 meters.
Radial length: Approximately 1.8 meters.
Weight: The antenna weighs 3.4 kg.
Maximum Power: The maximum allowable power varies depending on the band:
200 W SSB at 7 MHz.
400 W SSB at 14/21 MHz.
500 W SSB at 28/29/50 MHz.
Impedance: The antenna has an impedance of 50 ohms.
VSWR: The VSWR (Voltage Standing Wave Ratio) is less than 1.5:1, indicating good impedance matching and transmission efficiency.
Nominal Wind Speed: The antenna has a nominal wind speed of 45 meters per second.
Accepted Mast Diameter: Accepts masts with a diameter of 30 mm to 62 mm.
Connector: The antenna connector is PL female type.
This vertical base antenna is versatile and covers multiple bands, making it suitable for amateur radio operators who want to use multiple bands without the need to change antennas. The ability to support different power levels on various bands provides flexibility in transmission. Information on wind speed and mast diameter provides important details for its installation and resistance in various weather conditions.
