HY-GAIN AV-640 VERTICAL ANTENNA 8 HF BANDS (40/30/20/17/15/12/10/6 m)

HY-GAIN AV-640 VERTICAL ANTENNA 8 HF BANDS (40/30/20/17/15/12/10/6 m) No ground or radials needed Effective counterweight replaces radials End fed with wide band unit Automatic band switching Power supply single coaxial cable Each band is individuall more Manufacturer: hygain Reference AV640

Make the first review

hygain
HY-GAIN AV-640 VERTICAL ANTENNA 8 BANDS HF (40/30/20/17/15/12/10/6 m)
available
943,80€ incl. VAT
780,00€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

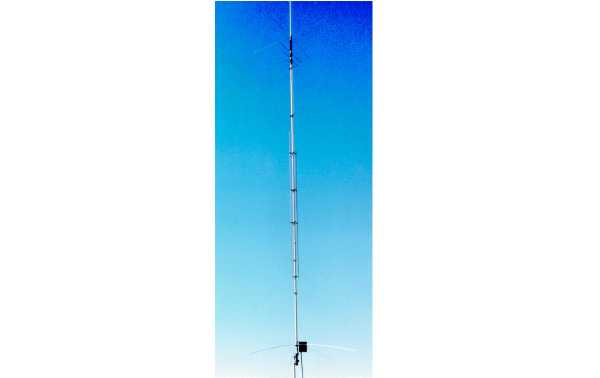

HYGAIN AV-640

HY-GAIN AV-640 VERTICAL ANTENNA 8 BANDS HF (40/30/20/17/15/12/10/6 m)
Vertical multiband antenna improves more robust and higher performance
No earth or radials are needed
Effective counterweight replaces radials
Final feed with broadband unit
Automatic bandswitching
Simple coaxial cable feed
Each band is individually tuneable
Wide bandwidth VSWR
Elegant and low profile
Surface of low winds.
Small area required for assembly
Mounts easily to decks, ceilings and patios
Built to last
Survival of strong wind
Combined unit made of all insulated Teflon (R) cables

  • Bands: (40/30/20/17/15/12/10 and 6 m)
  • Frequencies (7/10/14/18/21/24/28 and 50 Mhz)

  • HY-GAIN AV-640 ANTENA VERTICAL 8 BANDAS HF (40/30/20/17/15/12/10/6 m)

    Contents of the kit
    • 1 HYGAIN AV-640

Features

  • Bands: (40/30/20/17/15/12/10 and 6 m)
  • Frequencies (7/10/14/18/21/24/28 and 50 Mhz)
  • Impedance: 50 Ohm
  • Win 3 dBI
  • Maximum power: 1500 watts PEP
  • Connector: PL female
  • ROE: Less than 1.5: 1
  • Height: 7.88 m
  • Weight: 9.9 Kg
  • Wind speed: 80 MPh
  • Diameter mast: 38-41 mm
