HY-GAIN TH-3MK4

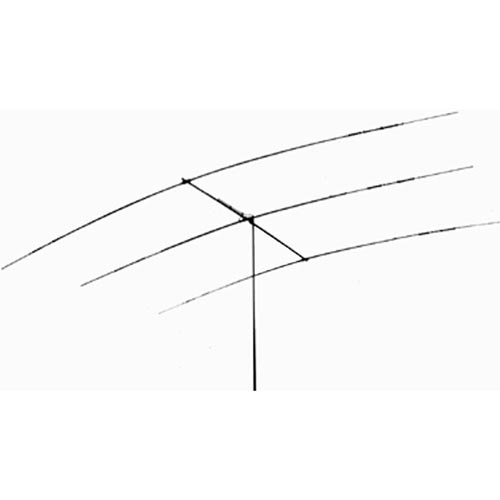

HY-GAIN TH-3MK4 HF BEAM, TRIBAND: 10/15/20M, 3 ELEMENTS, 1.5KW
Bands: 10.15, 20m
Elements: 3
Max. Power: 1.5KW (PEP)
Gain: 5.8 dBd (avg.)
F / B ratio: 25dB (avg.)
VSWR: 1.2:1
Boom lenght: 4.27m
Element of greater length: 8.39m
Turning radius: 4.70m
Mast diameter: 32 - 50.8 mm
Max. Wind survival: 152kph
Net Weight: 7.7kg
Stainless Steel Hardware.
Features
HY-GAIN TH-3MK4 HF BEAM, TRIBAND: 10/15/20M, 3 ELEMENTS, 1.5KW
Bands: 10.15, 20m
Elements: 3
Max. Power: 1.5KW (PEP)
Gain: 5.8 dBd (avg.)
F / B ratio: 25dB (avg.)
VSWR: 1.2:1
Boom lenght: 4.27m
Element of greater length: 8.39m
Turning radius: 4.70m
Mast diameter: 32 - 50.8 mm
Max. Wind survival: 152kph
Net Weight: 7.7kg
Stainless Steel Hardware.
