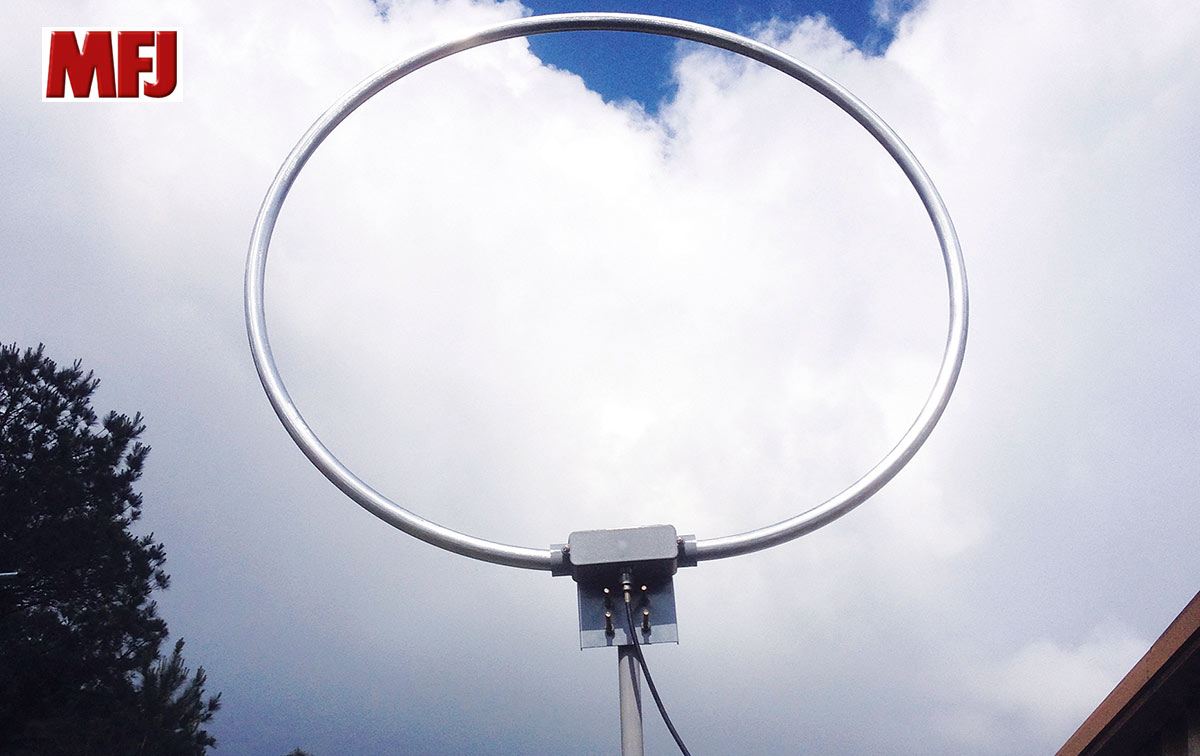

MFJ1886X MFJ Loop reception antenna 500 Khz to 30 Mhz

MFJ1886X MFJ Loop reception antenna 0.5 to 30 Mhz covers 500 Khz AM radio, can be used indoors, recommended outdoors for maximum efficiency. It is also easily installed on a tripod or handheld mast for portable use. The key p more Manufacturer: mfj Reference MFJ1886X

Make the first review

mfj
MFJ1886X MFJ Receiving Antenna Loop 5 to 30 Mhz MFJ1886X MFJ Receiving Antenna Loop 5 to 30 Mhz MFJ1886X MFJ Receiving Antenna Loop 5 to 30 Mhz MFJ1886X MFJ Receiving Antenna Loop 5 to 30 Mhz MFJ1886X MFJ Receiving Antenna Loop 5 to 30 Mhz
MFJ1886X MFJ Receiving Antenna Loop 5 to 30 Mhz
discontinued

MFJ-1886X

MFJ1886X MFJ Loop reception antenna 0.5 to 30 Mhz covers 500 Khz AM radio, can be used indoors, recommended outdoors for maximum efficiency. It is also easily installed on a tripod or handheld mast for portable use. The key to the MFJ-1886's performance is its balanced input preamplifier. The double MMICs that work in push-pull mode.

IMPORTANT IT IS NOT VALID TO TRANSMIT

mfj1886x mfj antena recepcion loop 5 a 30 mhz cubre 500 khz am radio, se puede utilizar en interior se recomienta en exterior para su maxima eficiencia.también se instala fácilmente en un trípode o en un mástil de mano para uso portátil. la clave para el rendimiento superior del mfj-1886 es su preamplificador de entrada balanceada. los mmic dobles que funcionan en modo push-pull ofrecen un piso de ruido extremadamente bajo junto con un rango dinámico excepcionalmente amplio para manejar la sobrecarga de los transmisores cercanos

Kit content
  • 1 Loop Antenna MFJ-1886X
  • 1 Bias-T Amplifier
  • 1 Transformer 220 va 12 volts
  • 2 mast flanges

mfj1886x mfj antena recepcion loop 5 a 30 mhz cubre 500 khz am radio, se puede utilizar en interior se recomienta en exterior para su maxima eficiencia.también se instala fácilmente en un trípode o en un mástil de mano para uso portátil. la clave para el rendimiento superior del mfj-1886 es su preamplificador de entrada balanceada. los mmic dobles que funcionan en modo push-pull ofrecen un piso de ruido extremadamente bajo junto con un rango dinámico excepcionalmente amplio para manejar la sobrecarga de los transmisores cercanos

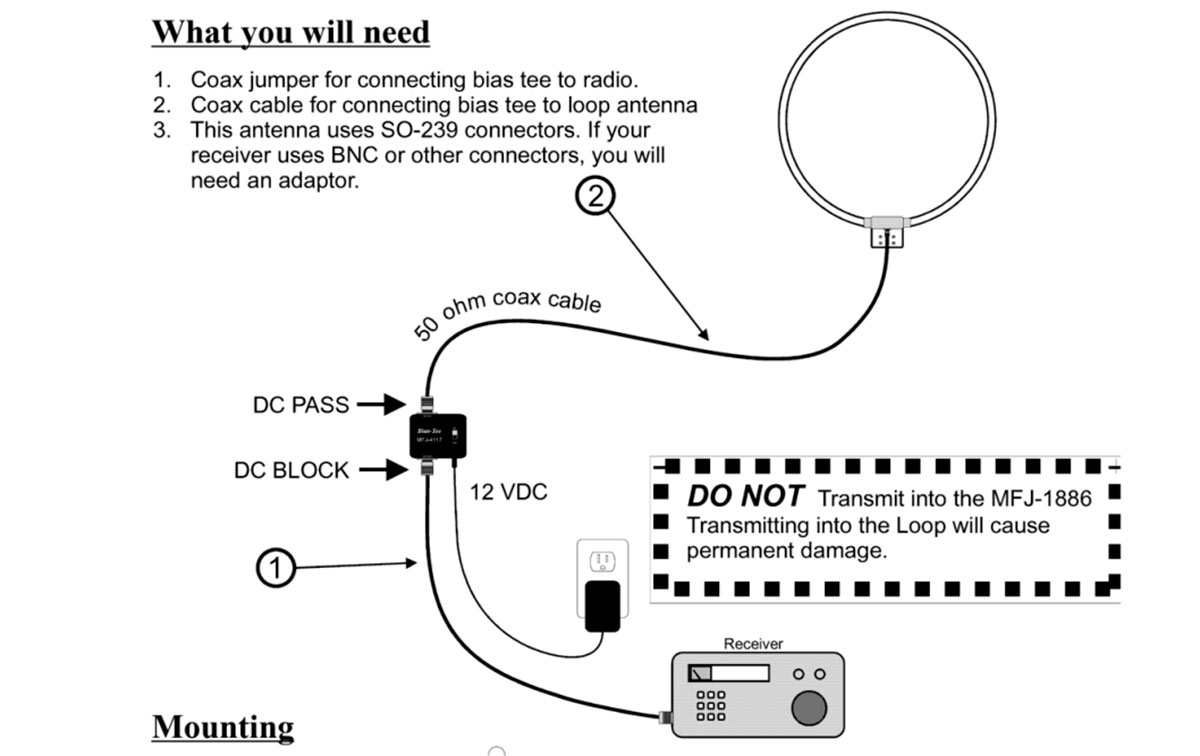

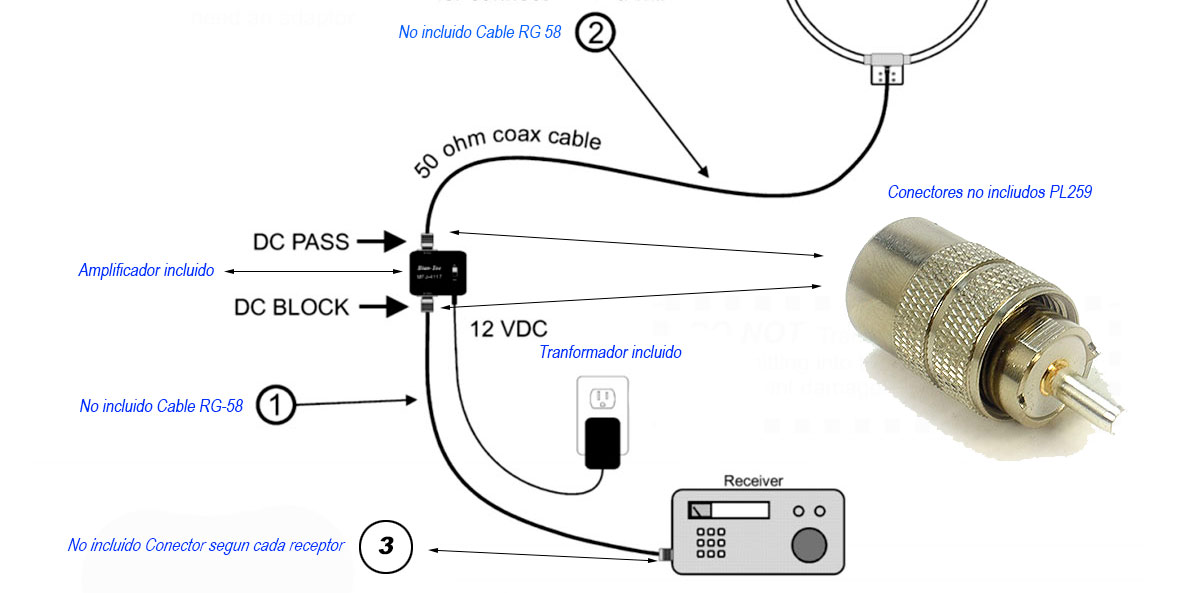

Cable figure 1 and figure 2 not included. RG-58 cable is necessary according to the length needed by each user, see cable sales by meters.
Connectors not included are also necessary, see attached image.

MFJ1886X MFJ Antena recepcion Loop 0,5 a 30 Mhz cubre 500 Khz AM radio

Characteristics

  • Frequency 0.5 -30 Mhz
  • Loop Model
  • Impedance 50 ohms
  • Hoop diameter 90 cm
  • Bias-T Amplifier
  • Mast diameter 25-35 mm
  • Female PL connector
  • Weight 0.900 kg.
