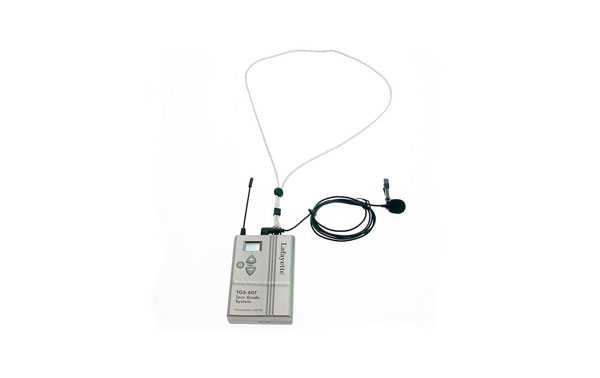

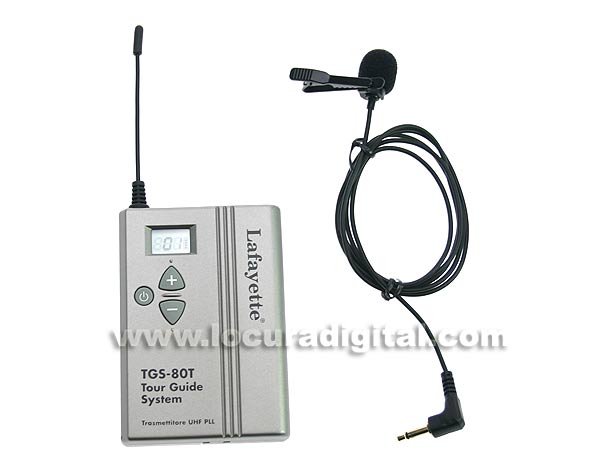

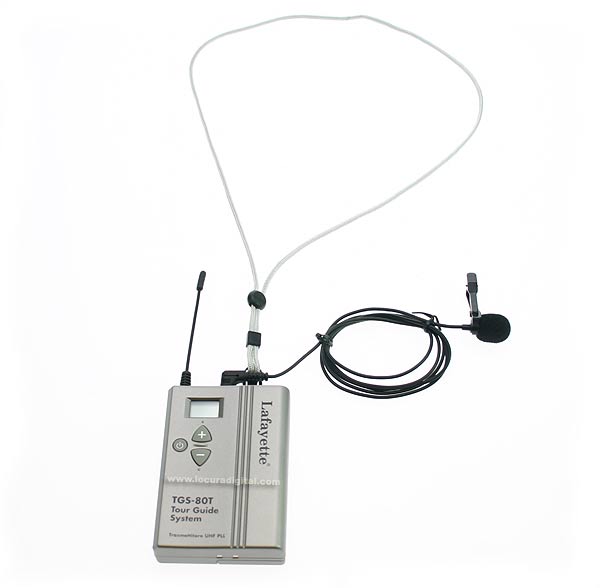

LAFAYETTE TGS80T tour guide system TRANSMITTER MODULE FOR GUIDE

LAFAYETTE TGS80T tour guide system TRANSMITTER MODULE FOR GUIDE. Lafayette TGS-80 audio system for guided tours is designed to answer all these needs by offering a variety of solutions. The system basically consists of a unit of several transmitter more Manufacturer: lafayette Reference TGS80TKIT1 EAN 030032321866

available
119,79 incl. VAT
99,00€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

 !! MODULE TO GUIDE!!



 GUIDED TRANSMITTER



TGS80T

SPECIFICATIONSLAFAYETTE tour guide system TRANSMITTER MODULE FOR GUIDE.

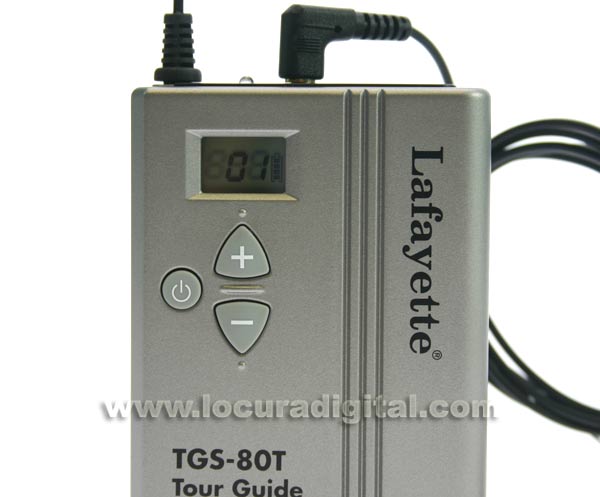

Lafayette TGS-80 audio system for guided tours is designed to meet all these needs, offering a variety of solutions. The system basically consists of a unit of several transmitter and receiver units, in addition to various accessories can be used to expand the functionality. With 80 channels, including in the 863-865 MHz and a channel interval: 12.5 kHz, TGS-80 devices let you easily communicate without interference from other tour groups in a wide operating range. Easy to use, have an LCD screen where you can be the channel number and see battery status. Power is supplied by rechargeable batteries and internal or external LAFAYETTE TGS80TKIT1operating status can be checked by led. To improve its energy independence, the transmitter unit automatically stops transmission activity after 1 minute if no audio input is received, and after 15 minutes of complete inactivity, both transceiver and the receiver will automatically .
Ability to select up to 80 channels
The guide does not have to press anything is voice activated.


 LAFAYETTE TGS80TKIT1



LAFAYETTE TGS80TKIT1



LAFAYETTE TGS80TKIT1




















  FEATURES




SPECIFICATIONS
General
Oscillator Type: PLL
Operating Frequency: 863-865 MHz
pre-programmed channels: 80 selectable channels
Frequency Response 300Hz - 4kHz
Dynamic Range: > 70dB
Operating Temperature: -10 / 50 ° C
THD:
Batteries: 1.2V, 2AA Ni-MH (1600mAh)
1.5 V, alkaline 2AA
Scope transmission / reception: 2-70m (in open field)
Transmitter
MIC: Type Condenser
Antenna: Pigtail
RF output: 10mW
Spurious Emissions:
Audio: Microphone and microphone
Max modulation: ± 2.5kHz
Range: 8 hours (1600 mAh, Ni-MH)
9 hours (alkaline)
Size: 23x65x94 mm
Weight : 123g including batteries









Accessories 1/2
