PL COMET CS400P coaxial protector male / female

COMET CS400P PL coaxial protector male / female. The lightning protector is designed to protect your transceiver and / or recipients of a discharge current of high amperage produced by a lightning strike near his installation, provided you have do more Manufacturer: comet Reference CS400P EAN 8032182560869

(5,0) 1 Reviews

comet
CS400P COMET protector coaxial PL macho/hembra
not available
43,56 incl. VAT
36,00€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

head>

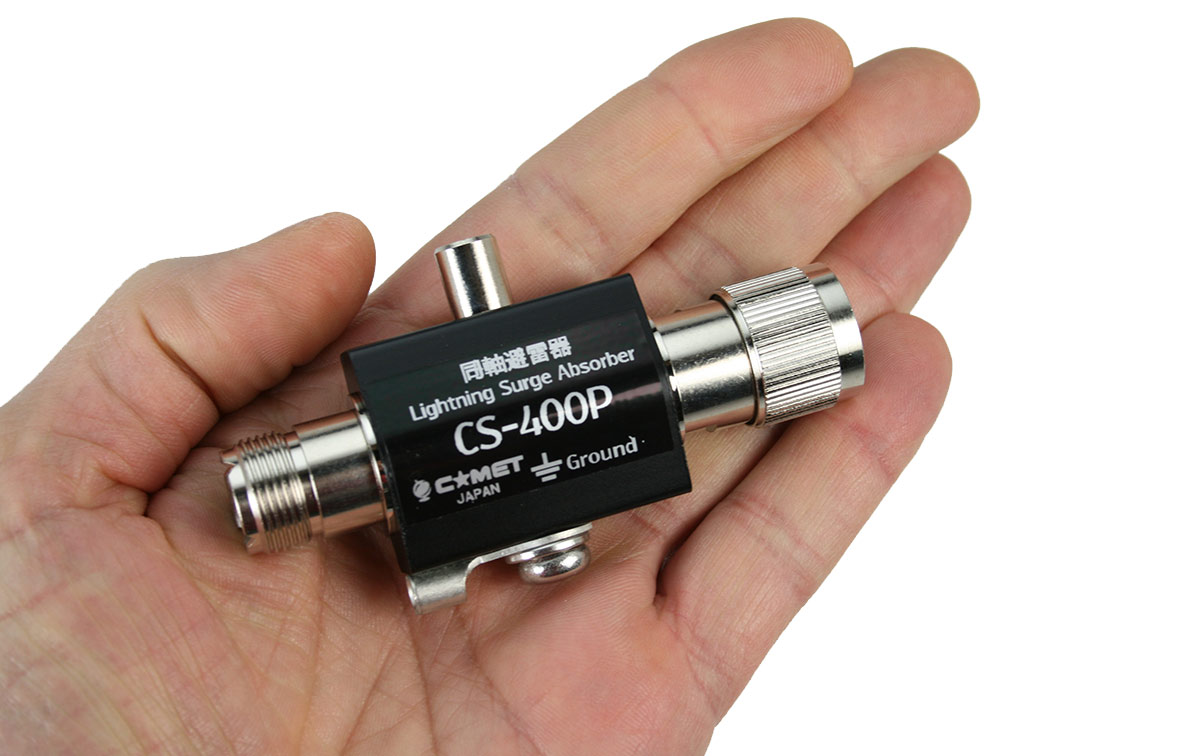

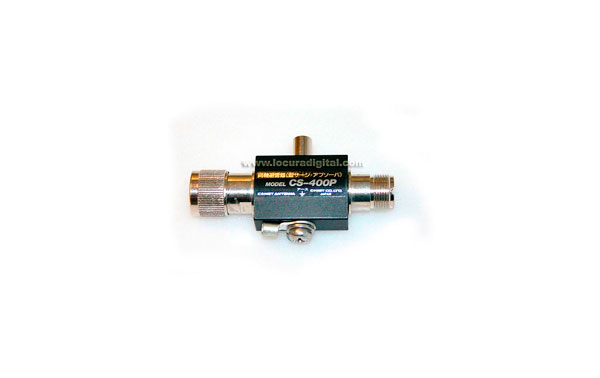

COMET CS400P

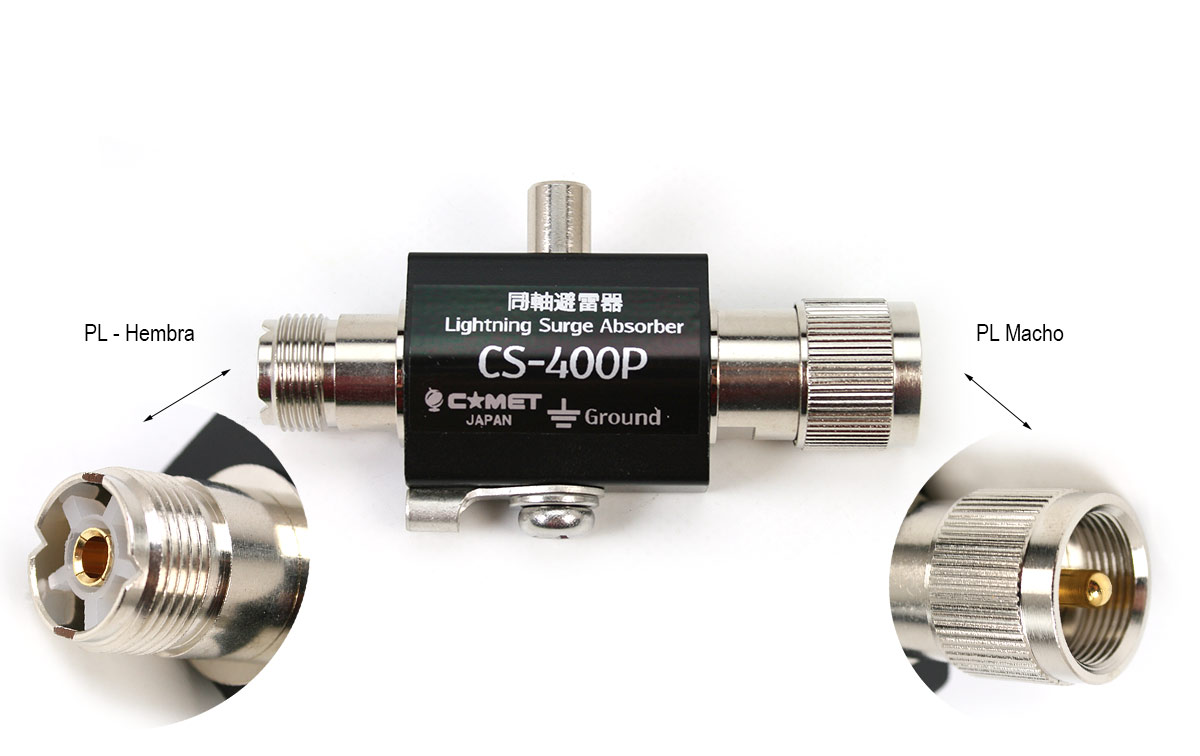

Original COMET coaxial protector with PL female connector to PL male connector. When the protector detects a large increase in current or voltage, it automatically directs it to ground, thus preventing equipment overload.
Great capacity to withstand high currents in a compact size. Great duration, thousands of possible downloads. Extremely sensitive against any excess current. Protector against atmospheric discharges manufactured with a coaxial type core with low insertion losses and high bandwidth.

Protector de Antenas Comet

kit content
  • 1 CS400P antenna protector

ACCSORIOS PARA ANTENAS Y RADIOCOMUNICACION

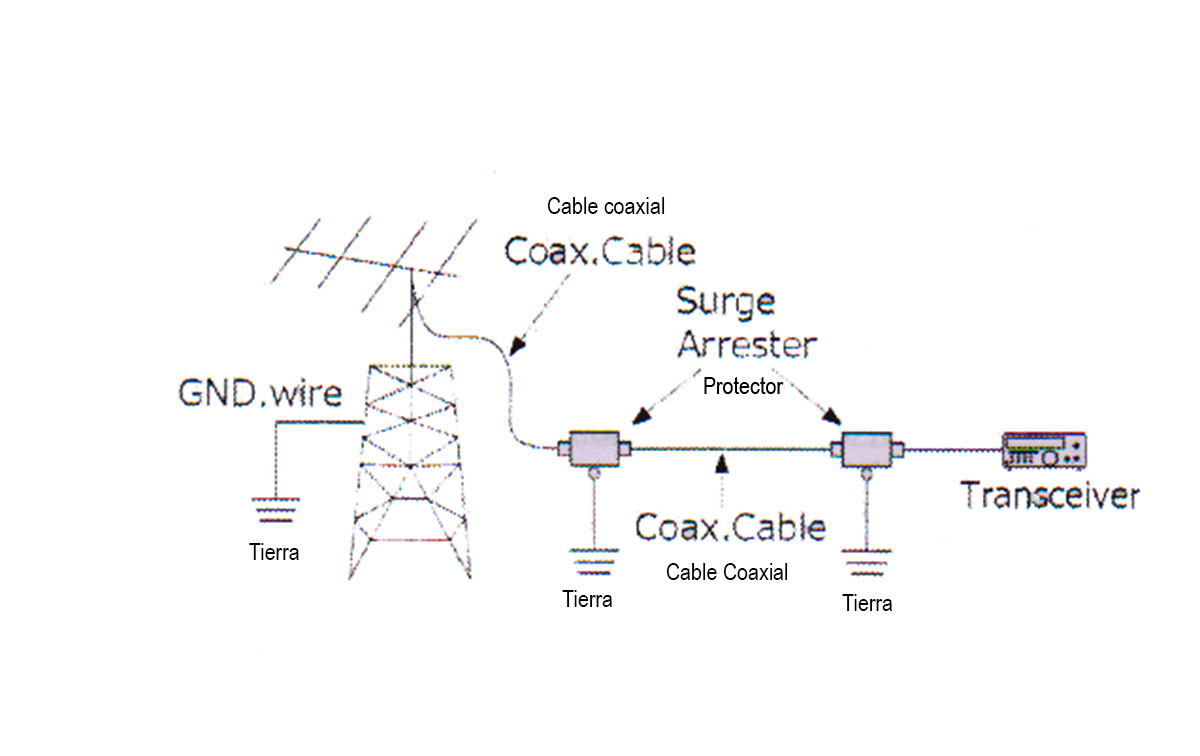

Esquema de montaje para antenas

Features

  • Frequencies DC 500Mhz
  • material nickel
  • I live bathed in gold
  • HF/ VHF /UHF bands
  • Impedance 50 ohms
  • Maximum power 500 watts
  • Connector 1 PL Female
  • Connector 1 PL Male
  • VSWR 1.1
  • Star screw ground connector
  • Lost 0.1 db
  • Discharge capacity: 6000A
  • Retention discharge capacity: DC350v ± 20%
  • Insulating resistance DC100v:
  • Measures 74 x 41 x 20mm
  • Weight 95 grams.
