YAESU HX280E Standard Horizon. Walkie talkie submersible nautical

YAESU HX280E Standard Horizon. Walkie talkie submersible nautical The new HX280E is a portable handheld VHF radio that is very easy to use. With all the regular features, such as dual programmable user monitoring and scanning features also they have more Manufacturer: yaesu Reference HX280E

discontinued

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

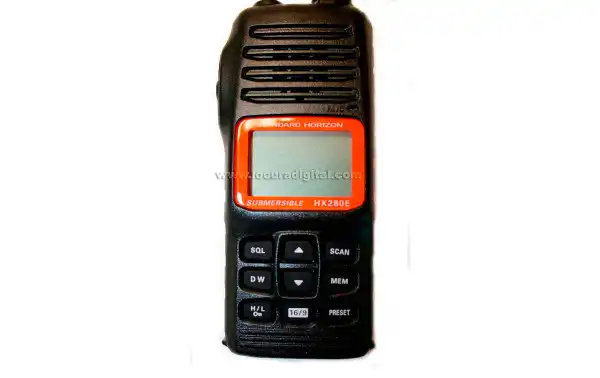

YAESU HX280E

The new walkie HX280E is a handheld VHF radio that is easy to use. With all the regular features such as dual monitoring user programmable scan features and also have the function of a preset key allows direct access to no fewer than 10 channels.

Thin, lightweight and water resistant, with quality and durability expected from Standard Horizon

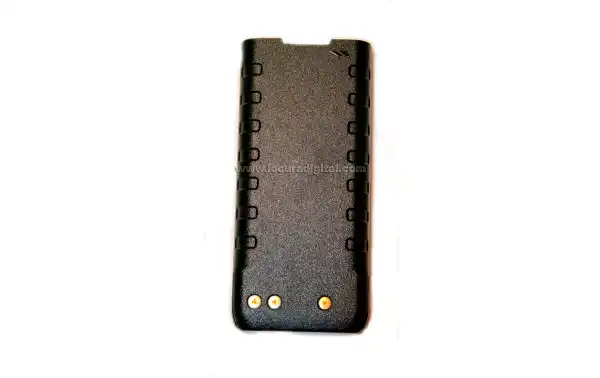

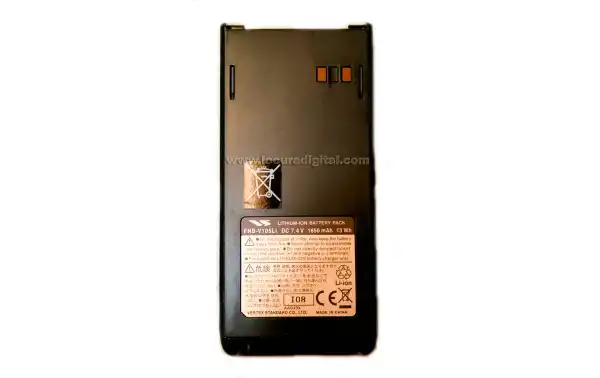

The battery life is critical, so the HX280E comes with a 7.4volt 1650mAh lithium-ion battery that can power the radio for 13 hours with a single charge. There is also an optional battery tray (FBA-40) to allow use of AA alkaline batteries.

Transmission power can be switched between low (1W) and High (5W), and a setup time of 5 minutes, thus avoiding involuntary transfers. The speaker provides a powerful 700mW at full volume, making it ideal for HX280E even the noisiest of environments.

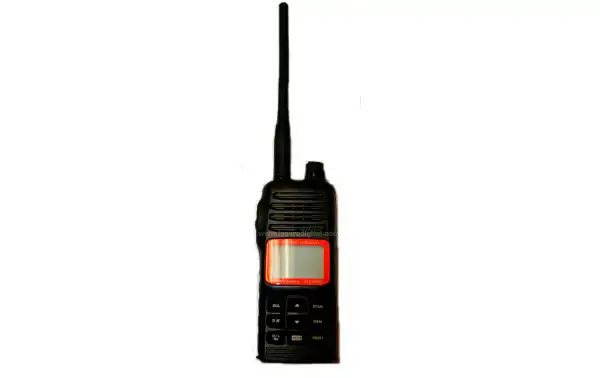

The large LCD display features large digits orange and has an additional benefit of 5-level squelch and battery indicators. The keyboard is backlit, and has been designed to be easy to use even with gloves.

The radio is waterproof, so it can be submerged to 1 meter for 30 minutes.

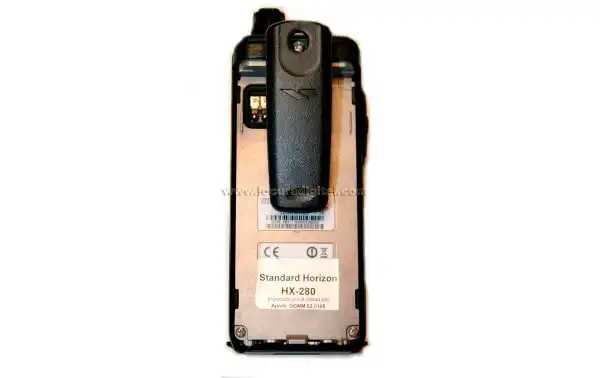

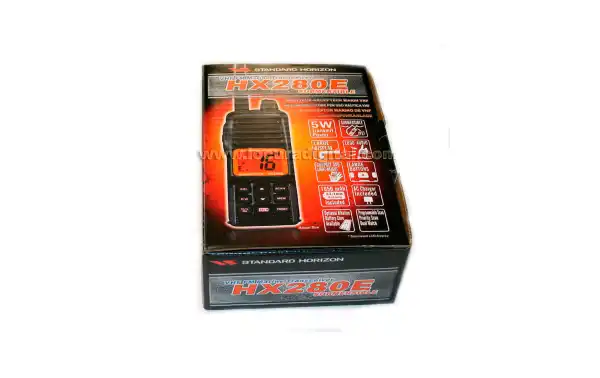

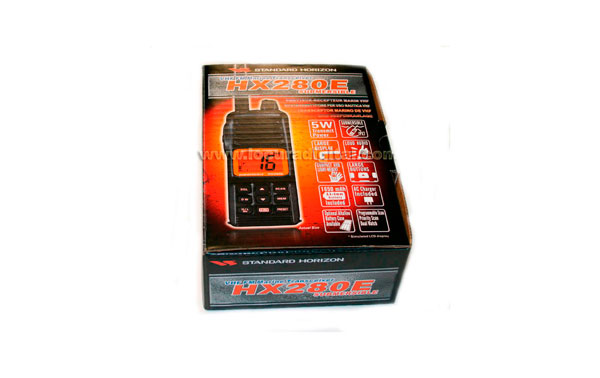

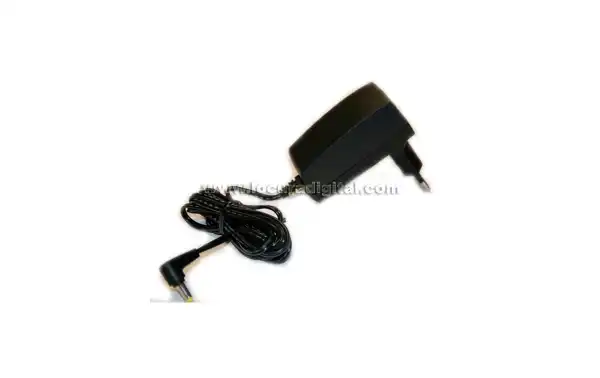

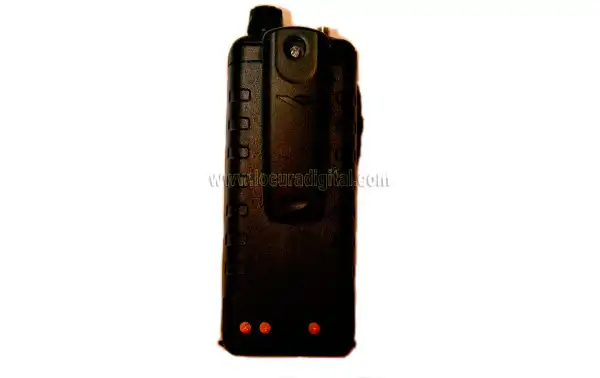

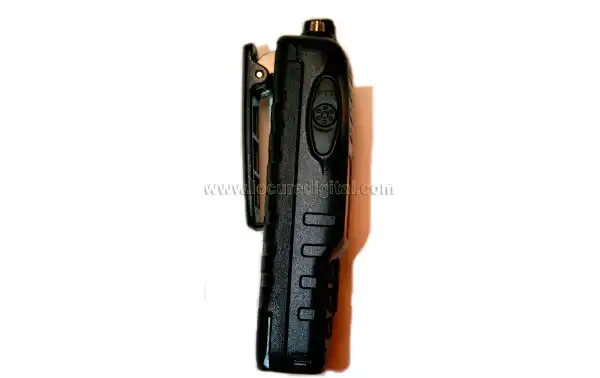

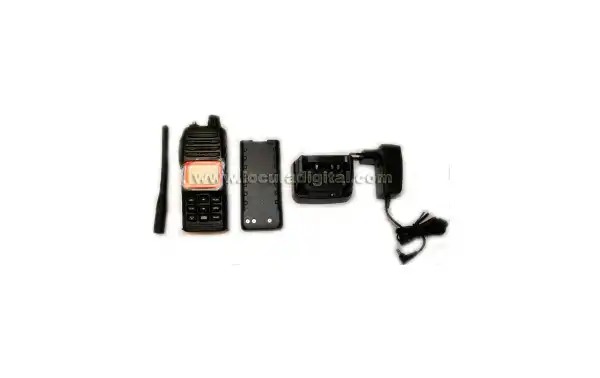

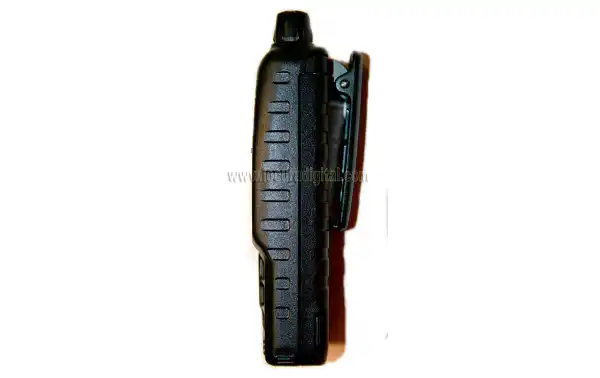

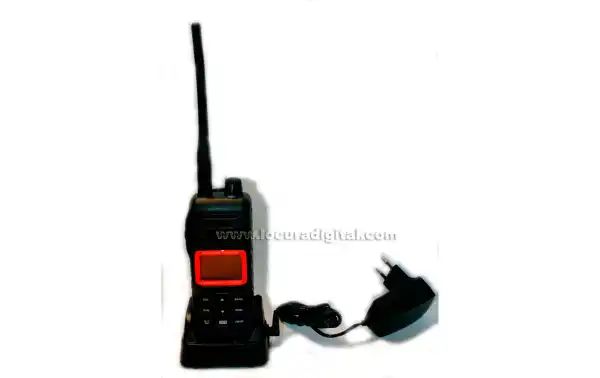

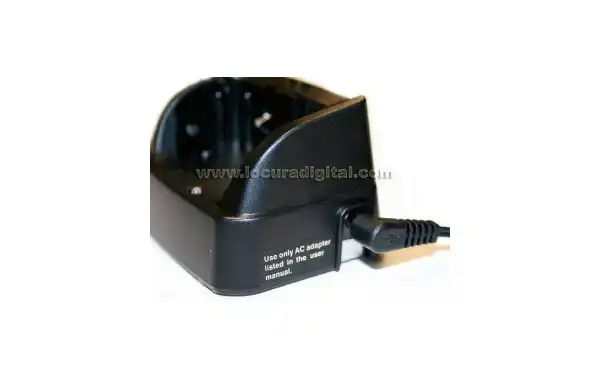

The HX280E is supplied as a complete kit, including antenna, lithium ion battery, belt clip, AC charger and a base load.

The HX280E is supported by the standard warranty of three years of water.

HX280E



FEATURES

GENERAL

--
Frequency range: 156,025 MHz -162 MHz (Marine Band)

--
Channel Steps: 25 kHz
--
Frequency Stability: ± 5 ppm (-20 ° C to 60 0C)
--
Type of Issue: 16KOG3E
--
Antenna Impedance: 50 ohms
--
Supply voltage: 7 V DC
--
Current consumption: 320 mA (Receive)
50 mA (Paused, Saver Off)
TX: 1.6 A (A) / 0.7 A (M) / 5 A (B) / 1
--
Operating Temperature: -20 ° C to 60 ° C
--
Water resistance: 30 minutes @ 1 meter depth (JIS 7)
--
Carton size: 56 x 133 x 27.5 mm (width x height x depth)
--
Weight (Approx): 310 g

TRANSMITTER

--
RF Power Output: 6 W / W 5 / 1 W@7.4 V
--
Modulation Type: Variable Reactance
--
Maximum deviation: ± 5 kHz
--
Spurious emissions by driving: 0.25 I-lW (-36 dBm)

RECEPTOR

--
Circuit Type: Double conversion superheterodyne
--
Intermediate frequencies: 1st: 21.7 MHz the 2nd: 450 kHz
--
Sensitivity: 1 uV for 20 dB SINAD
--
Adjacent Channel Selectivity: 70dB
--
Intermodulation response: 68dB
--
Selectivity: 25 kHz (-70 dB)
--
AF Output: 700 mW @ 16 ohms
for THD <10% (@ 7.4V)
