ICOM ICM-35 sender / receiver portable marine VHF band - FLOATS ON WATER...

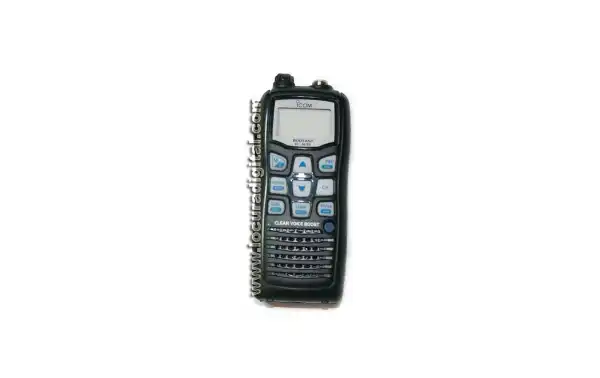

ICOM ICM-35 sender / receiver portable marine VHF band - FLOATS ON WATER !! ICM35 transmitter / receiver portable marine VHF band. Transmission from 156,000 to 161,450 MHz. Reception from 156,000 to 163,425 MHz. Channels according to plan maritime ba more Manufacturer: icom Reference ICM35

Make the first review

icom
ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICM35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35 ICOM IC-M35
ICOM IC-M35
not available
191,18€ incl. VAT
158,00€ w/o VAT
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

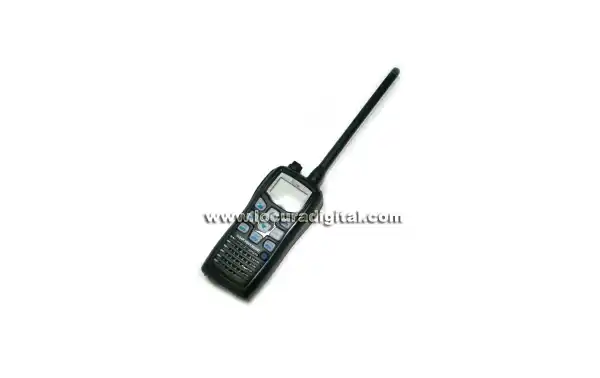

icom icm35 ICOM ICM-35 sender / receiver portable marine VHF banda - ¡floats in water!

ICM35 sender / receiver portable marine VHF banda. Transmission from 156,000 MHz to 161,450 from 156,000 to 163,425 Reception Channels MHz bands under the plan of the sea. 6 watts of power. Water resistant.

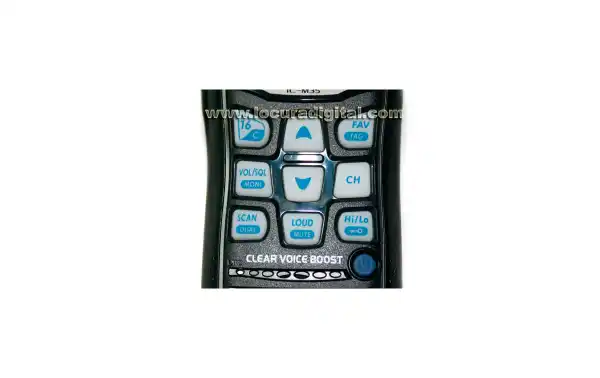

Increases the clarity of the voice;
The transceiver has a noise detection function that can adjust the volume automatically according to Loud Volume maximize the volume level to provide clear communications in noisy marine environments.

Microphone noise cancellation:
The sub-microphone on the rear panel reversed phase and cancels the ambient noise microphone principal. As a result, the transceiver reduces the influence of background noise (especially noise means) of the signal.

IPX7 standard floats in water (1 m during 30 minutes):
The team floats in fresh water or salt but is connected accessories. May collapse when used batteries, belts, etc. from other manufacturers.

Includes:

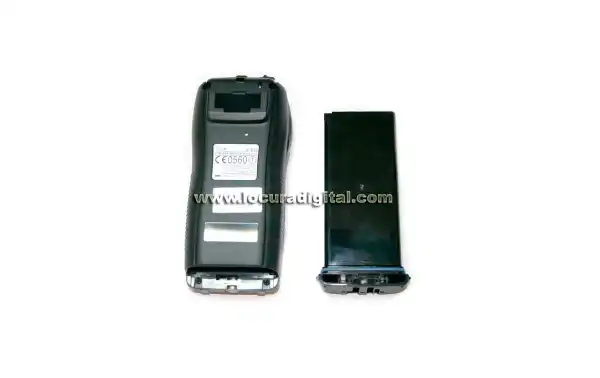

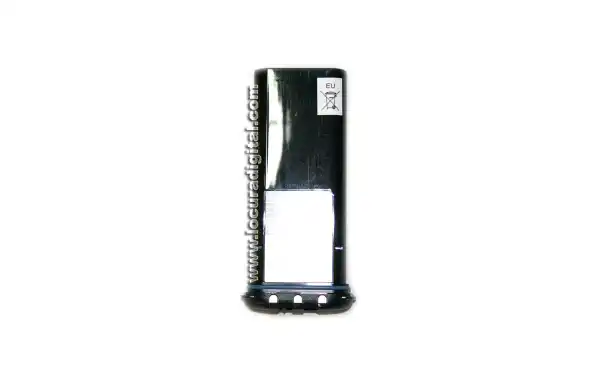

Lithium Ion battery 7.4 V / 980 mAh.
AC adapter, BC-174E

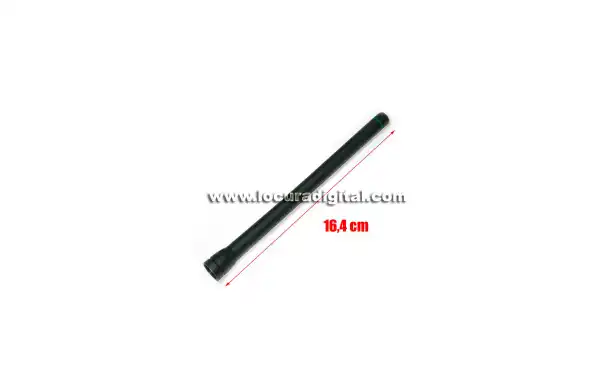

Antenna FA-SC58V

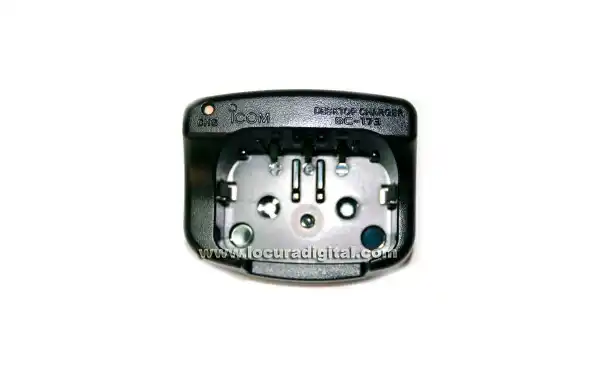

Battery charger BC-173
Belt Clip MB-109
Hand strap



FEATURES

GENERAL

Frequency Coverage
Transmission 156.000-161.450 MHz
Reception 156.000-163.425 MHz
Mode
FM (16KOG3E)
Channel Spacing
25 kHz
Power Requirements
Only BP-251 BP-252
Current (7.4 V DC)
TX High (6 W): 1.5 A typical
TXBaja (1 W): 0.7 A typical
TX Low (0.5 W) 0.6 A typical
RX Max. Audio: 0.3 A typical (internal speaker)
0.2 A typical (external speaker)
Energy saving
10 mA typical
Frequency Stability
± 1.5 kHz
Operating temperature range
-15 ° C to 55 ° C

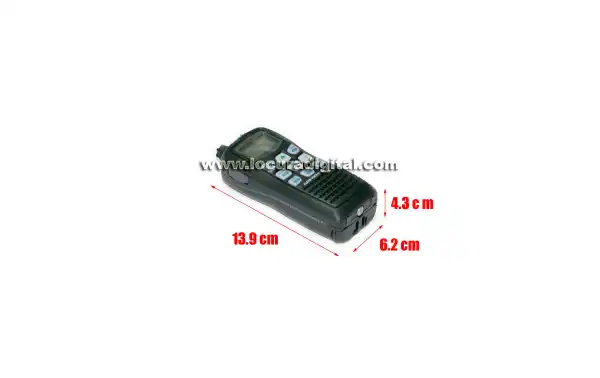

Dimensions
62 (W) x 139.5 (H) x 43 (W) mm
(Projections not included)
Weight
Approx. 295 g
(Including BP-252, FA-SC58V and MB-109)

TRANSMITTER

Output power (at 7.4 V DC)
6 W (H) and 1 W (Low)
Modulation system
Variable reactance frequency modulation
Maximum frequency deviation
± 5 kHz
Adjacent channel power
70 dB
Spurious emissions
0.25 UW

RECEPTOR

Reception system
Double-conversion superheterodyne
Sensitivity (20 dB USINT)
-2 DBu typical FEM
Sensitivity silencer
-6 DBu typical FEM (a threshold)
Intermodulation
68 dB
Spurious Response
70 dB
Adjacent Channel Sensitivity
70 dB
Audio output power (10% distortion)
Internal Speaker: 0.7 W typical load of 16 ohm
External speaker: 0.2 W, 8 ohm load
