Sorry, this product isn't available in our catalog anymore.
FT1DEBLACK YAESU FT1DE Walkie doble banda 144/430 Mhz. DIGITAL / ANALOGICO....
YAESU FT1DR bibanda 144/430MHz con GPS. Dual Band Digital receptor digitales Radio Amateur. Color negro moreManufacturer:yaesuReference FT1DEBLACK EAN 4909959136913
Case: 2.4 "(W) x 3.7" (H) x 1.1 "(D), antenna and belt clip FNB-101LI andantenna
Water protection
The FT1DR with IPX5 water protection making it perfect for extreme environments, the field and outdoors.
High power
You can count on up to 5 watts of power. There are four power stages, 5 watts, 2.5 watts, 1 watts, and 0.1 watts. There are two types of Li-Ion batteries. FNB-101LI included in pack and optional FNB-102LI battery provides up to 8 hours of typical 5 watt operation.
Illuminated keyboard
Fully illuminated keyboard that allows easy operation in dark environments.
Easy to use intuitive and easy operations
The FT1DR is extremely easy to use, with a wide range of functions that can be called directly. An easy-to-understand hierarchical menu is also used for the setting modes which allows for customization of the FT1DR and makes it convenient to use. Press the ENT key to move to a lower level in the hierarchy, press the DISP key to return to a higher level, and turn the dial to select items or set values. These simple operations can be used to adapt the FT1DR / FT1DE to many communication situations.
Real dual band operation (VV / UU / VU)
It has two independent receivers, you can listen to either the same or a different band at the same time.
Dual AF Control
Listen to AM or FM radio stations while monitoring two frequency channels! Two independent receivers will allow you to listen to your favorite AM or FM radio station, and monitor two different bands ("Band A" and "Band B") at the same time.
Four (4) communication modes
The FT1DR operates in one traditional analog mode and three digital modes! Enjoy communication in the way that best suits your needs. purpose. 1. V / D mode (Simultaneous voice / data communication mode) Half the bandwidth is used for the error-corrected voice signal. The transmitter uses powerful error correction technology developed for professional communication devices. Highly efficient error correction code provides benefits such as minimal communication disruption. The C4FM FDMA digital basic mode provides a good balance between sound quality and error correction. 2. FR Voice Mode (Voice Full Rate Mode) This mode uses the full 12.5 kHz bandwidth to transmit digital voice data. The larger voice and data size enables voice communication with high sound quality. Use this mode to please the sound quality communication between amateur radio friends. 3. FR data mode (high speed data communication mode) A high speed data communication mode that uses the full 12.5 kHz bandwidth for data communication. The transceiver automatically switches to this mode for sending and receiving images, allowing a large amount of data to be transmitted quickly. 4. Analog FM Analog FM mode is effective for communication with a weak signal that causes voices to split into digital modes. Analog mode allows communication even at distances where noise and weak signals make communication almost impossible. The tried and trusted low power circuit design uses less power than digital modes.
Automatic selection
The automatic mode selection function detects the receiving signal mode The transceiver automatically selects one of the four communication modes according to the received signal. This is very useful when listening to communications, as you do not need to be aware of the other party's communication mode. The transceiver can also be operated in a fixed communication mode.
Snapshot
When using the handheld speaker microphone (optional MH-85A11U), press the shutter button to capture a snapshot, then press the button to easily transmit the image data of the transmission image. The snapshot image or received data is stored on the micro SD card that is installed in the radio. You can retrieve and send the image data from the SD card at any time. The size of the image data is 320 x 240 dots or 160 x 120 dots. Image quality can be adjusted from 3 types, and a format can be chosen that is suitable for the image and the purpose. This image data also keeps track of time and GPS location data of the snapshot. It is easy to view and edit the data file after taking pictures by using a personal computer. A snapshot of navigation aids and return to the represented place, several other possible uses.
Digital Group Monitor Function
The Digital GM function automatically checks whether the users registered in a group are within communication range and displays information such as the distance and direction of each call sign on the screen. This handy function makes it possible not only to see if any of the friends are in communication range, but also to instantly determine the location and relationship between all members of the group. This function can also be used to send messages and data, such as pictures, between members of a group, enabling communication. Messages and images sent and received can be checked on the LOG List screen, with icons making them easy to distinguish.
Band Scope
The FT1DR includes a high resolution range band with about 50 channels.
Broadband receive coverage
Covers 504 kHz - 999.900 MHz (Band A), 108 MHz - 580 MHz (Band B), for continuous reception, FM / AM broadcasts, airplanes, shortwave public service channels, etc.
Preset Receiver Function - NOAA Weather, Marine, Shortwave
Preset receiver function with a wide range of major stations and various wireless information services. The FT1DR has a receiver preset function with different frequencies in the memories, making it easy to call the stations of the various communication services. Frequencies include international shortwave (maritime) emissions from VHF and NOAA weather channels.
Built-in GPS
Integrated GPS receiver and antenna (located on top of the radio) provides location, time, direction and APRS® information. The FT1DR has a very useful GPS data transmission capability.
1200 / 9600bps APRS ® Communication Data
The built-in world standard AX.25 TNC data modem enables hassle-free APRS ® (Automatic Packet Notification System) operation. You will be able to display the information, the list of stations, and use the message, SmartBeaconing TM function. You will be able to track your APRS ® movements on Internet web pages.
Smart navigation function
This is a real-time navigation function that records the location and address of the supervisor group (GM) stations. Digital V / Mode D communicates information such as position data at the same time as the voice signal, allowing you to see the distance and direction of the other party in real time while communicating. This makes it possible to confirm your position and in situations like hiking and driving your positions change constantly, providing an easy way to meet or join the other party's routes.
Backtrack Return to the starting point function
This function allows navigation back to the starting point, or a point previously added to memory. When hiking or camping, record the starting point or position of your tent and then you can constantly check the direction and distance from your current position. The arrow on the compass screen constantly shows the direction towards the recorded point, making it very convenient to find your way back to the head office - just move in the direction until the arrow on the screen heading-up points straight up.
Memory channels and functions
The FT1DR includes 1,266 channel memories, 24 memory banks of 100 channels, memory label up to 16 characters.
DTMF Functions
Fuctional DTMF Encode and memory functions.
Selective Call
CTCSS, DCS and all new PAGER encode / decode function allows you to use multiple selective calling functions.
Vibration alert
Select from three types of vibration alert functions.
Data terminal for data communication
A data terminal is located on the side of the radio. The optional camera equipped microphone (MH-85A11U) can be connected to this terminal. Your personal computer can also be connected to this terminal to transfer data or update the radio firmware.

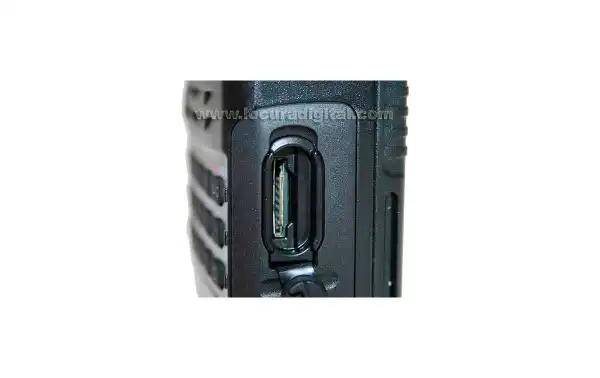

Micro SD card slot
A micro SD card slot is provided next to the radio. Backup memory, photo image data and other useful information is stored on the high capacity micro SD card (maximum 32GB). The GPS logger records the location and tracking information of your mobile station, which can later be displayed by Map software on your personal computer, using the SD card, it is also possible to clone the radio data to the other compatible radios.
24 hour clock
The FT1DR GPS receiver is used to provide highly accurate 24-hour clock for your various needs.
Password protection
Password lock function.
Improves AM Broadcast reception
An internal bar antenna ensures the reception of the AM broadcase band:
Other features
- High intensity white LED for emergency lighting - Sensor provides accurate temperature readings. - Built in On / Off Timer - Auto power off - Transmission Time - Battery saving features -
