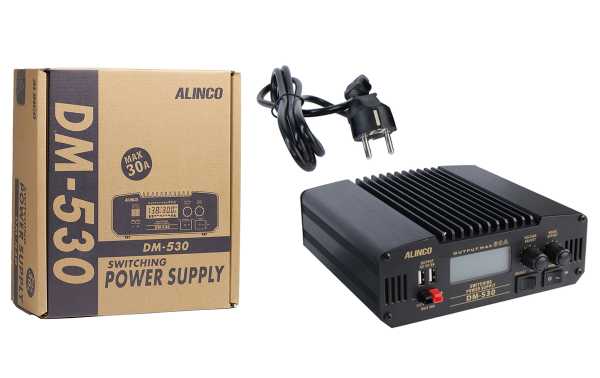

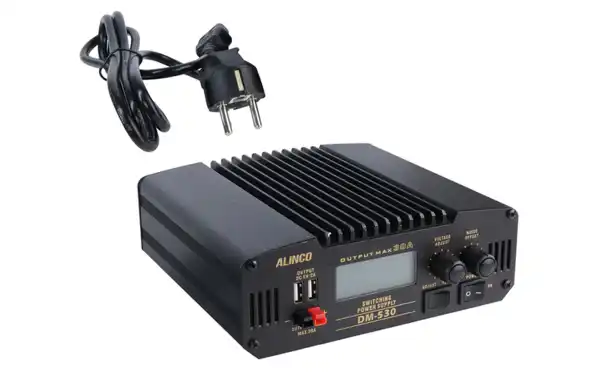

The Alinco DM-530 is a modern design switching power supply, specifically designed for amateur radio applications and other devices requiring stable and efficient power supply. Its compact design and compact size make it easy to carry and use. more Manufacturer: alinco Reference DM530E
The Alinco DM-530 is a modern switching power supply, specifically designed for amateur radio applications and other devices requiring stable and efficient power. Its compact design and adjustable DC power supply make it a versatile option for both fixed and portable stations.
One of this model's most notable features is the inclusion of a 5V DC USB port with a maximum capacity of 2A, allowing additional electronic devices to be charged without the need for external adapters. It also features Anderson connectors on the front panel, designed to provide a secure and convenient connection to devices with high current demands.
The Alinco DM-530 offers an adjustable voltage output between 5 and 15V DC, allowing the power supply to be tailored to the needs of the connected equipment. It also features a fixed 13.8V DC output mode, facilitating integration with transceivers and other radio devices that operate at this standard voltage.
Its operation is optimized thanks to a temperature-controlled fan, which activates only when necessary, reducing noise and improving the equipment's thermal efficiency. It also incorporates a noise reduction system, known as Noise Offset, which helps minimize interference in radio transmissions, which is essential for radio amateurs and operators who require a disturbance-free power supply.

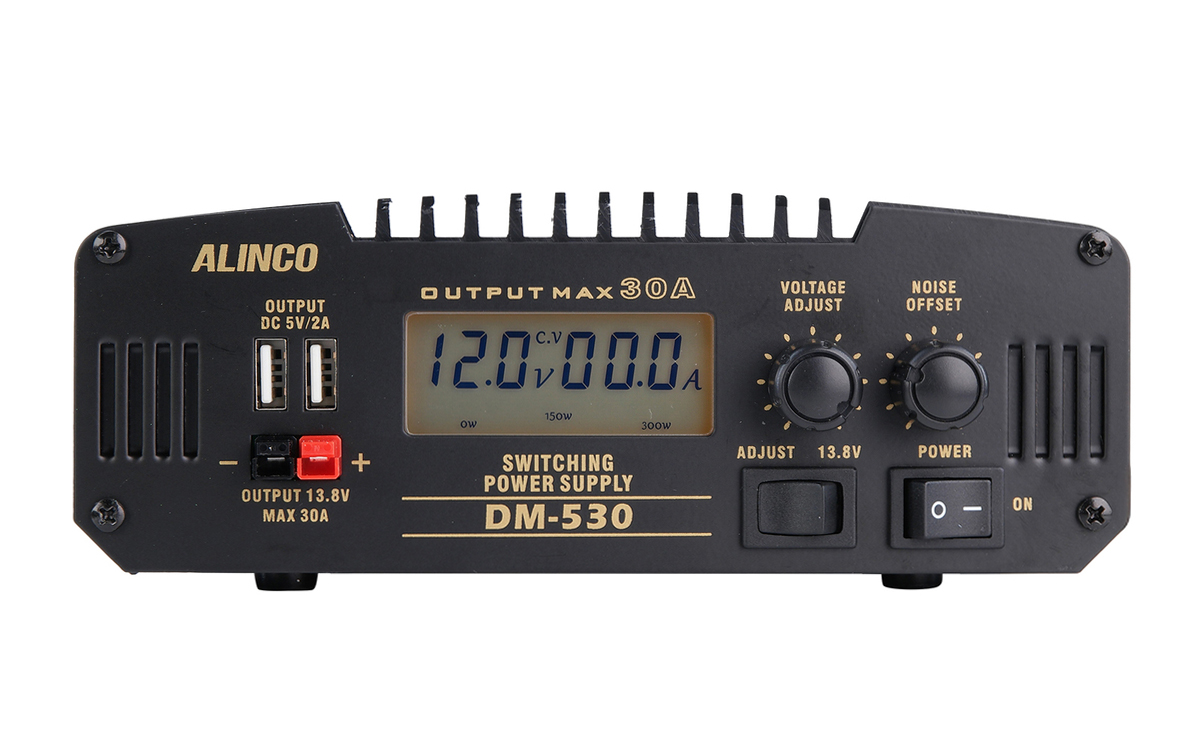

The control panel is intuitive and features an LCD display, where essential parameters such as output voltage, current supplied, and approximate DC power can be viewed in real time, allowing constant and precise monitoring of the power supply's performance.
In terms of its technical specifications, the Alinco DM-530 operates on 230V AC at 50 Hz, offering a continuous current capacity of 25A and a peak capacity of up to 30A, ideal for equipment that requires high power consumption at specific times. Its ripple and electrical noise are less than 50mVp-p under nominal load, ensuring a clean and stable output.

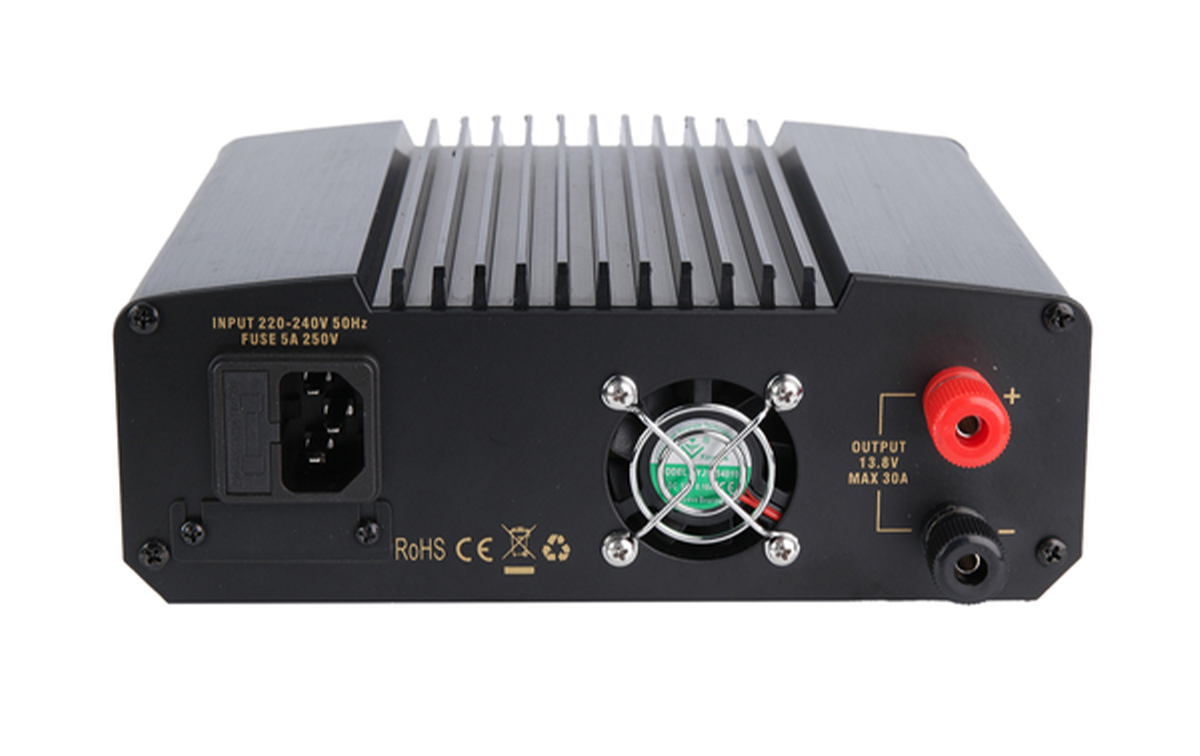

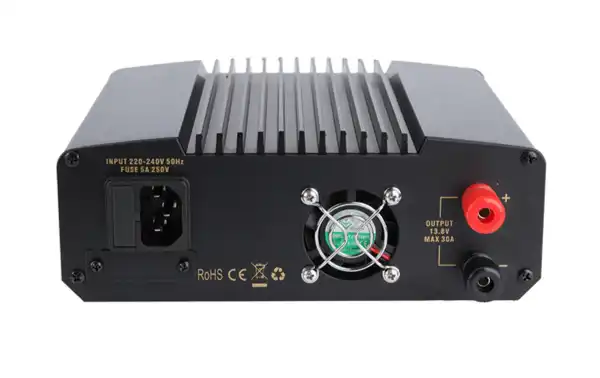

It also includes an internal 5A fuse for added safety and features a switch on the rear that allows the output voltage to be set to 13.8V DC, simplifying its use in standard amateur radio configurations.
In terms of dimensions, the device has a compact size of 190 mm wide, 69 mm high, and 181 mm deep, with an approximate weight of 2.4 kg, making it easy to transport and install in radio stations, laboratories, or any environment where a reliable and efficient power supply is required.
The Alinco DM-530 is a robust and functional power supply that stands out for its compact design, voltage adjustment, interference protection, and ease of use. Its combination of power, safety, and efficiency makes it an ideal choice for both radio amateurs and other users requiring stable, high-quality power.
