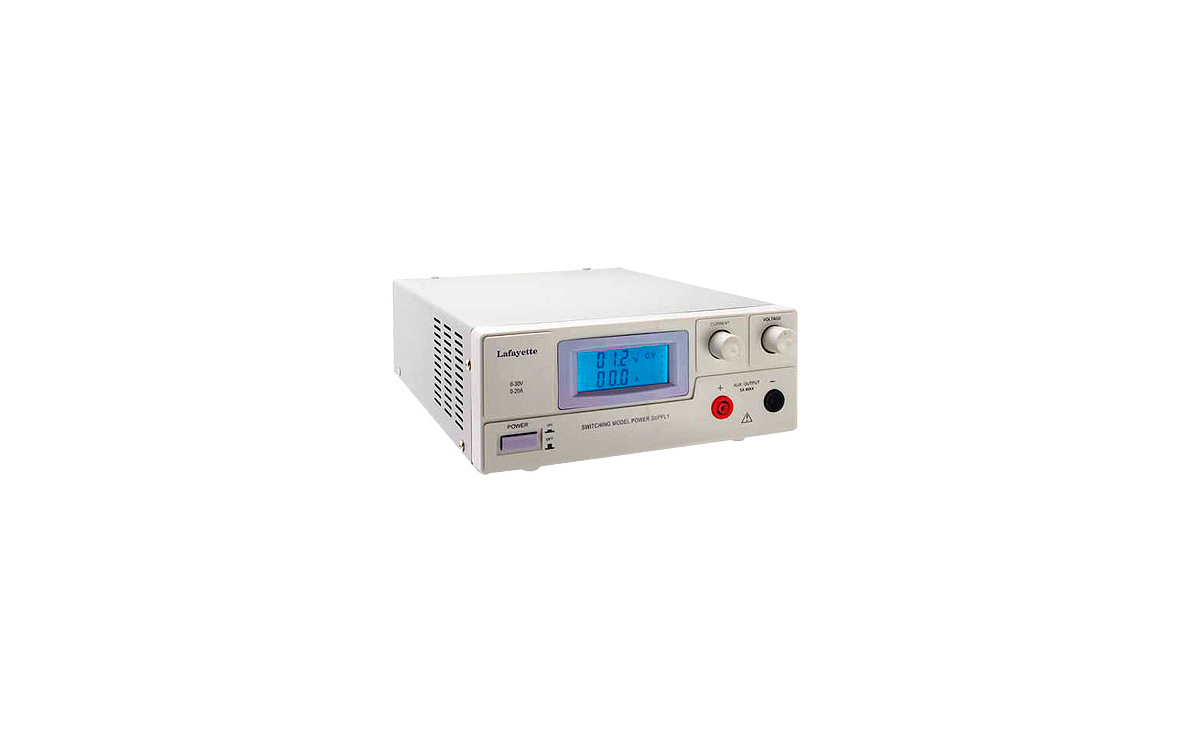

Switching Power Supply LAFAYETTE ALP20A adjustable 0-30 Volts. 0 -20 Amp

Switching Power Supply LAFAYETTE ALP20A adjustable 0-30 Volts. 0 -20 Amp more Manufacturer: lafayette Reference ALP20A EAN 8032182643333

Make the first review

lafayette
ALP20A LAFAYETTE Fuente Alimentación conmutada regulable 0 - 30 Volts. 0 -20 Amp
discontinued

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

ALP20A

ALP20A LAFAYETTE Switched Power Supply adjustable 0-30 Volts. and 0 -20 Amp

High Efficiency
Adjustable output voltage 0 ~ 30V
light and small weight
over voltage protection and temperature
High RFI stability
Protecion & Short
Low ripple and noise

Output Voltage
Variables Output voltage: 0 - 30V
Nominal output: 0 - 20A
Voltage Regulation
Load (10-100%): 50mV





ALP20A LAFAYETTE Fuente Alimentación conmutada regulable 0 - 30 Volts. 0 -20 Amp

Features

  • ALP20A LAFAYETTE adjustable switching Power Supply 0-30 Volts. 0 -20 Amp
  • Output Voltage
    Variable Output Voltage: 0 - 30V
    Nominal output: 0 - 20A
    Voltage Regulation
    Load (10-100%): 50mV
    Line (200/240 Vac): 20mV
    Power Control
    Load: 100mA
    Line (200/240 Vac): 50mA
    Ripple and Noise
    RMS Voltage: 5 mV
    peak to peak voltage: 50mV
    Switching frequency: 65 - 85Khz
    Counter type and precision
    counter Voltage: 3-digit LCD display ± 0.2% 3count
    Electricity Meter: 3-digit LCD display ± 0.2% 3count
    Input voltage: 200-240VAC 50 / 60Hz
    Protection: overload / over temperature
    Size: 336 x 87 x 214mm
    Weight: 2.9kg
