Reference EP925 | MANSON
MANSON EP-925 LINEAR source 25 to 30 amps. Dimmable 3 to 15 volts
MANSON EP-925 LINEAR 25 amp (continuous) and 30 amp (peak) power supply. Adjustable output 3 to 15 volts. With voltage and amperage measuring instruments. The main characteristic of this source is its LINEAR technology that
Make the first review NOTIFY
not available
Description MANSON EP925
MANSON EP-925

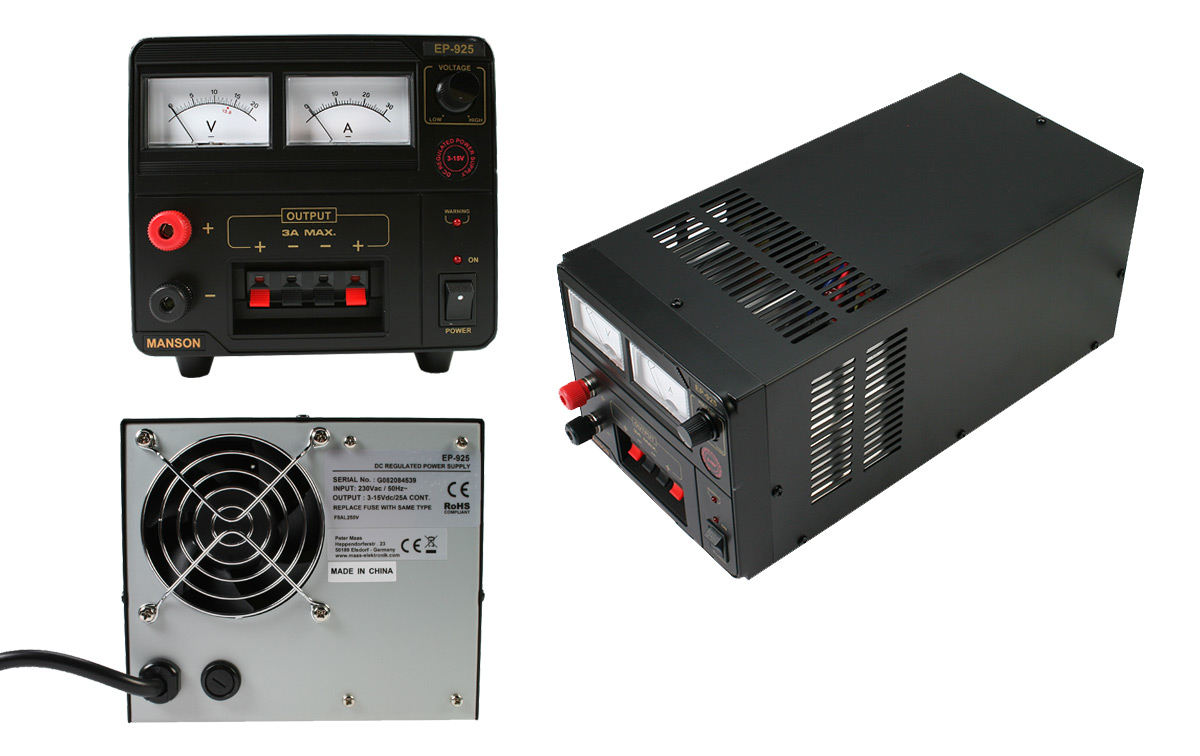

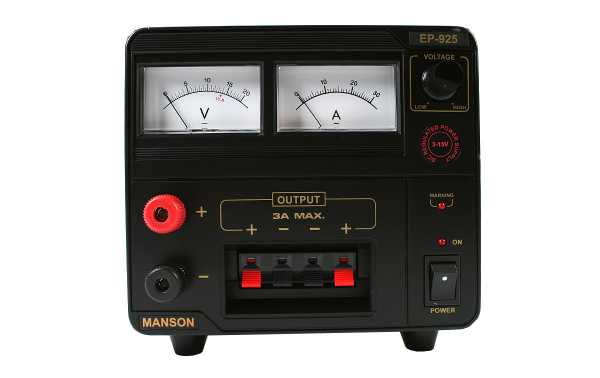

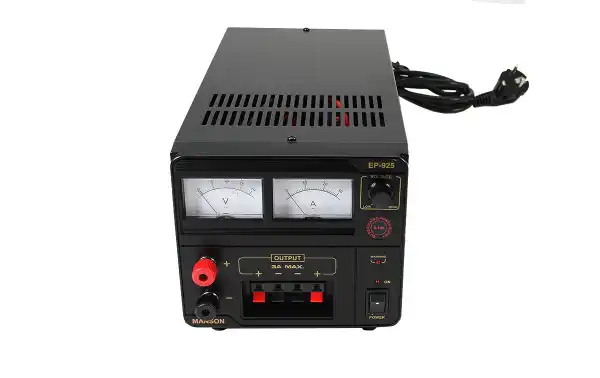

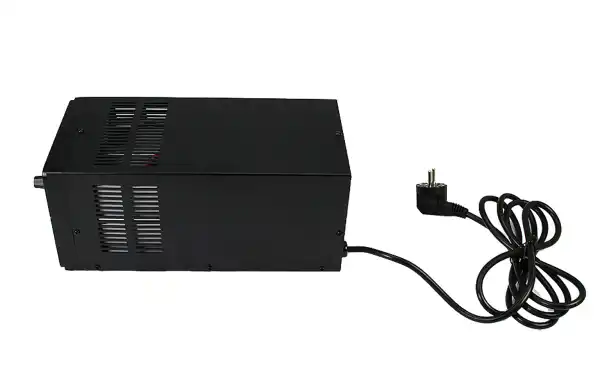

MANSON EP-925 LINEAR power supply with transformer of 25 amps (continuous) and 30 amps (peak). Adjustable output 3 to 15 volts. With voltage and amperage measuring instruments. The main characteristic of this source is its LINEAR technology that uses the traditional transformer, which greatly reduces noise compared to switched sources. This is why LINEAR power supplies are especially suitable for use with radio communication devices.

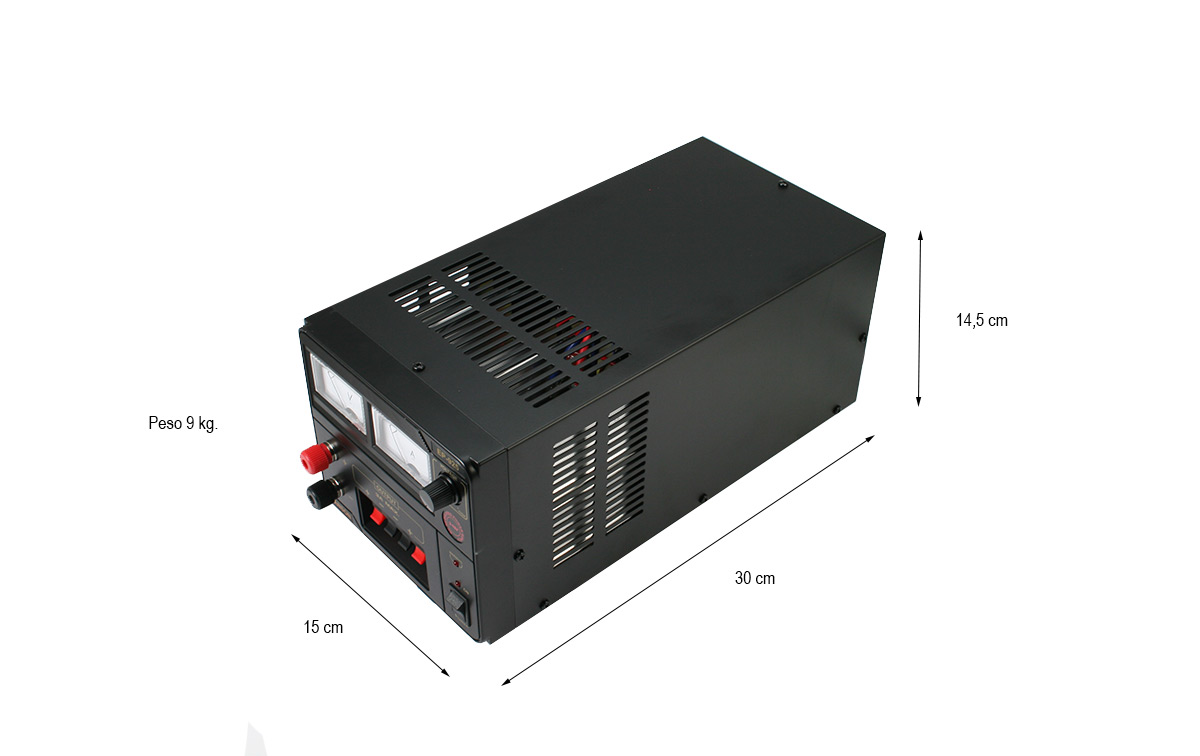

Metal box dimensions: 150 x 145 x 300 mm. Its weight is: 9 kg.
Kit contents
- 1 Power supply EP-925
- 1 English Manual
Characteristics
- Input voltage 220 volts
- Output voltage 3 to 15 volts adjustable
- 30 amp continuous amperage.
- Maximum amperage 35 amp.
- Continuous voltage 13.8 v.
- Operation indicator led
- Protection fuse 1 A.
- Analog voltage esmiter
- Analog amperage esmiter.

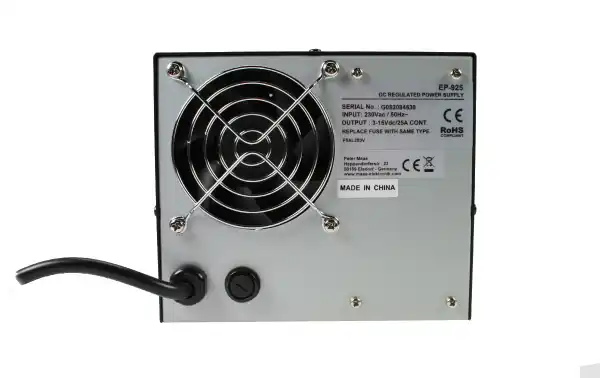

- Rear part fan (Starts when it detects excessive heat)
- Short circuit, overcurrent, overvoltage protection
- Metal housing with rubber feet.
- CE EMC certificate: EN 62368-1, EN 55014
- Dimensions 150 x 145 x 300 mm.
- Weight 9 kg.
